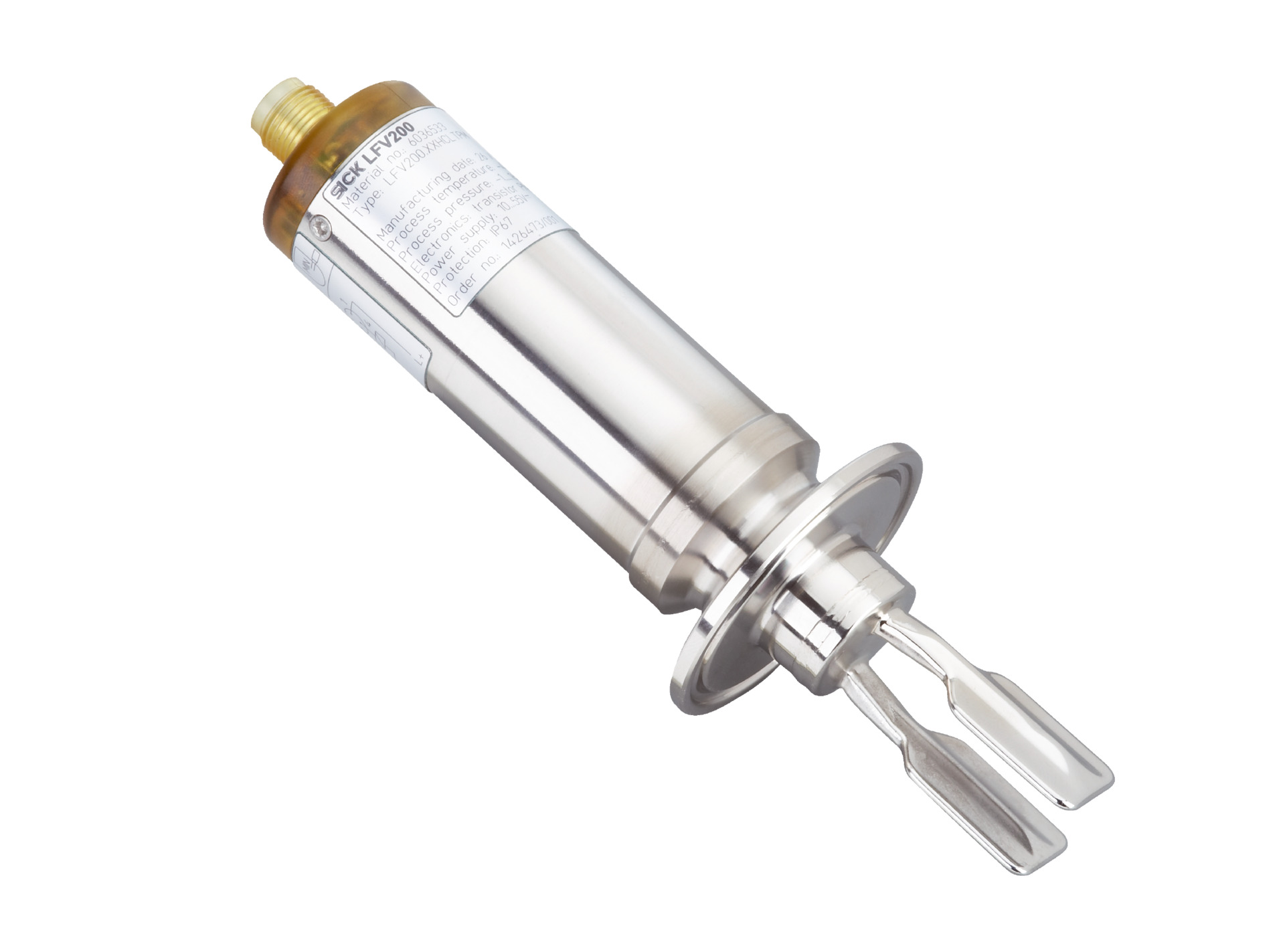

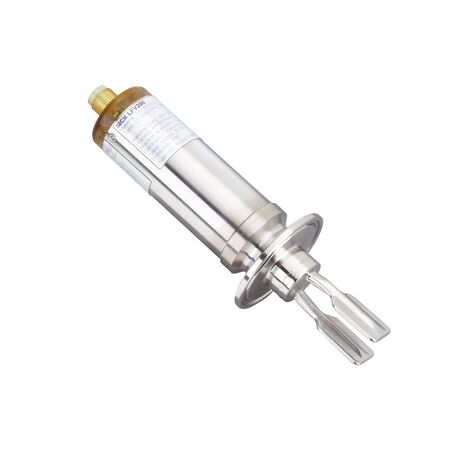

Tuning Fork Level Switch LFV200-XAHCLCPV | -1 to 64 Bar Pressure | -40°C to +150°C Temperature | IP65 Rated | by SICK
The Tuning Fork Level Switch LFV200-XAHCLCPV is designed for precise fluid level detection in industrial tanks and vessels. With a robust pressure range from -1 to 64 bar and a wide temperature range of -40°C to +150°C, this sensor ensures high accuracy with ±2 mm precision. Ideal for applications in the food and beverage industry, it features a non-contact switch output and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 10 mA
- Initialization time: < 3 s
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm)
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Non-contact switch output signal
- Stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for robust protection
- Fast response time of 500 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in food and beverage industry
- Chemical and pharmaceutical fluid monitoring
- Hygienic applications requiring food contact materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤ 10 mA supports energy efficiency
- Non-contact switching reduces wear and maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XAHCLCPV tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and hygienic applications.
