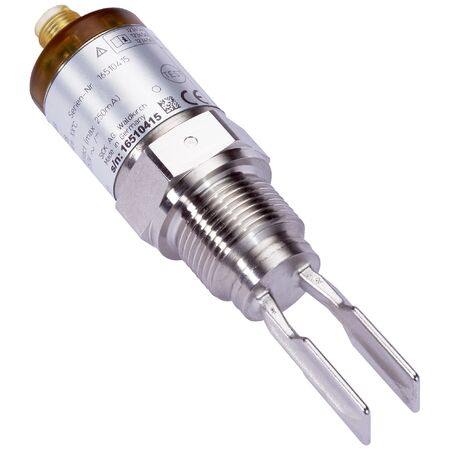

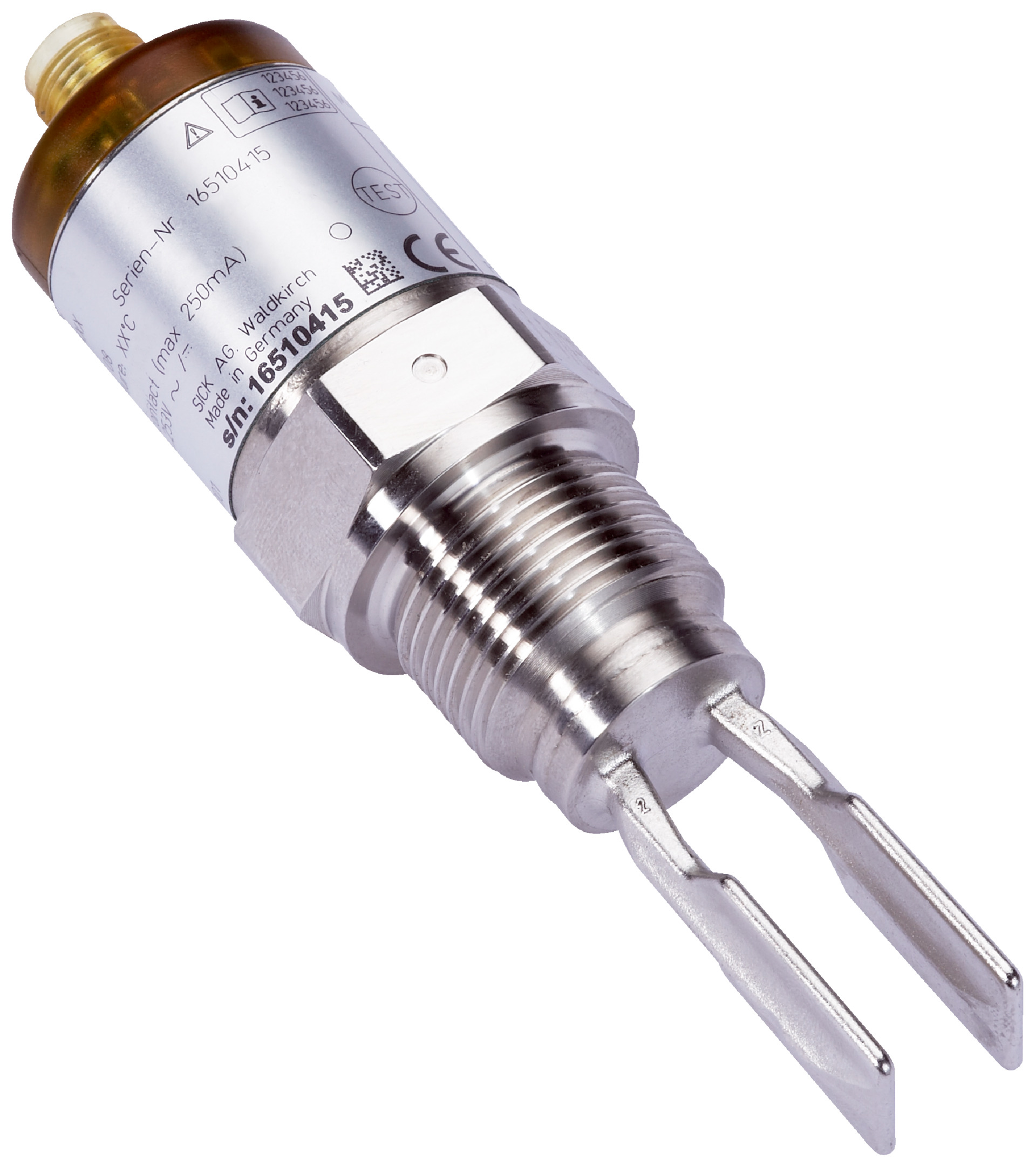

Tuning Fork Level Switch LFV200-XASGACPVL | Wide Pressure Range | High Accuracy | IP65 Rated | by SICK
The Tuning Fork Level Switch LFV200-XASGACPVL is designed for reliable fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and a high accuracy of ±2 mm, it’s perfect for monitoring liquids with varying viscosities and densities. Built with robust stainless steel and an IP65 rated enclosure, this sensor ensures durability and protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 115 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +100 °C
- Fill material density range: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- Mean time between failures (MTBF): 1.25×10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 10 mA
- Initialization time: < 3 seconds
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts material: Stainless steel 1.4404 / 316L
- Process connection: G 1 A PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 115mm x 50mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Non-contact switch output signal for reliable switching
- Wide supply voltage range from 20 V AC/DC to 253 V AC/DC
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with process instrumentation and electrical safety standards.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact switching reduces wear and extends product life, minimizing waste
- Energy-efficient operation with low power consumption (≤ 10 mA)
- Durable stainless steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XASGACPVL tuning fork level switch is available for immediate purchase, ideal for fluid level measurement in industrial and process control applications.
