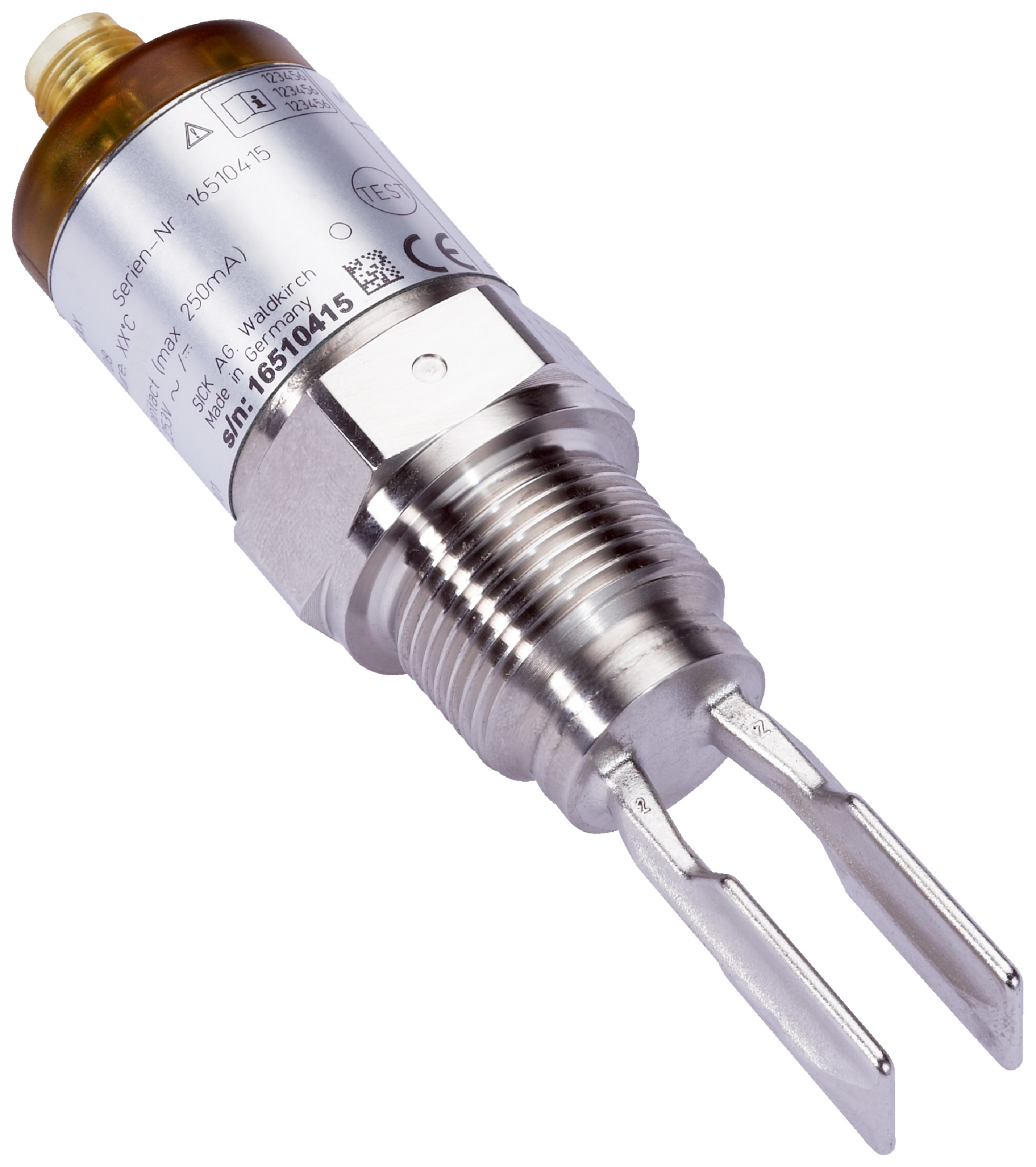

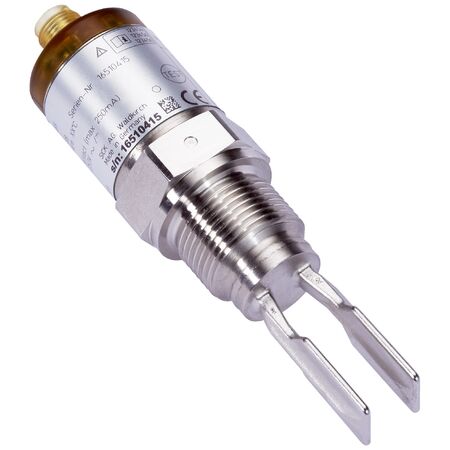

Tuning Fork Level Switch LFV200-XASGBTPV | Fluid Level Sensor | IP65 Rated | High Accuracy ±2 mm | by SICK
The Tuning Fork Level Switch LFV200-XASGBTPV is designed for precise fluid level detection in industrial applications. With a robust stainless steel construction and an IP65 rating, it operates effectively in process temperatures from -40 °C to +100 °C and pressures up to 64 bar. Ideal for chemical, food, and pharmaceutical industries, this sensor ensures reliable performance with a fast response time of 500 ms and high accuracy of ±2 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +100 °C
- Fill material density range: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- Mean time between failures (MTBF): 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Power consumption: ≤10 mA
- Output signal: Transistor output PNP
- Output current: <250 mA
- Enclosure rating: IP65
- Connection type: Valve plug DIN 43650
- Temperature drift: 0.03 mm/K
- Wetted parts material: Stainless steel 1.4404 / 316L
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for process pressures from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Valve plug DIN 43650 connection with transistor output PNP
- Wide supply voltage range from 9.6 V DC to 35 V DC
- Certified with EU, UK, ACMA declarations and WHG approval
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level measurement devices and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤10 mA supports energy-efficient operation
- Reliable measurement reduces process waste and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XASGBTPV tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
