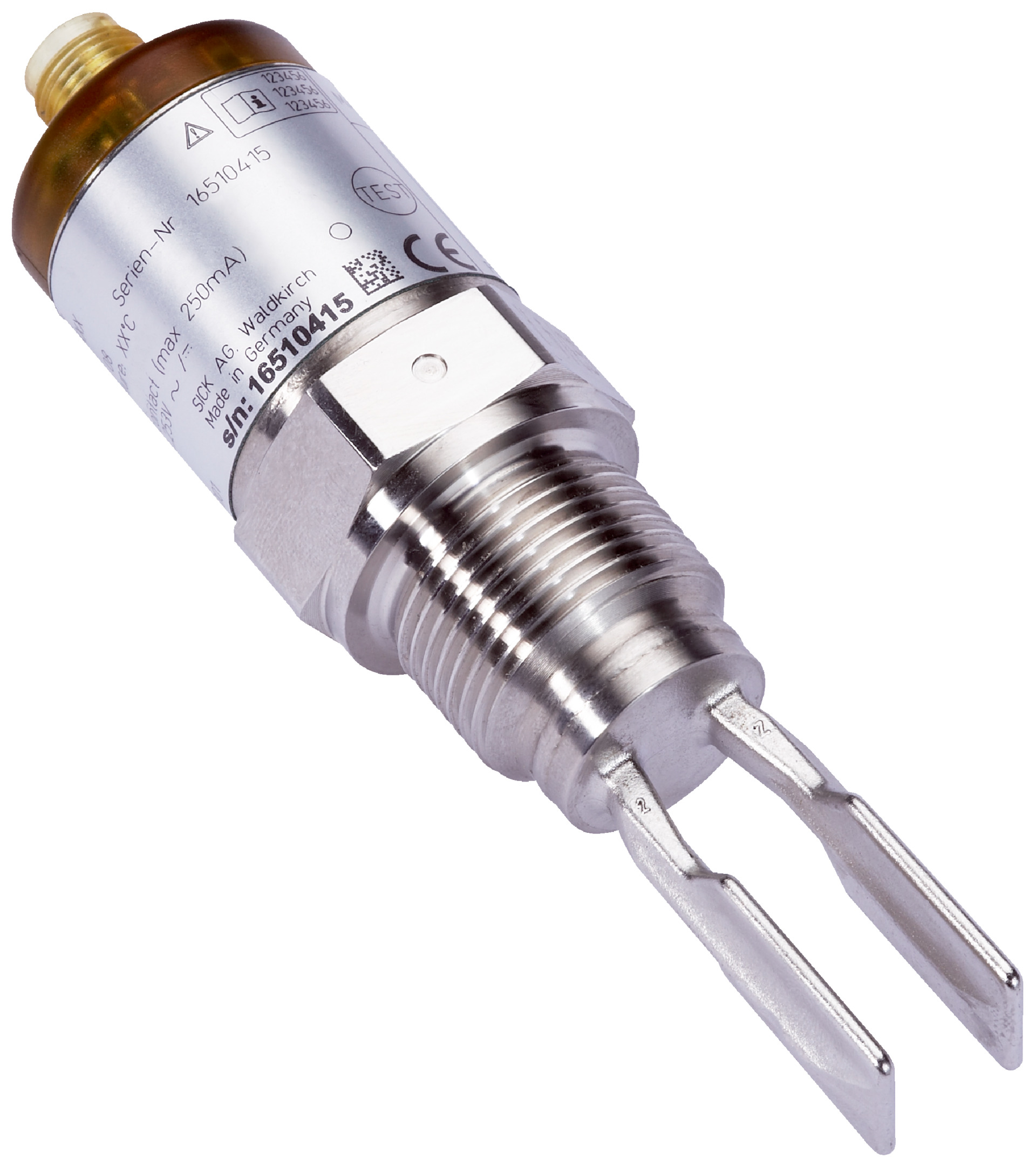

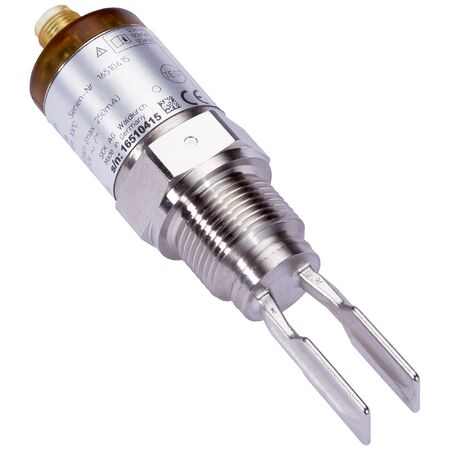

Tuning Fork Level Switch LFV200-XXTGBCPV | IP65 Rated | -40°C to +150°C | Non-Contact Switch | by SICK
The Tuning Fork Level Switch LFV200-XXTGBCPV is designed for reliable fluid level measurement in industrial applications. With a wide process temperature range from -40°C to +150°C and an IP65 rated enclosure, it ensures durability and protection against dust and water. Ideal for chemical, food, and pharmaceutical industries, this sensor offers high accuracy with ±2 mm precision and a fast response time of 500 ms, making it perfect for monitoring liquids with varying viscosities and densities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +150 °C
- Fill material density range: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤10 mA
- Initialization time: <3 s
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Connection type: Valve plug DIN 43650
- Wetted parts material: Stainless steel 1.4404 / 316L
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for process pressures from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Non-contact switch output signal for easy integration
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Fast response time of 500 ms
- Low power consumption ≤ 10 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical safety standards.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination risk and material waste
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXTGBCPV tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and process applications.
