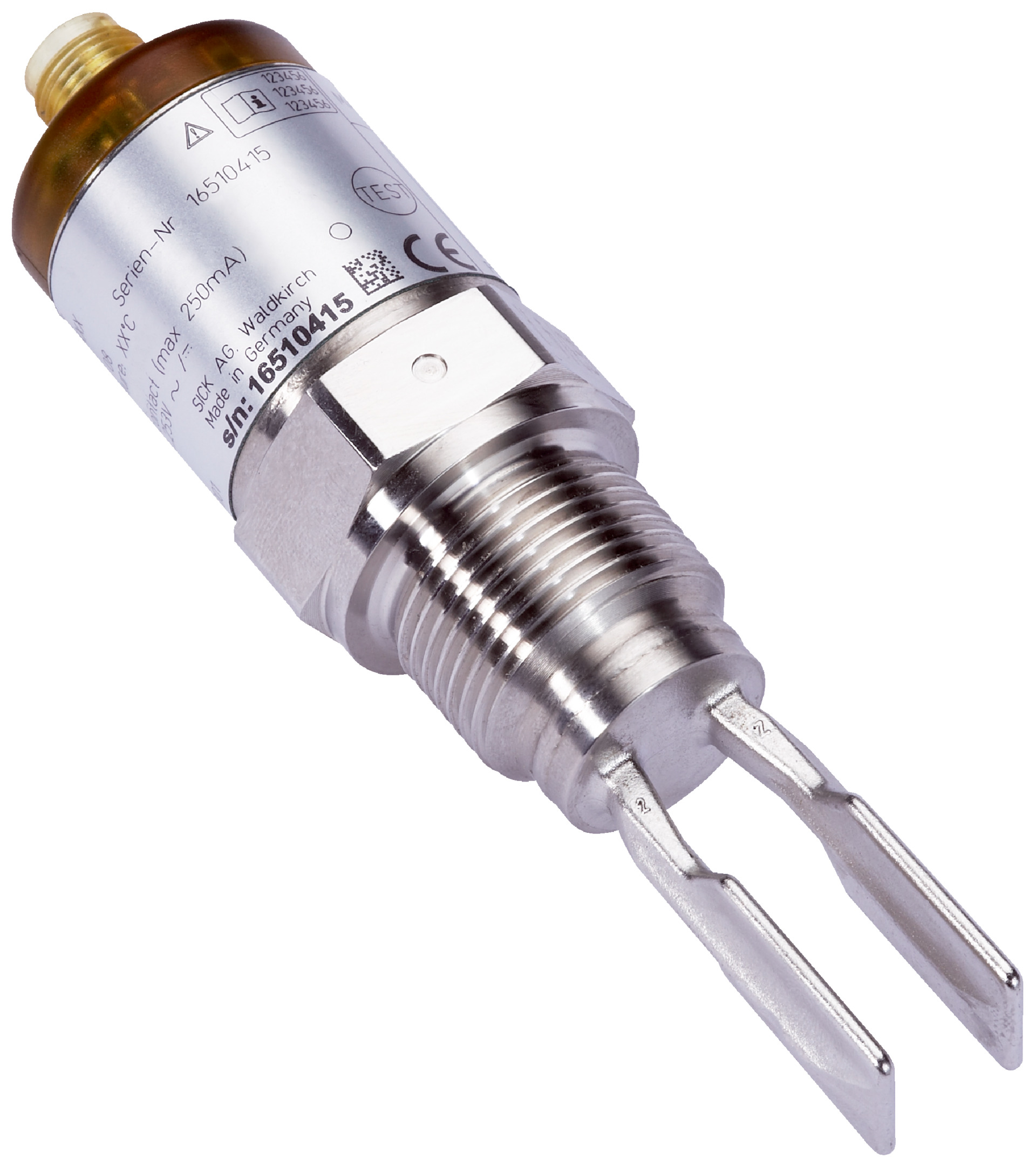

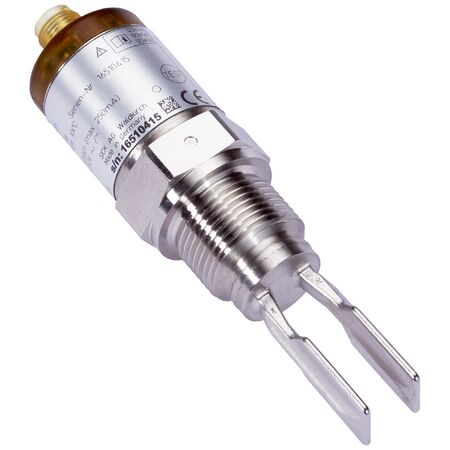

Tuning Fork Level Switch LFV200-XXTGBIPM | IP67 Rated | -40°C to +150°C | ±2 mm Accuracy | by SICK
The Tuning Fork Level Switch LFV200-XXTGBIPM is designed for precise fluid level detection in industrial applications. With a robust stainless steel construction and an operating temperature range of -40°C to +150°C, it ensures reliable performance in harsh environments. Ideal for monitoring liquids with varying viscosities and densities, this sensor features a fast response time of 500 ms and an IO-Link communication interface for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement Type: Switch
- Probe Length: 67 mm
- Process Pressure: -1 bar to 64 bar
- Process Temperature: -40 °C to +150 °C
- Fill Material Density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity Range: 0.1 mPas to 10,000 mPas
- Response Time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Communication Interface: IO-Link
- Supply Voltage: 18 V DC to 30 V DC
- Power Consumption: ≤4.2 mA
- Output Signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output Current: <250 mA
- Enclosure Rating: IP67
- Connection Type: M12 round connector, 4-pin
- Wetted Parts Material: Stainless steel 1.4404 / 316L
- Housing Material: Stainless steel 1.4404 / 316L, PEI
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type with 67 mm probe length
- Suitable for fluids with fill material density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element accuracy and ≤1 mm reproducibility
- Fast response time of 500 ms
- IO-Link communication interface with transistor output PNP
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- VDE protection class 2 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and IO-Link communication protocols to ensure proper integration and safety.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤4.2 mA supports energy-efficient operation
- Compliance with China-RoHS and EU environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXTGBIPM tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and process control applications.
