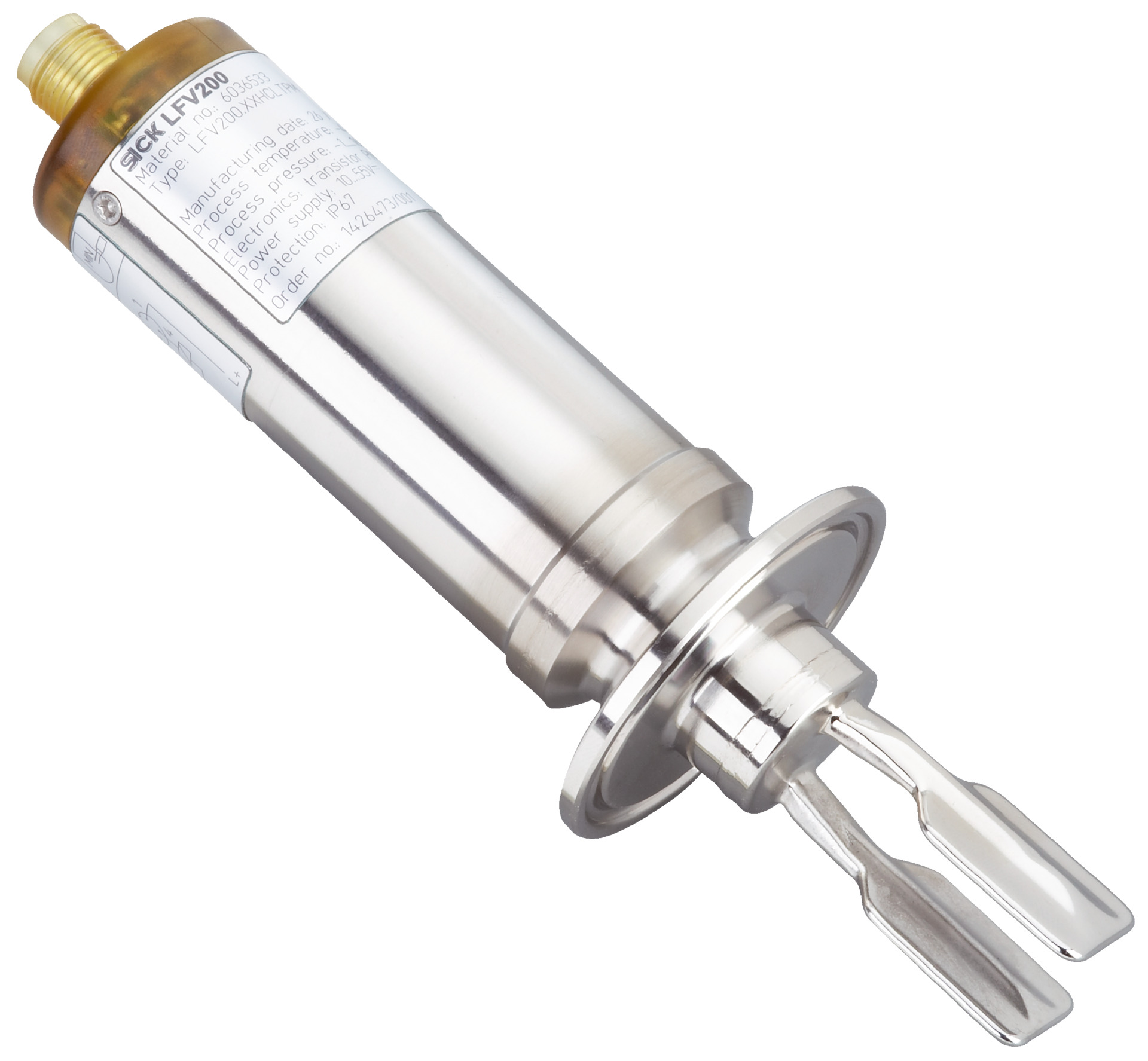

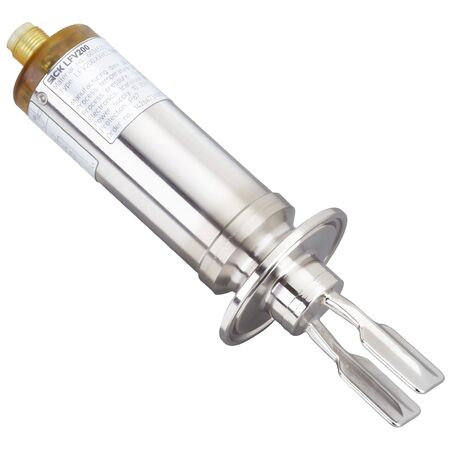

Tuning Fork Level Switch LFV200-XXHCLIPM | -1 to 64 Bar Pressure | -40°C to +150°C Temperature | IP67 Rated | by SICK
The Tuning Fork Level Switch LFV200-XXHCLIPM is designed for reliable fluid level measurement in industrial applications. With a robust stainless steel construction and a wide process temperature range from -40°C to +150°C, it ensures high accuracy and fast response times. Ideal for monitoring liquids with varying viscosities, this sensor is perfect for chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤4.2 mA
- Initialization time: <2 s
- VDE protection class 1
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm)
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for process pressures from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- IO-Link communication interface for easy integration
- Food contact material certified and EHEDG approved
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤4.2 mA supports energy-efficient operation
- Food contact certification ensures safe use in hygienic environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXHCLIPM tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and hygienic process applications.
