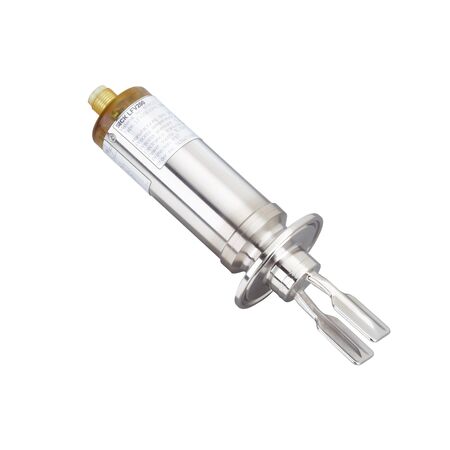

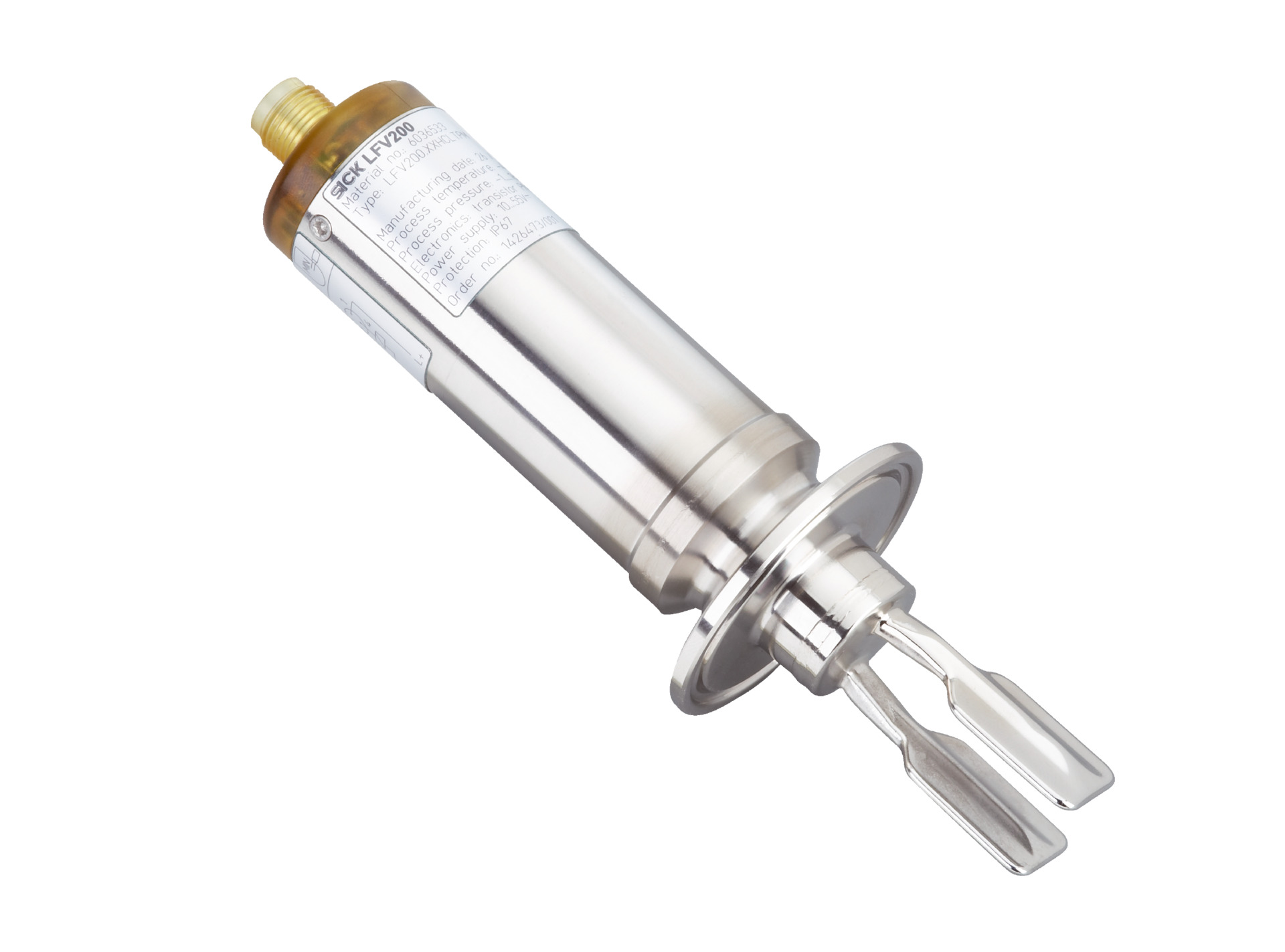

Tuning Fork Level Switch LFV200-XXHCLTPM | IP67 Rated | -40°C to +150°C | 67 mm Probe Length | by SICK
The Tuning Fork Level Switch LFV200-XXHCLTPM is designed for precise fluid level detection in tanks and vessels, operating effectively in temperatures from -40°C to +150°C. With a robust stainless steel construction and an IP67 rating, it ensures durability and reliability in harsh environments. Ideal for chemical, food, and pharmaceutical industries, this level switch offers high accuracy and fast response times for efficient process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Power consumption: ≤10 mA
- Output signal: Transistor output PNP
- Output current: <250 mA
- Enclosure rating: IP67
- Connection type: M12 round connector, 4-pin
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Triclamp 1'' (PN 16, 316L, Ra<0.8μm)
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type with 67 mm probe length
- Suitable for fluids with fill material density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element accuracy and ≤1 mm reproducibility
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- Transistor output PNP with output current < 250 mA
- M12 round connector, 4-pin connection type
- VDE protection class 2 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤10 mA supports energy-efficient operation
- Non-invasive measurement reduces risk of leaks and contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXHCLTPM tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and process applications.
