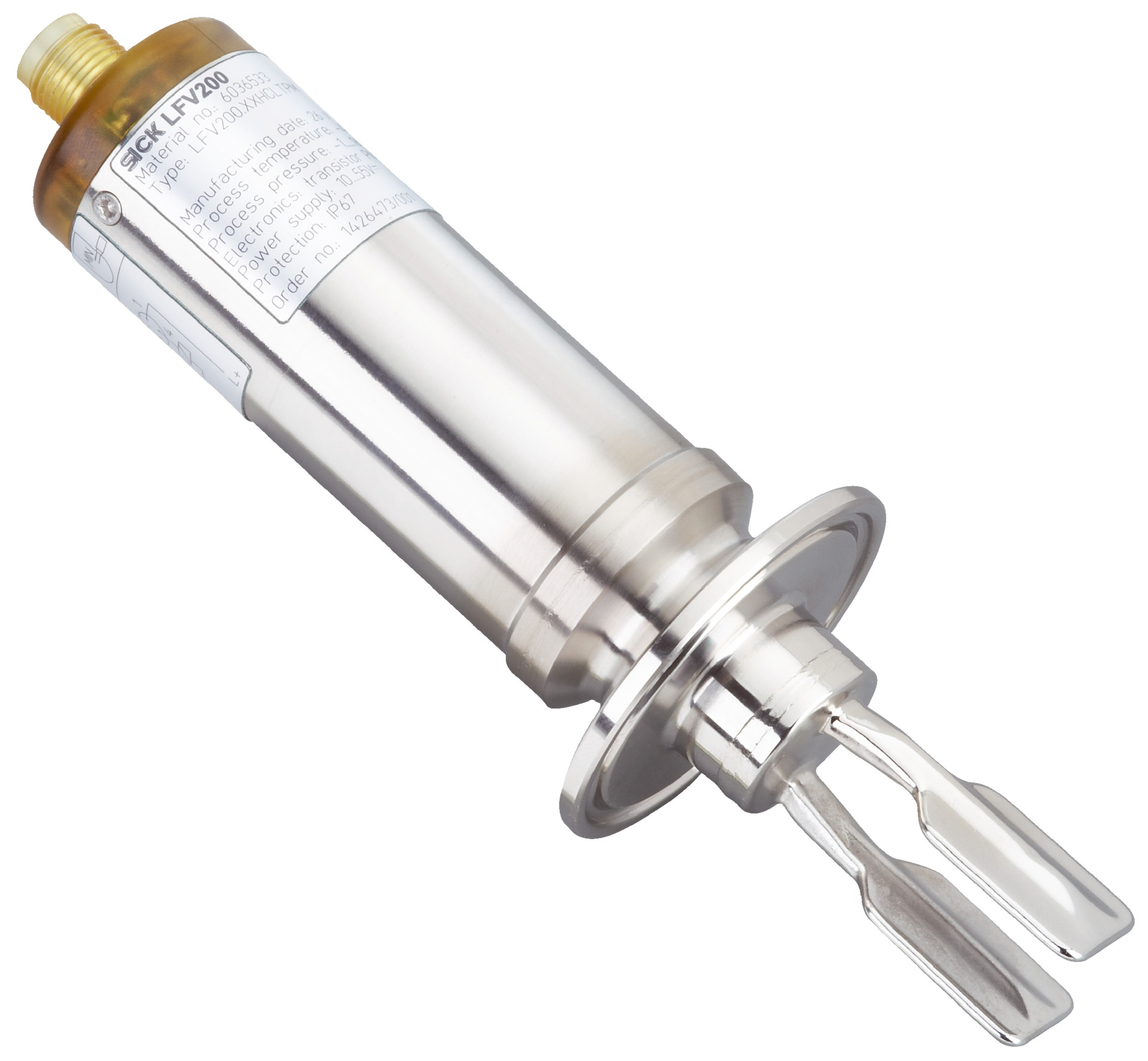

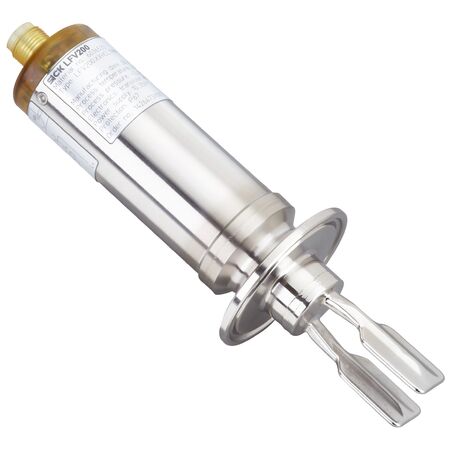

Tuning Fork Level Switch LFV200-XXHLAIPM | Wide Pressure Range | High Accuracy | IP67 Rated | by SICK
The Tuning Fork Level Switch LFV200-XXHLAIPM is designed for reliable fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and a high accuracy of ±2 mm, it’s perfect for monitoring liquids with varying viscosities and densities. Built for durability with stainless steel construction and an IP67 rated enclosure, this sensor ensures robust performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 12,500,000 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤4.2 mA
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Enclosure rating: IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Aseptic connection with grooved cap nut, F 40, DN 25, 316L, Ra < 0.8 µm
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- IP67 rated enclosure for robust protection
- Stainless steel wetted parts and housing for corrosion resistance
- Communication via IO-Link interface
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with process instrumentation and IO-Link communication standards.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤4.2 mA supports energy efficiency
- Compliance with EU and UK RoHS directives ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LFV200-XXHLAIPM tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and process applications.
