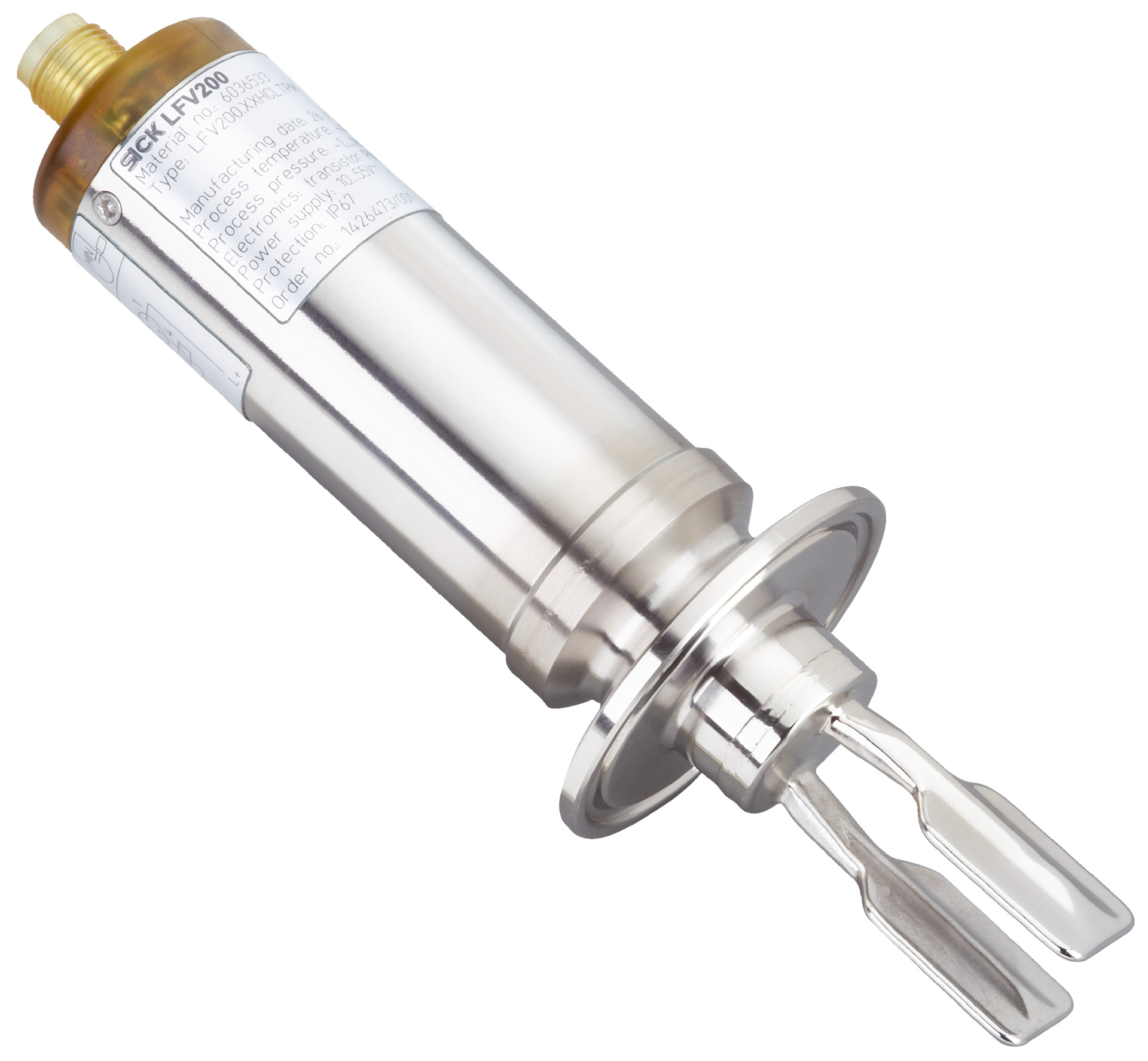

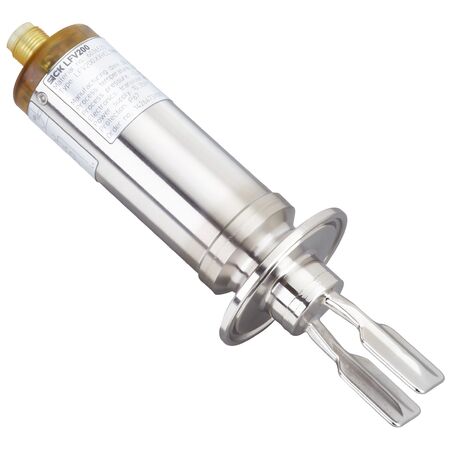

Tuning Fork Level Switch LFV200-XXHRLIPM | Wide Pressure Range | IP67 Rated | High Accuracy | by SICK
The Tuning Fork Level Switch LFV200-XXHRLIPM is designed for precise fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and operating temperatures from -40 °C to +150 °C, it ensures reliable performance. Its robust stainless steel construction and IP67 rating make it ideal for harsh environments, while the fast response time of 500 ms enhances process control in various industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤4.2 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Conical coupling DN 25 acc. to DIN 11851 with Union nut (PN 40, 316L, Ra < 0.8µm)
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 100mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- Communication via IO-Link interface for easy integration
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial fluid measurement devices and IO-Link communication standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤4.2 mA supports energy-efficient operation
- Compliance with EU and UK RoHS directives ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXHRLIPM tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring and process control applications.
