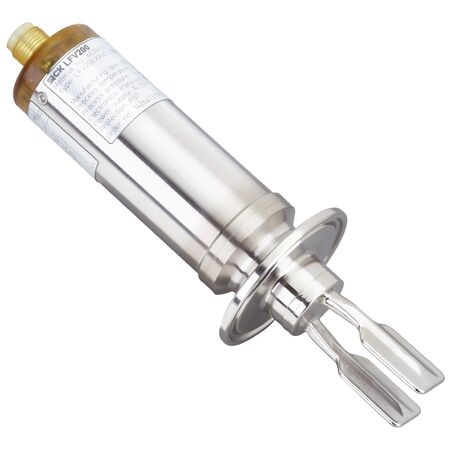

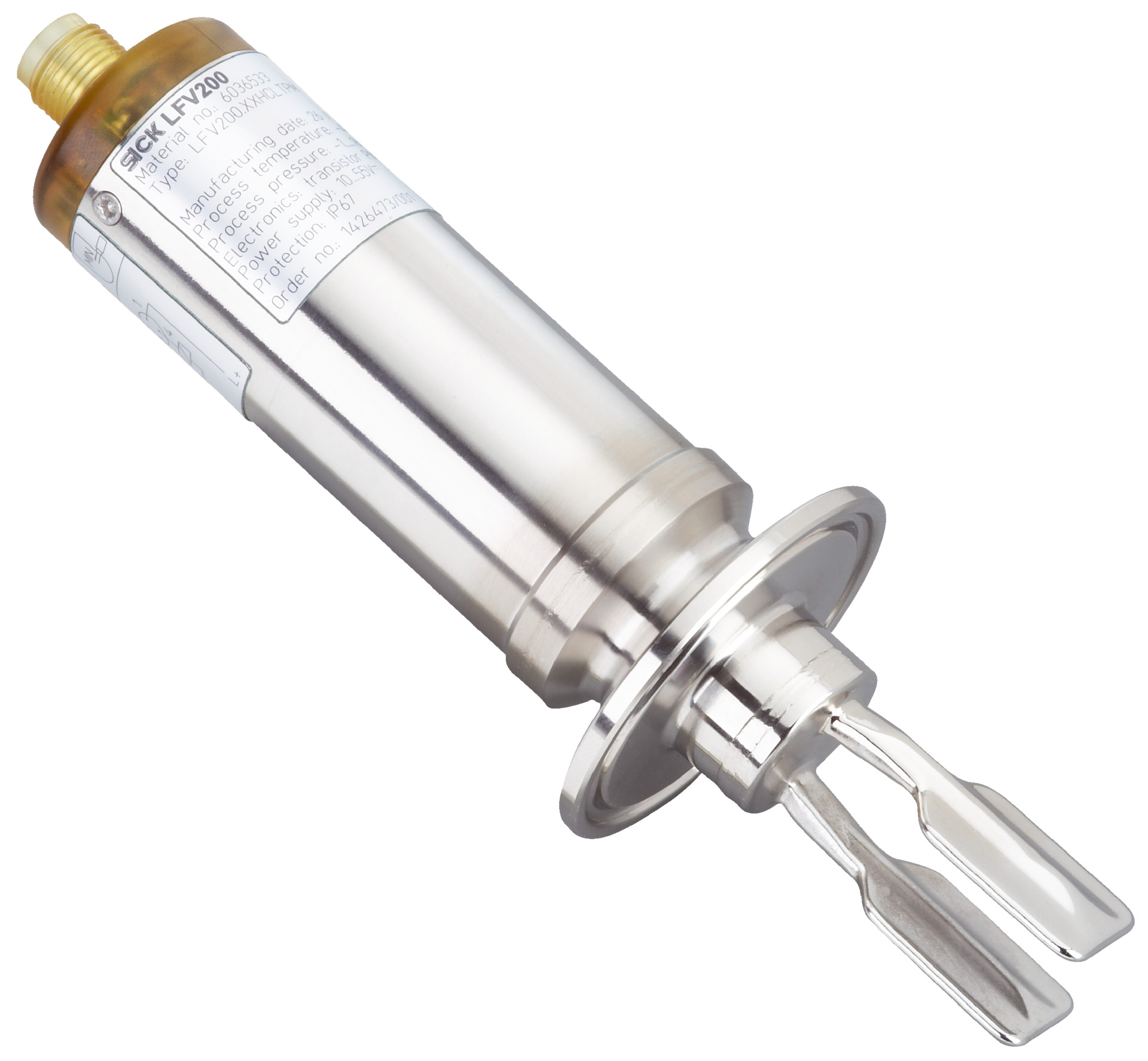

Tuning Fork Level Switch LFV200-XXHRNIPM | Wide Pressure Range | High Accuracy | IP67 Rated | by SICK
The Tuning Fork Level Switch LFV200-XXHRNIPM is designed for reliable fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and operating temperatures from -40 °C to +150 °C, it ensures high accuracy with ±2 mm precision. Ideal for chemical, food, and pharmaceutical industries, this sensor features robust stainless steel construction and an IP67 rated enclosure for durability and protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤4.2 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Conical coupling DN 50 acc. to DIN 11851 with Union nut (PN 40, 316L, Ra < 0.8µm)
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 67mm x 50mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- IO-Link communication interface for easy integration
- VDE protection class 1 certified
- Hysteresis of 2 mm for stable switching
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections, ensuring compliance with safety standards.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤4.2 mA supports energy efficiency
- Compliance with China-RoHS and food contact material declarations ensures environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXHRNIPM tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and process applications.
