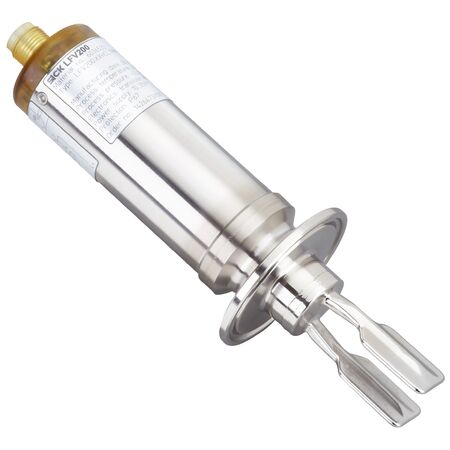

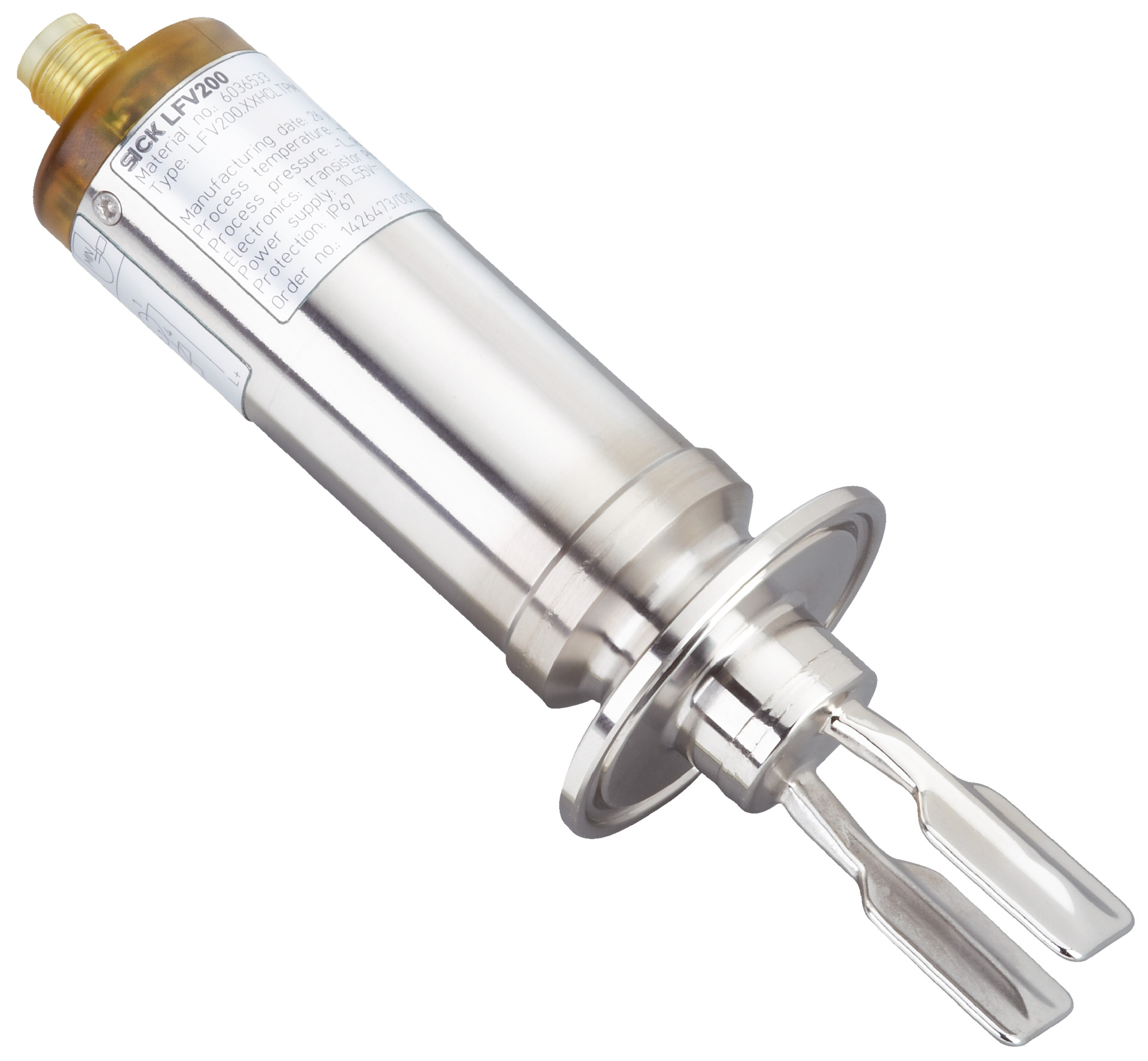

Tuning Fork Level Switch LFV200-XXHRRIPM | Wide Pressure Range | High Accuracy | IP67 Rated | by SICK
The Tuning Fork Level Switch LFV200-XXHRRIPM is designed for reliable fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and a high accuracy of ±2 mm, it’s perfect for monitoring liquids in tanks and vessels. Built with robust stainless steel and an IP67 rated enclosure, this sensor ensures durability and protection against dust and water, making it ideal for chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +150 °C
- Fill material density range: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤4.2 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts material: Stainless steel 1.4404 / 316L
- Process connection: SMS DN 38 (PN 6, 316L, Ra < 0.8 µm)
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 67mm x 100mm x 38mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP67 rated enclosure for protection against dust and water
- IO-Link communication interface for easy integration
- Suitable for fluids with viscosities from 0.1 mPas to 10,000 mPas
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with process instrumentation and IO-Link communication standards.
Applications
- Fluid level detection in industrial tanks and vessels
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption of ≤4.2 mA supports energy efficiency
- Compliance with EU and UK RoHS directives ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXHRRIPM tuning fork level switch is available for immediate purchase, ideal for fluid level measurement in industrial process control applications.
