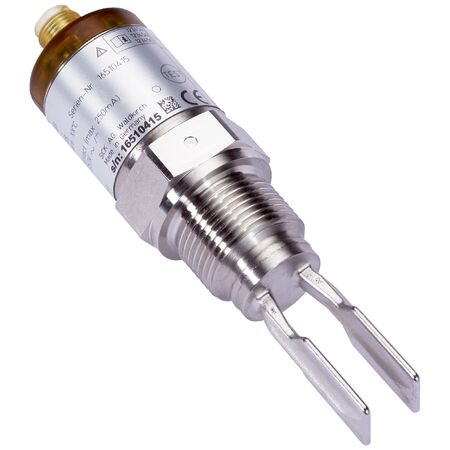

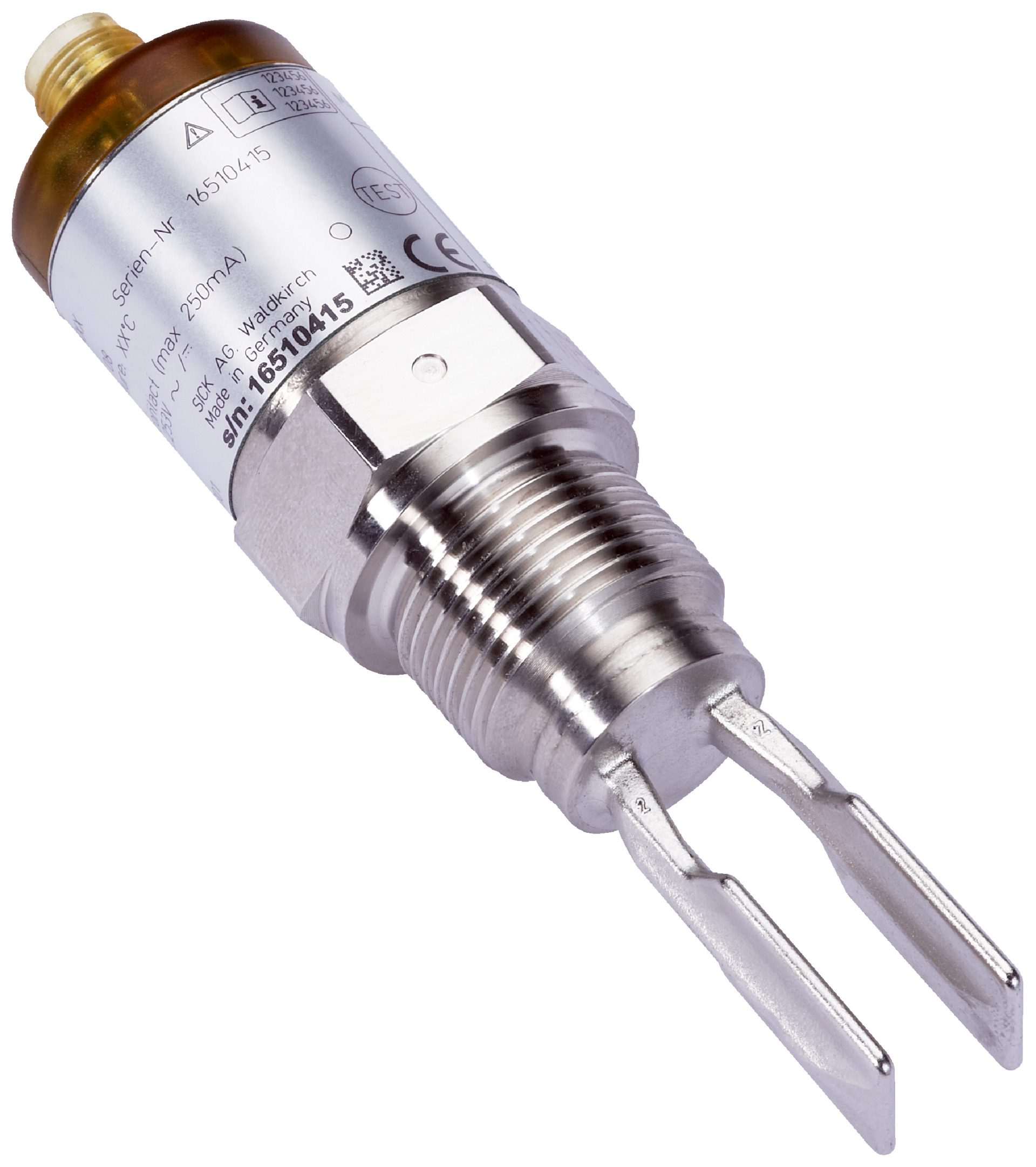

Tuning Fork Level Switch LFV200-XXSGATPVL | Wide Pressure Range | High Accuracy | IP65 Rated | by SICK
The Tuning Fork Level Switch LFV200-XXSGATPVL is designed for reliable fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and an impressive accuracy of ±2 mm, it ensures precise monitoring of liquids with varying viscosities. Built with robust stainless steel and an IP65 rated enclosure, this level switch is perfect for chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 115 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Power consumption: ≤10 mA
- Output signal: Transistor output PNP
- Output current: <250 mA
- Enclosure rating: IP65
- Connection type: Valve plug DIN 43650
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 150mm x 115mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Valve plug DIN 43650 connection with transistor output PNP
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤10 mA supports energy-efficient operation
- Reliable measurement reduces process waste and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFV200-XXSGATPVL tuning fork level switch is available for immediate purchase, ideal for fluid level monitoring in industrial and process applications.
