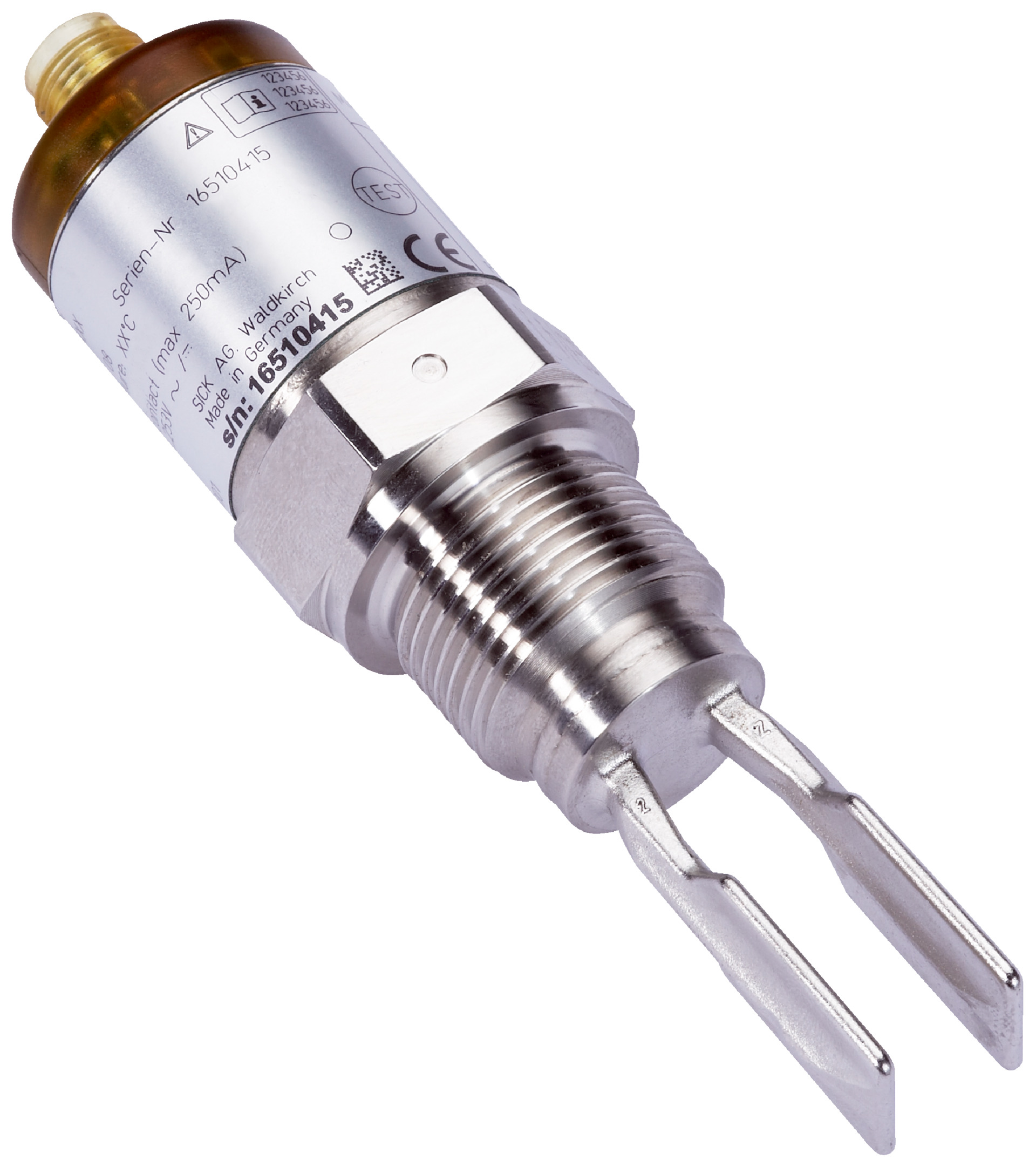

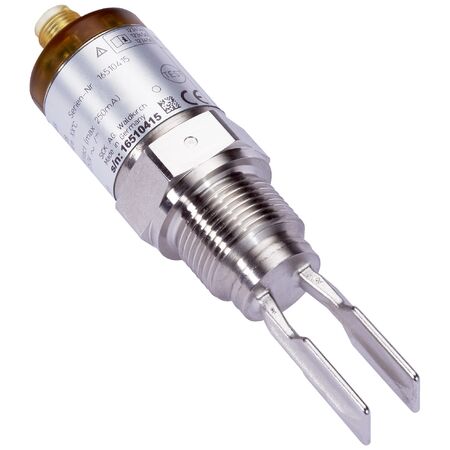

Tuning Fork Level Switch LFV200-XXSNBCPV | IP65 Rated | -40°C to +100°C | Non-Contact Switch | by SICK
The Tuning Fork Level Switch LFV200-XXSNBCPV is designed for reliable fluid level measurement in industrial applications. With a wide process pressure range from -1 bar to 64 bar and an operating temperature of -40°C to +100°C, it’s perfect for monitoring various liquids. Its robust stainless steel construction and IP65 rating ensure durability and protection against dust and water, making it ideal for chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Response time: 500 ms
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 10 mA
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Enclosure rating: IP65
- Connection type: Valve plug DIN 43650
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Dimensions (H x L x W): 150mm x 67mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- Non-contact switch output signal for easy integration
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Fast response time of 500 ms with high accuracy and reproducibility
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, food, and pharmaceutical industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces wear and contamination risk
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption of ≤ 10 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFV200-XXSNBCPV tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
