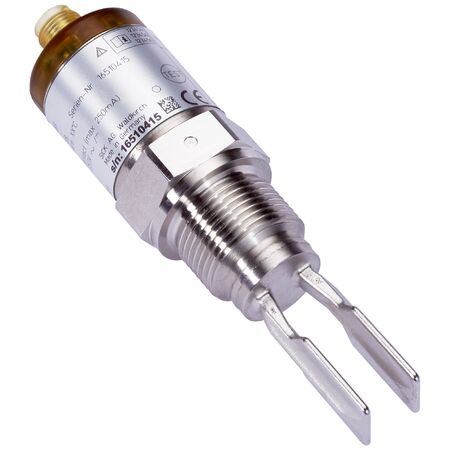

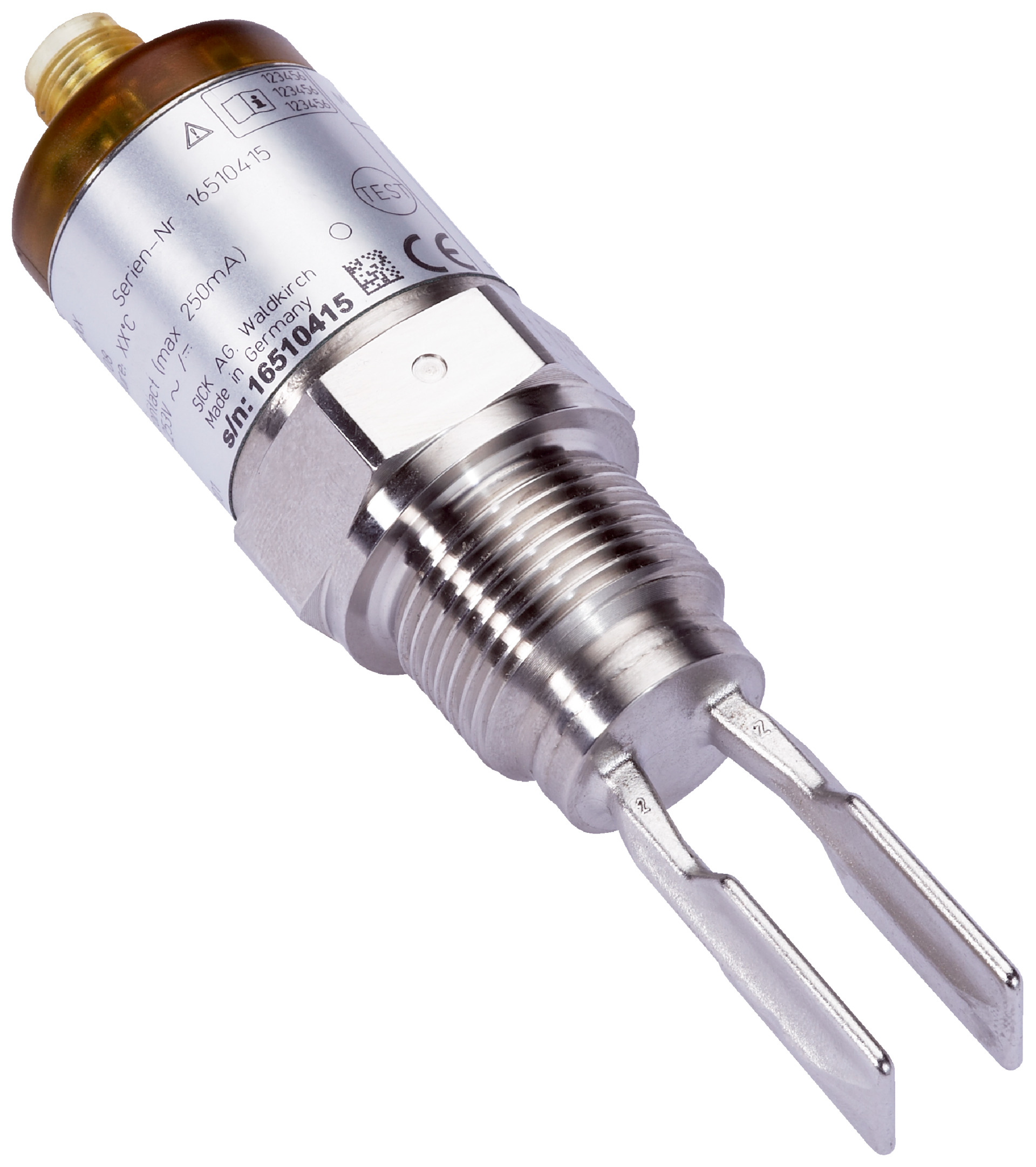

Tuning Fork Level Switch LFV200-XXSR3CPV | Fluid Level Sensor | IP65 Rated | Stainless Steel Housing | by SICK
The Tuning Fork Level Switch LFV200-XXSR3CPV is designed for precise fluid level measurement, featuring a robust stainless steel construction and an IP65 rated enclosure. With a wide process temperature range from -40 °C to +100 °C and a pressure range of -1 bar to 64 bar, it's perfect for industrial applications in chemical and food industries, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 10 mA
- Initialization time: < 3 s
- VDE protection class 1
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: R ¾, EN 10226-1 PN 64 / 316L
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 67mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for fluids with density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +100 °C
- Non-contact switch output signal
- High accuracy with ±2 mm sensor element accuracy
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with fluid level measurement devices and electrical safety standards.
Applications
- Fluid level detection in tanks and containers
- Industrial process control for liquids
- Monitoring fluid levels in chemical and food industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and contamination risk
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 10 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XXSR3CPV tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
