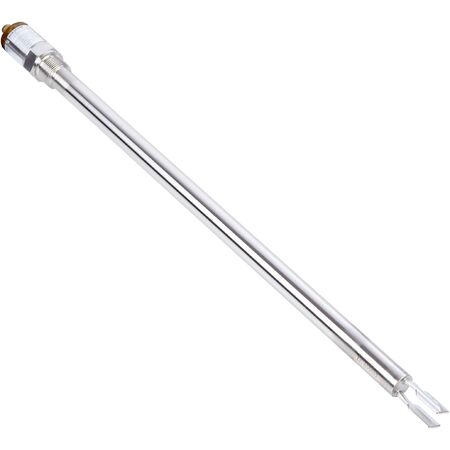

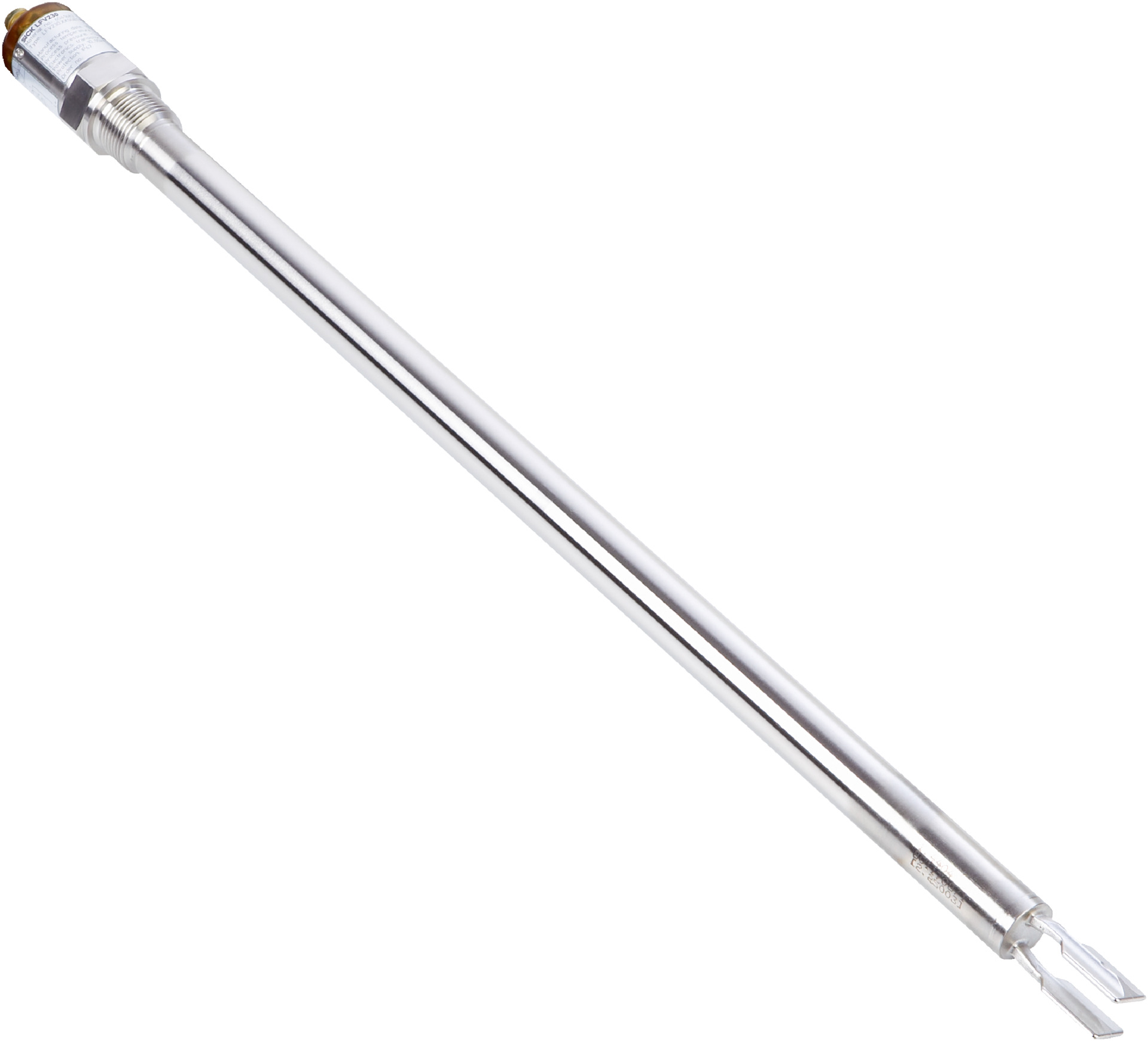

Tuning Fork Level Switch LFV230-XXSGAIPM0128 | -1 to 64 Bar Pressure | -40°C to +100°C Temperature | IP67 Rated | by SICK
The Tuning Fork Level Switch LFV230-XXSGAIPM0128 is designed for precise fluid level measurement in industrial applications. With a wide process pressure range from -1 to 64 bar and operating temperatures from -40°C to +100°C, it ensures reliable performance. Built with robust stainless steel wetted parts and an IP67 rated enclosure, this sensor is perfect for chemical, pharmaceutical, and food industries, providing accurate readings and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 128 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 A PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 128mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel 1.4404 / 316L wetted parts
- IP67 rated enclosure for protection against dust and water
- IO-Link communication interface for easy integration
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial fluid measurement systems to ensure proper setup and safety compliance.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, pharmaceutical, and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤10 mA supports energy-efficient operation
- Accurate measurement reduces process waste and improves resource management
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XXSGAIPM0128 tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring and process control applications.
