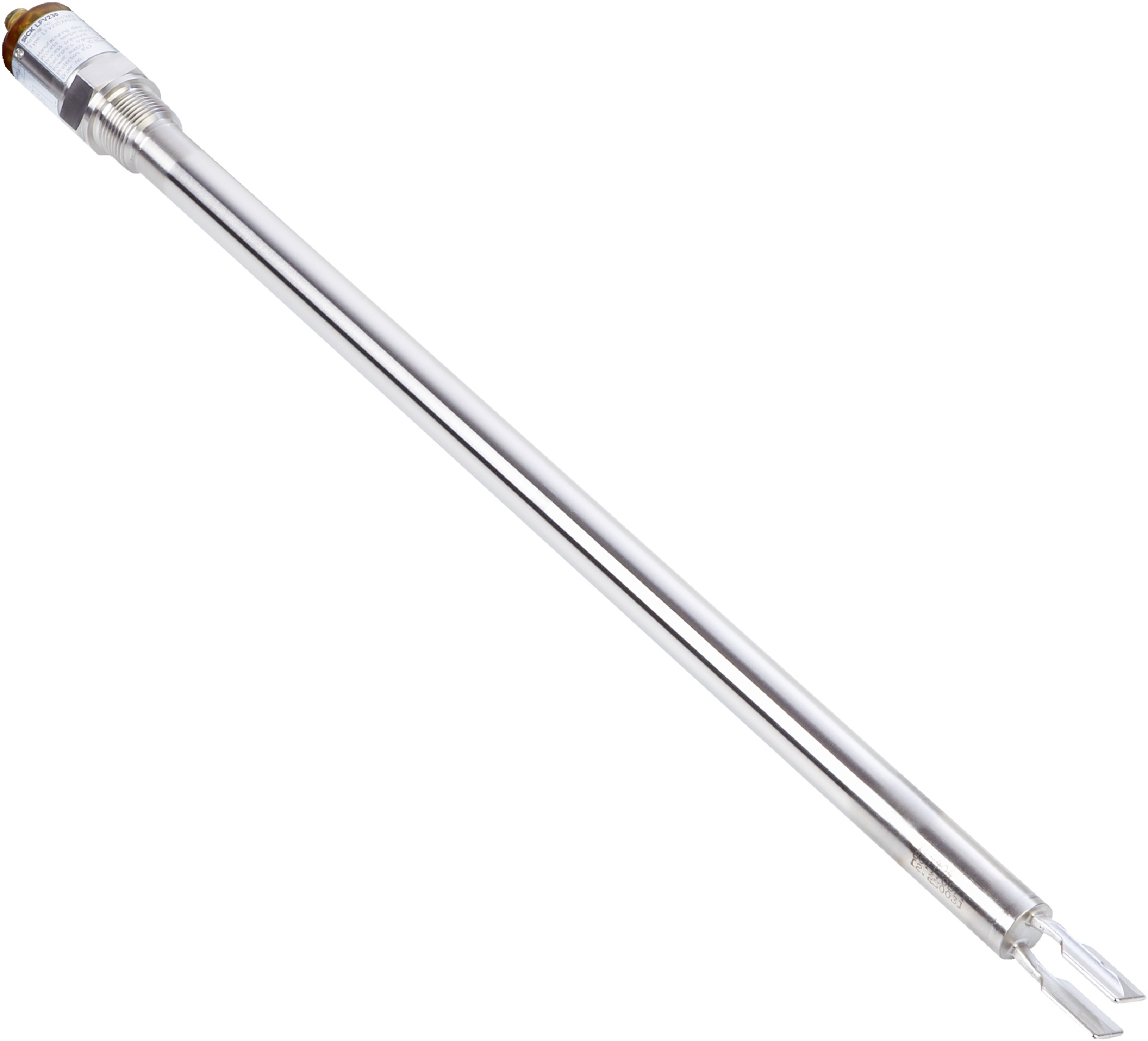

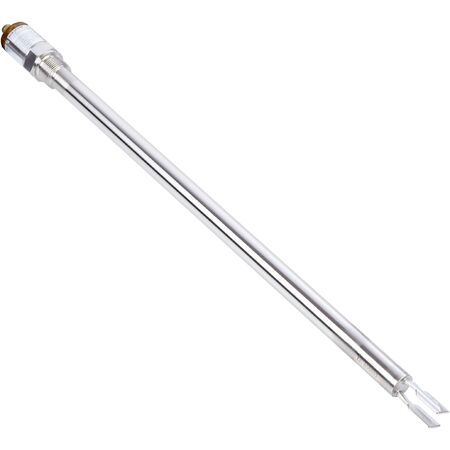

Tuning Fork Level Switch LFV230-XXSGBIPM0300 | IP67 Rated | ±2 mm Accuracy | -40°C to +100°C | by SICK
The Tuning Fork Level Switch LFV230-XXSGBIPM0300 is designed for precise fluid level measurement in industrial applications. With a robust IP67 rated enclosure, it operates effectively in temperatures ranging from -40°C to +100°C and offers high accuracy of ±2 mm. Ideal for monitoring liquids with varying viscosities, this sensor is perfect for chemical, pharmaceutical, and food industries, ensuring reliable process control and minimal environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 300 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤10 mA
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Dimensions (H x L x W): 300mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- IP67 rated enclosure for protection against dust and water
- Communication via IO-Link interface
- Stainless steel 1.4404 / 316L wetted parts for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with fluid level measurement devices and electrical safety standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, pharmaceutical, and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤10 mA supports energy efficiency
- Reliable measurement reduces process waste and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFV230-XXSGBIPM0300 tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
