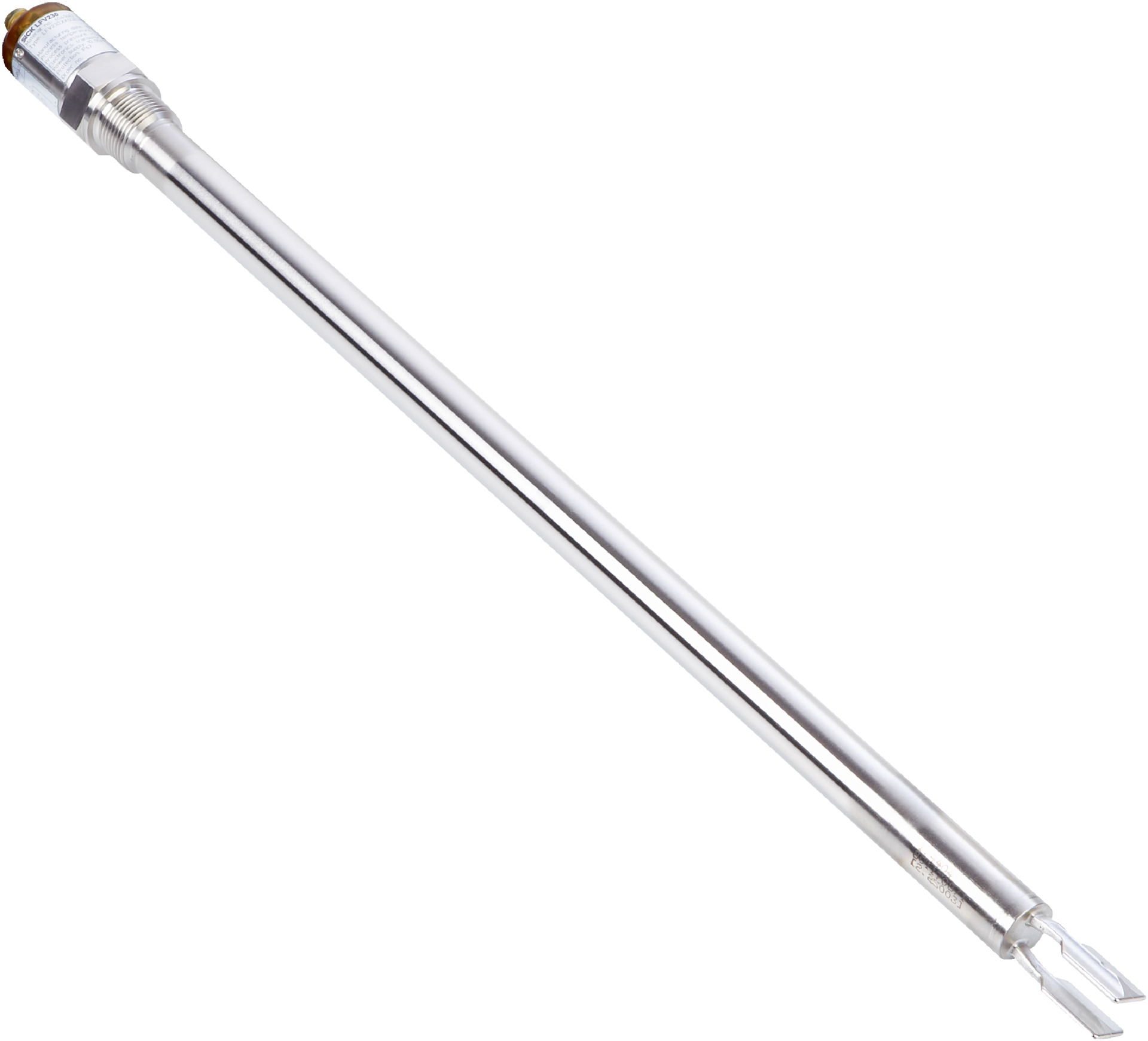

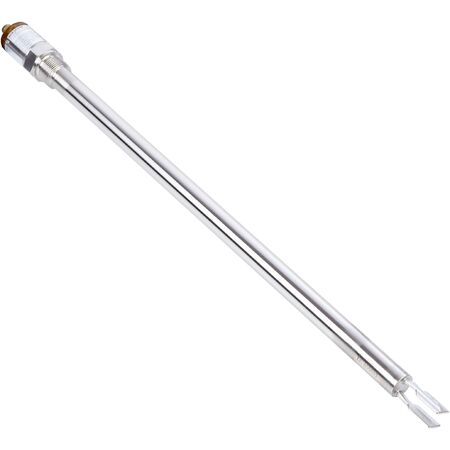

Tuning Fork Level Switch LFV230-XXSGBIPM0750 | IP67 Rated | ±2 mm Accuracy | 750 mm Probe Length | by SICK
The Tuning Fork Level Switch LFV230-XXSGBIPM0750 is designed for precise fluid level detection in industrial applications. With a robust IP67 rated enclosure, it operates effectively in temperatures from -40 °C to +100 °C and supports a wide range of fluid densities. Ideal for chemical, pharmaceutical, and food industries, this level switch ensures reliable monitoring with a fast response time of 500 ms and high accuracy of ±2 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 750 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤10 mA
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Enclosure rating: IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 750mm x 30mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- IP67 rated enclosure for robust protection
- Communication via IO-Link interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, pharmaceutical, and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient fluid management reducing waste and spillage
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK LFV230-XXSGBIPM0750 tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
