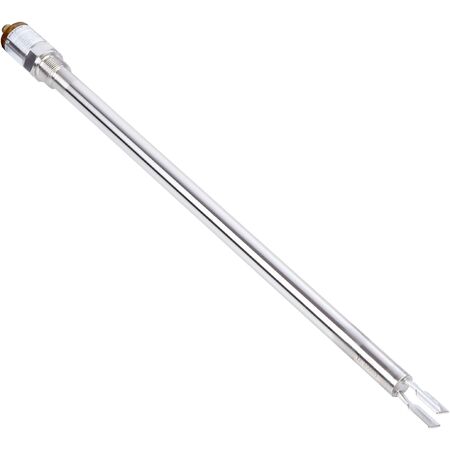

Tuning Fork Level Switch LFV230-XXSGBTPV0150 | IP65 Rated | ±2 mm Accuracy | Fast Response Time | by SICK
The Tuning Fork Level Switch LFV230-XXSGBTPV0150 is designed for precise fluid level detection in tanks and containers, featuring a robust stainless steel construction and an IP65 rated enclosure. With a wide process temperature range from -40 °C to +100 °C and a fast response time of 500 ms, it's perfect for industrial applications in chemical, food, and pharmaceutical industries, ensuring reliable performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe type: Tuning fork
- Probe length: 150 mm
- Process pressure range: -1 bar to 64 bar
- Process temperature range: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Sensor accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 9.6 V DC to 35 V DC
- Power consumption: ≤10 mA
- Connection type: Valve plug DIN 43650
- Output signal: Transistor output PNP
- Output current: <250 mA
- Enclosure rating: IP65
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 150mm x 50mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for process pressures from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP65 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with fluid level measurement devices and electrical safety standards.
Applications
- Fluid level detection in tanks and containers
- Industrial process control for liquids
- Measurement in chemical, food, and pharmaceutical industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise fluid level monitoring to prevent overflows and leaks, reducing environmental contamination risks
- Durable stainless steel construction extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XXSGBTPV0150 tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
