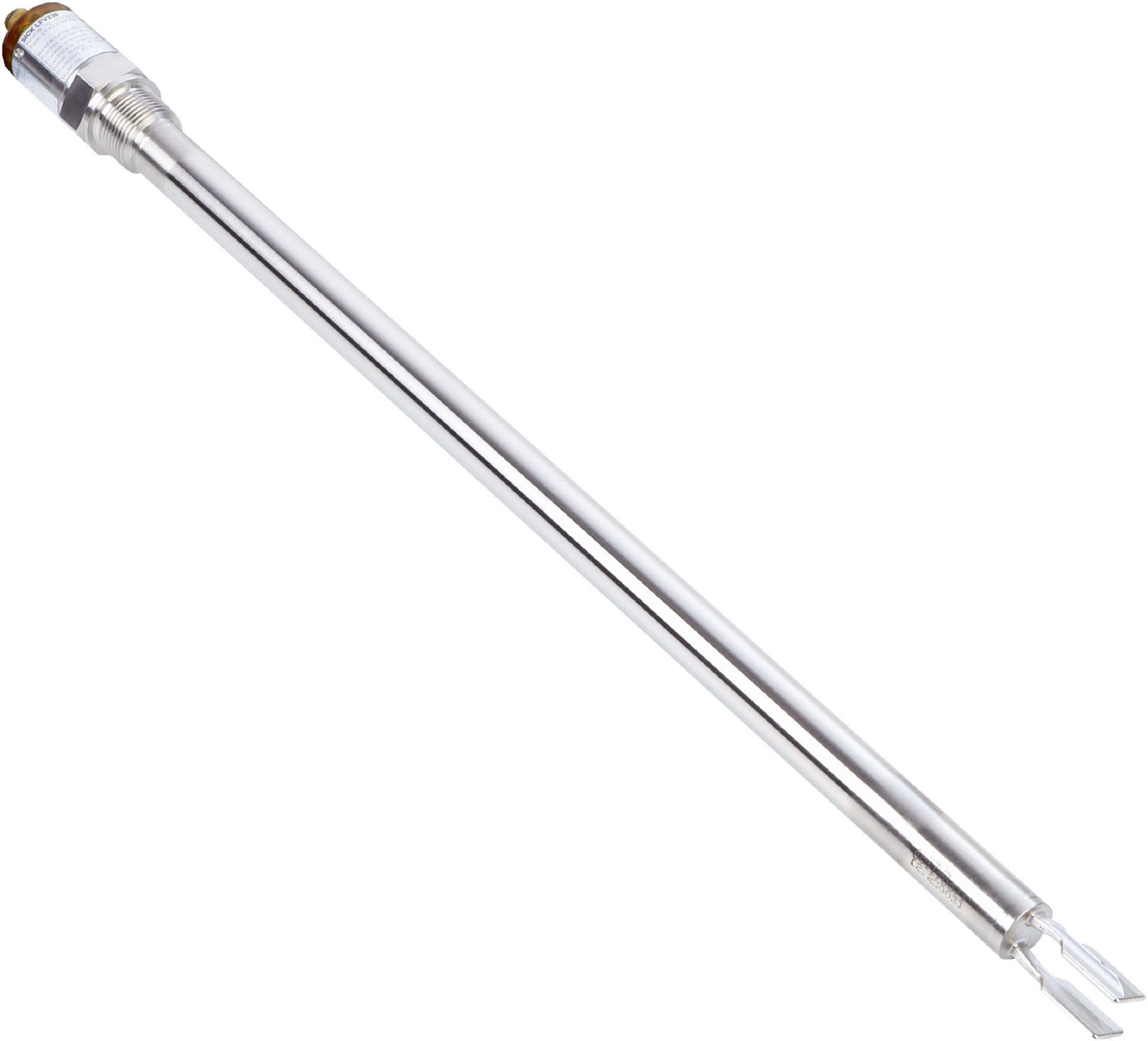

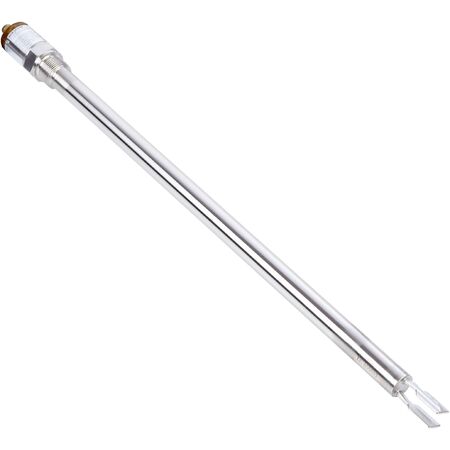

Tuning Fork Level Switch LFV230-XXTGACPV0080 | IP65 Rated | -1 to 64 Bar Pressure | -40°C to +150°C Temperature | by SICK
The Tuning Fork Level Switch LFV230-XXTGACPV0080 is designed for precise fluid level detection in industrial applications. With a robust stainless steel construction and an IP65 rating, it operates effectively in harsh environments, measuring fluid densities from 0.7 g/cm³ to 2.5 g/cm³. Ideal for chemical, pharmaceutical, and food industries, this switch ensures reliable performance with a wide process pressure range and non-contact output signal for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement Type: Switch
- Probe Length: 80 mm
- Process Pressure: -1 bar to 64 bar
- Process Temperature: -40 °C to +150 °C
- Fill Material Density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity Range: 0.1 mPas to 10,000 mPas
- Response Time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply Voltage: 20 V AC/DC to 253 V AC/DC
- Power Consumption: ≤ 4.2 mA
- Connection Type: Valve plug DIN 43650
- Output Signal: Non-contact switch
- Hysteresis: 2 mm
- Enclosure Rating: IP65
- Wetted Parts Material: Stainless steel 1.4404 / 316L
- Process Connection: G 1 A PN 64
- Dimensions (H x L x W): 100mm x 80mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable fluid level measurement
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +150 °C
- Non-contact switch output signal for easy integration
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP65 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical, pharmaceutical, and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and contamination risk
- Durable stainless steel construction extends product lifespan
- Low power consumption minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XXTGACPV0080 tuning fork level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
