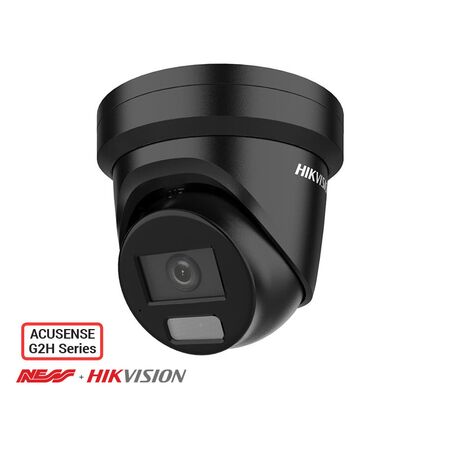

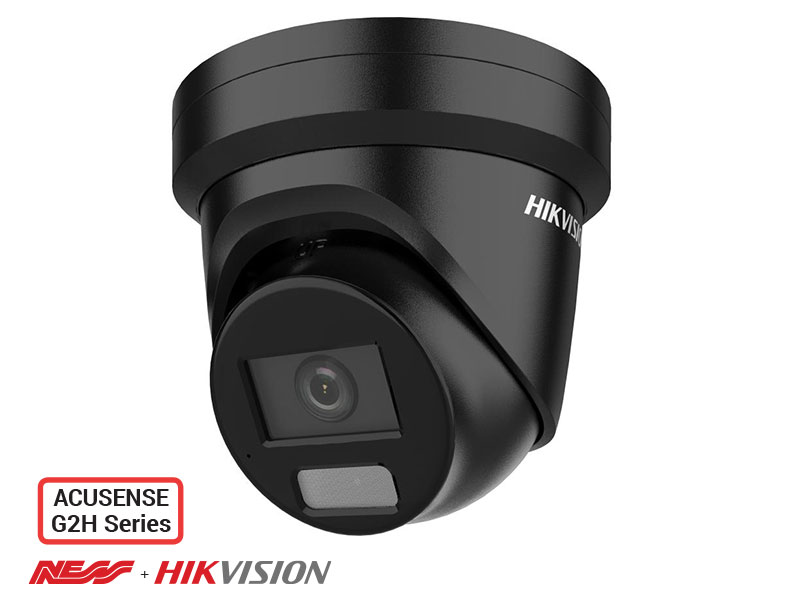

Turret Camera 6MP 2.8mm Black Hikvision
Hikvision turret camera features 6MP resolution, a 2.8mm lens and a black finish. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2366G2-IU 2.8mm Black, 6MP IP Turret Camera, AcuSense CCTV Camera
Technical Specifications
- Image Resolution: 3200 × 1800 pixels, 6MP
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: Fixed 2.8mm lens, F1.6 aperture
- Field of View: 105° horizontal, 55° vertical, 127° diagonal
- Low-Light Performance: Colour 0.003 lux; black and white 0 lux with IR
- Video Compression: H.264, H.265 and H.265+
- Wide Dynamic Range: 120dB true WDR
- Night Vision: Infrared illumination up to 40m
- Audio: Built-in microphone
- Network Interface: 10/100M Ethernet with PoE support
- Power Supply: 12VDC ±25% or PoE, IEEE 802.3af Class 3
- Maximum Power Consumption: 6.5W
- Ingress Protection: IP67
- Housing: Metal construction with trim ring
- Operating Temperature: -30°C to 60°C
- EMC Compliance: RCM, AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 111.4mm x 138.3mm x 138.3mm
- Weight: 0.74 kg
Key Features
- 6MP high-resolution surveillance imaging
- 2.8mm wide-angle lens for broad scene coverage
- AcuSense human and vehicle target classification
- Built-in microphone for audio monitoring
- 120dB true WDR for scenes with strong backlighting
- Infrared night vision with up to 40m range
- IP67-rated protection against dust and water ingress
- Efficient H.265+ video compression
- Powered by 12VDC or Power over Ethernet
- Black finish for discreet or architectural installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Network, PoE and any mains-powered equipment must be installed in accordance with applicable Australian electrical and communications requirements.
Applications
- Residential CCTV systems
- Commercial and retail security installations
- Warehouses, workshops and industrial sites
- Office and building surveillance
- Outdoor entrances, driveways and perimeter monitoring
Standards & Compliance
- AS/NZS CISPR 32:2015 electromagnetic compatibility requirements, as identified for the product's RCM compliance
Environmental Benefits
- H.265+ compression can reduce network bandwidth and storage requirements compared with less efficient video codecs
- IP67-rated construction helps protect the camera in outdoor environments and may extend service life
- Metal housing materials can be recovered through appropriate electronics and metal recycling streams
- PoE operation can simplify cabling and reduce the need for separate local power supplies
Warranty Information
Hikvision Australia warranty documentation lists a standard 36-month warranty period for applicable camera products; confirm coverage and local terms with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
