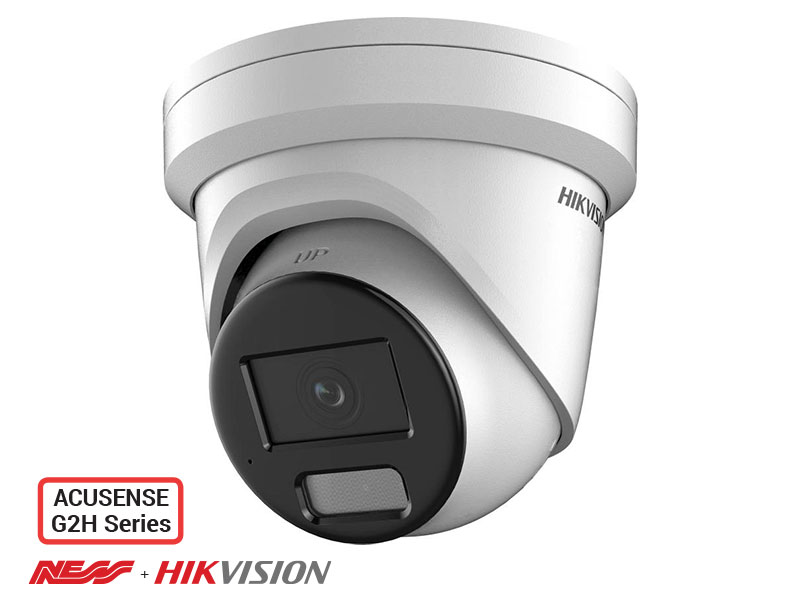

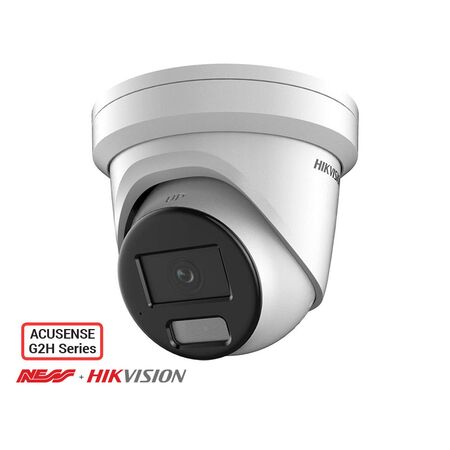

Turret Camera 6MP 2.8mm Hikvision
Hikvision turret camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP Turret Camera, Hikvision IP CCTV Turret Camera, DS-2CD2363G2-I 2.8mm
Technical Specifications
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Maximum Resolution: 3200 × 1800 pixels
- Lens: Fixed 2.8mm focal length
- Field of View: Horizontal 107°, vertical 57°, diagonal 128°
- Aperture: F1.6
- Night Vision: IR illumination up to 30m
- Video Compression: H.265, H.265+, H.264 and H.264+
- Wide Dynamic Range: 120dB true WDR
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network Interface: 1 × RJ45 10/100M self-adaptive Ethernet port
- Power Supply: 12V DC or PoE 802.3af Class 3
- Maximum Power Consumption: 6W at 12V DC or 7.5W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Approvals: RCM to AS/NZS CISPR 32:2015; CE, FCC and IC
- Dimensions (H x L x W): 95.9mm x 127.3mm x 127.3mm
- Weight: 0.6 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- 2.8mm wide-angle lens for broad scene coverage
- AcuSense human and vehicle target classification
- Smart motion detection, intrusion detection and line-crossing detection
- 120dB true WDR for scenes with strong backlighting
- Infrared night vision with up to 30m range
- H.265+ compression helps reduce bandwidth and storage requirements
- Built-in microSD card recording support
- IP67-rated housing for outdoor and weather-exposed installations
- Supports Hik-Connect, Hikvision NVRs and compatible network video systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. PoE and low-voltage cabling must be installed, terminated and tested in accordance with applicable Australian wiring and communications requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Warehouses, workshops and industrial facilities
- Office, school and building security
- Outdoor entrances, car parks and perimeter monitoring
- Integration with Hikvision NVR and network video surveillance systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance requirements
- AS/NZS CISPR 32:2015 EMC emissions compliance, as stated in the manufacturer datasheet
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- PoE allows combined power and data over a single Ethernet cable, reducing cabling material and installation waste
- RoHS and WEEE environmental compliance supports restricted-substance control and responsible end-of-life handling
- Aluminium alloy housing and electronic components can be separated for recycling at end of service life
- IP67 construction and durable components can extend operating life and reduce replacement waste
Warranty Information
Hikvision network cameras are commonly supplied with a 3-year Australian manufacturer warranty through authorised distributors. Hikvision's 5-year warranty applies only to listed premium project-oriented product series, so coverage should be confirmed against the supplied Australian model and purchase documentation.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm Australian-region stock and firmware before purchase.
