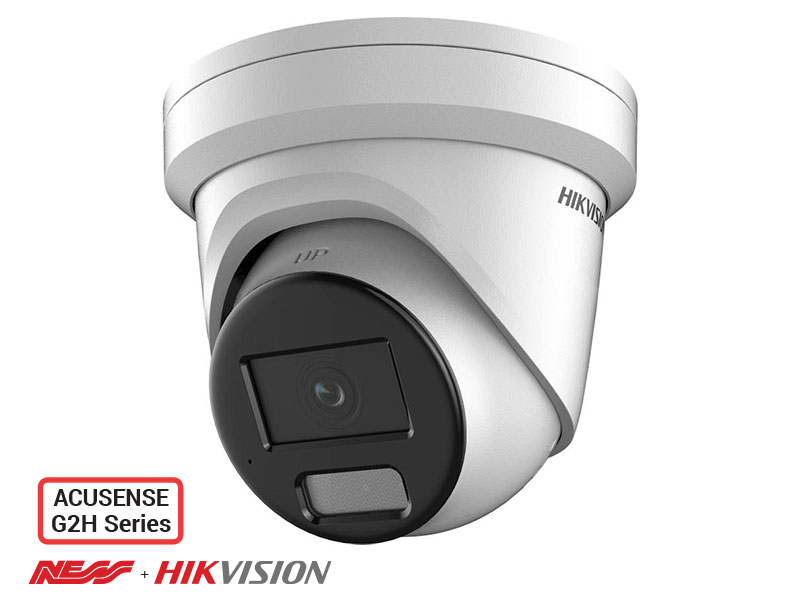

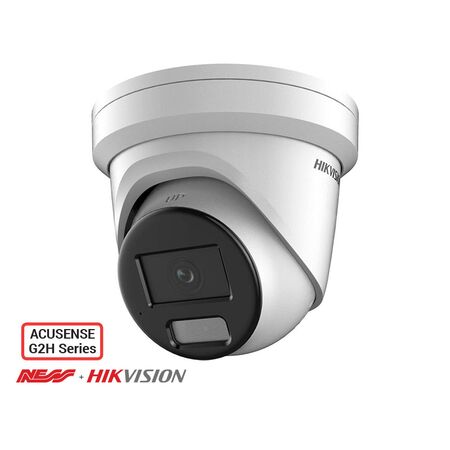

Turret Camera 6MP 4mm Hikvision
Hikvision turret camera features 6MP resolution and a 4mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2365G1-I 4 mm, 6MP IR Turret Camera, DarkFighter Turret IP Camera, Outdoor Turret CCTV Camera
Technical Specifications
- Resolution: 6MP, maximum 3072 × 2048
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: 4 mm fixed M12 lens
- Field of View: 80° horizontal, 51° vertical, 101° diagonal
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Wide Dynamic Range: 120 dB WDR
- Infrared Range: Up to 30 m
- Network Interface: 1 × RJ45 10/100 Mbps Ethernet
- Power Supply: 12 VDC or PoE IEEE 802.3af, Class 3
- Maximum Power Consumption: 6 W via 12 VDC or 7.5 W via PoE
- On-board Storage: microSD, microSDHC or microSDXC up to 128 GB
- Protection Rating: IP67
- Operating Temperature: -30°C to +60°C
- Analytics: Motion, intrusion, line crossing, face and tamper detection
- ONVIF: Profile S and Profile G support
- Dimensions (H x L x W): 125mm x 138.3mm x 138.3mm
- Weight: 0.73 kg
Key Features
- 6MP high-resolution imaging for CCTV and security applications
- 4 mm fixed lens suitable for general-purpose monitoring
- 120 dB WDR improves image detail in high-contrast lighting
- Integrated infrared illumination up to 30 m for night-time monitoring
- PoE support simplifies installation through combined power and data connection
- H.265+ compression reduces network bandwidth and storage requirements
- IP67-rated housing for outdoor and weather-exposed installations
- Three-axis adjustment supports flexible wall or ceiling positioning
- Local microSD recording with support for up to 128 GB storage
- ONVIF compatibility supports integration with compatible video management systems
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or electrical technician. Where connected to fixed electrical wiring or installed as part of a CCTV system, installation should follow manufacturer instructions, applicable state or territory requirements and AS/NZS 62676 guidance.
Applications
- Residential CCTV and security monitoring
- Commercial buildings and retail premises
- Warehouses, workshops and industrial sites
- Outdoor perimeter and entry-point surveillance
- Car parks, driveways and access-control areas
- Integration with Hikvision NVRs and compatible ONVIF video management systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 is applicable to video surveillance systems used for security applications; product-specific certification was not verified from the available documentation.
Environmental Benefits
- H.265 and H.265+ compression can reduce network bandwidth and video-storage requirements compared with less efficient codecs
- PoE enables combined power and data cabling, potentially reducing installation materials
- IP67 weather protection and a durable metal housing can extend service life and reduce replacement waste
- Local recording and efficient video transmission can reduce ongoing storage and infrastructure energy requirements
Warranty Information
Typically supplied with a 36-month manufacturer warranty through Australian authorised channels; confirm the applicable warranty period and conditions with the supplying distributor, as coverage can vary by product series and sales channel.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
