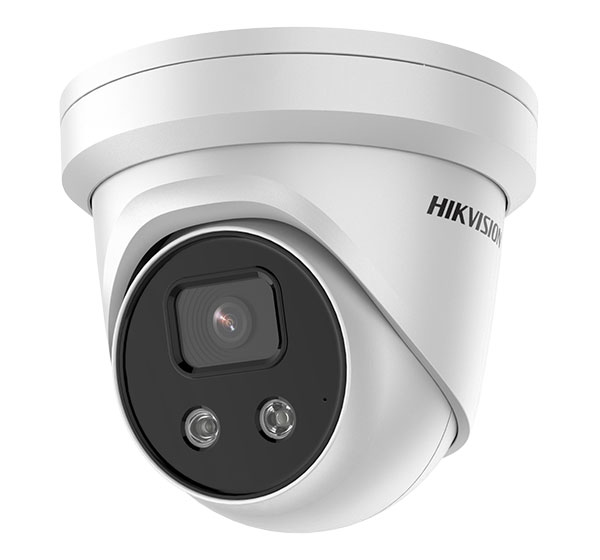

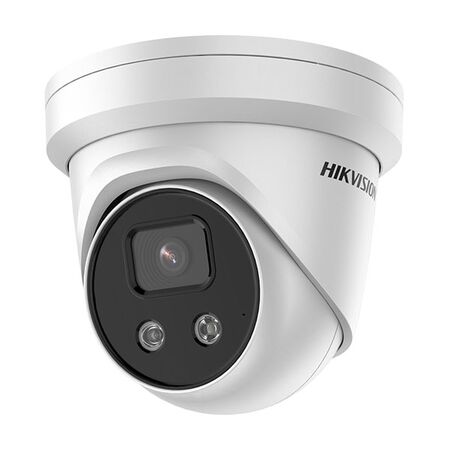

Turret Camera 6MP with Mic 4mm Hikvision
Hikvision turret camera features 6MP resolution, a built-in mic and a 4mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 6MP IP Turret Camera, Hikvision AcuSense Turret Camera, Hikvision 6MP CCTV Camera with Mic
Technical Specifications
- Model: DS-2CD2366G2-IU(4mm)(C)
- Resolution: 6MP, 3200 × 1800 pixels
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: 4mm fixed focal lens, F1.6 aperture
- Horizontal Field of View: Approximately 78°
- Built-in Audio: Integrated microphone
- Video Compression: H.265+, H.265, H.264+ and H.264
- Wide Dynamic Range: 120dB true WDR
- Infrared Range: Up to 30m, 850nm IR
- Network Interface: 10/100M RJ45 Ethernet
- Power Supply: 12V DC or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 5.4W via DC or 6.5W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Storage: microSD, microSDHC or microSDXC up to 512GB
- Compliance Reference: RCM EMC marking to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 111.4mm x 138.3mm x 138.3mm
- Weight: 0.74 kg
Key Features
- 6MP high-definition surveillance imaging
- 4mm fixed lens suited to focused area coverage
- Built-in microphone for synchronised audio recording
- AcuSense human and vehicle target classification
- 120dB true WDR for challenging backlit scenes
- Smart infrared illumination up to 30m
- H.265+ compression for reduced bandwidth and storage requirements
- IP67-rated metal housing for indoor or outdoor installations
- Supports local microSD recording and network video recording
- PoE connectivity for combined power and data over one Ethernet cable
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Configure the camera, PoE or 12V DC supply, network connection, recording system and audio capture in accordance with applicable electrical, data-networking and privacy requirements.
Applications
- Residential security monitoring
- Small business and commercial premises
- Retail shops and office buildings
- Entry points, driveways and building perimeters
- Warehouses, workshops and loading areas
- Outdoor surveillance where weather-resistant IP-rated equipment is required
Standards & Compliance
- RCM EMC reference: AS/NZS CISPR 32:2015
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements
- PoE operation combines power and data through one Ethernet cable, reducing cabling requirements
- IP67-rated housing and durable metal construction support extended service life and reduce replacement waste
- microSD and network recording options can reduce the need for additional dedicated recording hardware
Warranty Information
Warranty is supplied through the authorised Australian distributor or seller. Australian Hikvision distributors commonly provide a manufacturer-backed warranty for network cameras; confirm the applicable term and conditions for the supplied model.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
