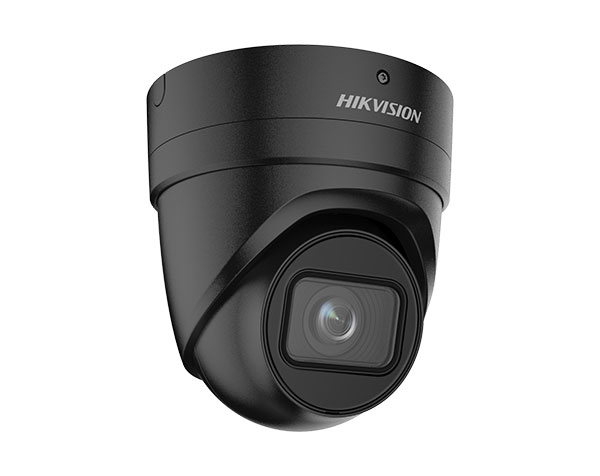

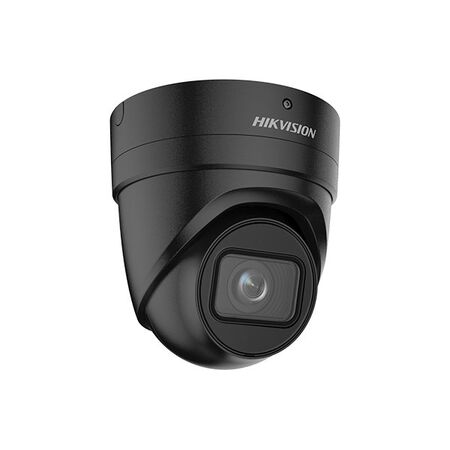

Turret Camera 8MP 2.8-12mm Black Hikvision
Hikvision turret camera features 8MP resolution, a 2.8-12mm lens and black finish. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 8MP IP Turret Camera, 4K AcuSense Turret Camera, Hikvision Varifocal Turret Camera, DS-2CD2H86G2-IZS Black
Technical Specifications
- Resolution: 8MP, 3840 × 2160 pixels
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Motorised varifocal 2.8–12mm
- Field of View: 108°–46° horizontal, 58°–26° vertical
- Low-Light Performance: Colour 0.003 lux at F1.4; 0 lux with IR
- Infrared Range: Up to 40m
- Wide Dynamic Range: 120dB true WDR
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Frame Rate: Up to 25fps at 3840 × 2160 in 50Hz mode
- Protection Rating: IP66 weather and dust resistance
- Impact Rating: IK10 vandal resistance
- Power Supply: 12VDC or PoE 802.3af, Class 3
- Maximum Power Consumption: 12.5W via PoE
- Operating Temperature: -30°C to 60°C
- Material: Metal
- Colour: Black
- Dimensions (H x L x W): 145.5mm x 135.8mm x 135.8mm
- Weight: 1.16 kg
Key Features
- 8MP 4K image resolution
- Motorised 2.8–12mm varifocal lens for adjustable viewing angles
- AcuSense deep-learning classification of human and vehicle targets
- Powered-by-DarkFighter low-light imaging
- 120dB true WDR for backlit scenes
- Smart IR illumination with up to 40m range
- H.265+ compression to reduce bandwidth and storage requirements
- Built-in audio and alarm interfaces
- IP66 protection for outdoor installations
- IK10 vandal-resistant construction
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical tradesperson. PoE and extra-low-voltage connections must be installed in accordance with manufacturer instructions and applicable Australian requirements; licensing requirements vary by state or territory.
Applications
- Commercial and residential CCTV systems
- Retail and warehouse surveillance
- Building entrances and perimeter monitoring
- Car parks, loading areas and service yards
- Industrial and commercial security installations
- Human and vehicle detection applications
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance requirements
- AS/NZS 62676.5:2020 for camera device data specifications and image quality performance
- AS/NZS CISPR 32:2015 EMC requirements, as identified in the manufacturer datasheet
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage energy requirements
- RoHS and WEEE-related environmental compliance identified in the manufacturer datasheet
- Metal construction and IP66/IK10 protection support extended service life and reduce replacement waste
- PoE operation can simplify cabling and reduce the need for separate power infrastructure
Warranty Information
Hikvision IP cameras supplied through authorised Australian channels are commonly covered by a 3-year back-to-base manufacturer warranty, subject to Hikvision Australia warranty and RMA terms. Premium project-oriented series may have different warranty periods.
Available Now
Available through Hikvision and authorised Australian security, electrical and CCTV distributors; confirm current regional stock and model availability before ordering.
