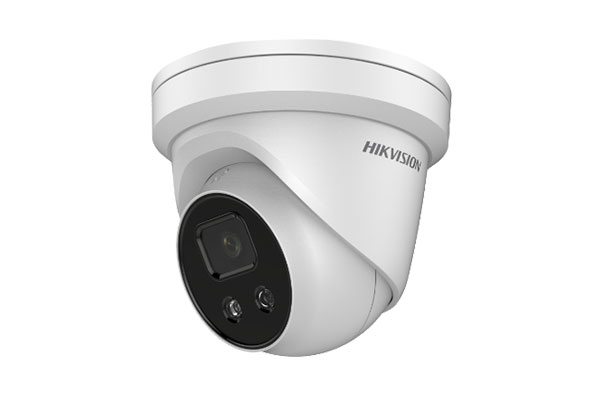

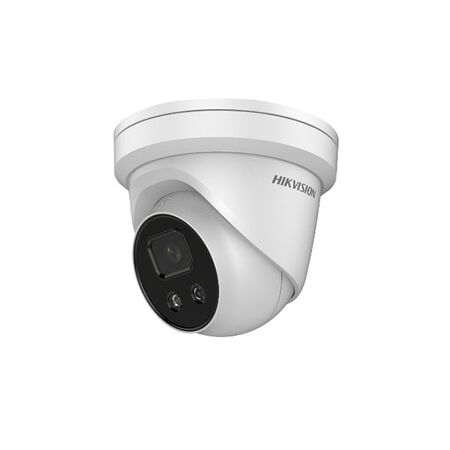

Turret Camera 8MP AcuSense IR 4mm Hikvision
Hikvision IR turret camera features 8MP resolution, AcuSense and a 4mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AcuSense 8MP Turret Camera, 4K IP Turret Camera, Hikvision DS-2CD2383G2-I 4mm
Technical Specifications
- Resolution: 8MP, 3840 x 2160 maximum
- Image Sensor: 1/2.8 inch progressive scan CMOS
- Lens: Fixed 4mm focal length, F1.6 aperture
- Field of View: 87° horizontal, 46° vertical, 105° diagonal
- Infrared Range: Up to 30m, 850nm IR
- Wide Dynamic Range: 120dB
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Frame Rate: Up to 20fps at 3840 x 2160
- Storage: MicroSD, SDHC or SDXC up to 256GB
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Power Supply: 12V DC or PoE 802.3af Class 3
- Maximum Power Consumption: 6W via 12V DC or 7.5W via PoE
- Protection Rating: IP67
- Housing Material: Aluminium alloy
- Operating Temperature: -30°C to 60°C
- Audio: Built-in microphone on the -U variant
- Dimensions (H x L x W): 95.9mm x 127.3mm x 127.3mm
- Weight: 0.6 kg
Key Features
- 8MP 4K imaging for detailed surveillance footage
- AcuSense human and vehicle target classification
- Fixed 4mm lens suited to general-purpose surveillance coverage
- 120dB WDR for challenging backlit scenes
- Smart IR illumination up to 30m in low-light conditions
- H.265+ compression to reduce storage and bandwidth requirements
- Supports PoE for combined power and network connectivity
- IP67-rated housing for outdoor dust and water resistance
- Motion detection, intrusion detection and line-crossing detection
- Compatible with Hikvision Hik-Connect, iVMS-4200 and Hik-Central platforms
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or customer-cabling installer. Configure and test the camera in accordance with the manufacturer's instructions and applicable Australian cabling and CCTV requirements.
Applications
- Residential CCTV security systems
- Commercial premises and retail surveillance
- Warehouses, workshops and industrial facilities
- Outdoor entry, perimeter and car park monitoring
- Integration with Hikvision NVR and IP surveillance systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.4:2020 for CCTV application guidelines
- AS/NZS 62676.5:2020 for camera data specifications and image quality performance
- AS/NZS CISPR 32:2015 RCM electromagnetic compatibility approval stated by the manufacturer
Environmental Benefits
- Aluminium alloy housing is recyclable at end of service life
- PoE connectivity can reduce cabling requirements and installation material use
- H.265+ compression can reduce network bandwidth and storage energy demand
- RoHS and WEEE environmental compliance stated in the manufacturer's documentation
- IP67 protection and durable construction can extend service life and reduce replacement waste
Warranty Information
Typically covered by a 3-year back-to-base manufacturer warranty for Australian Hikvision IP cameras; confirm warranty eligibility and period with the authorised distributor.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors; confirm current stock and regional model availability.
