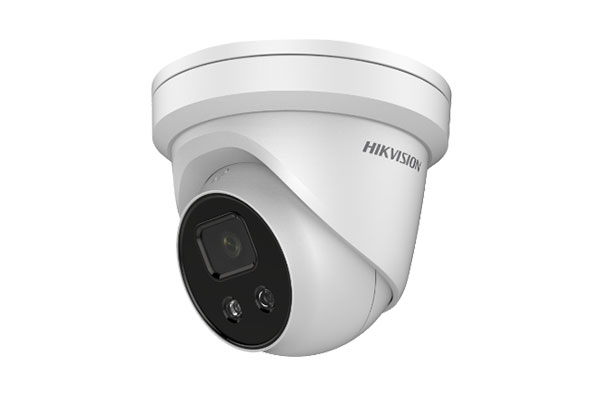

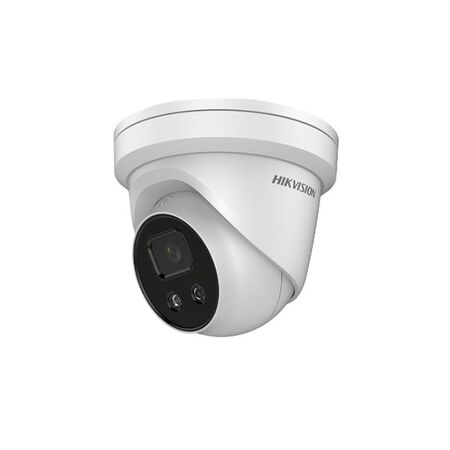

Turret Camera 8MP LiveGuard 2.8mm Hikvision
Hikvision turret camera features 8MP resolution, LiveGuard and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP LiveGuard Turret Camera, Hikvision AcuSense 8MP Fixed Turret, Hikvision 2386G2 LiveGuard Camera
Technical Specifications
- Model: DS-2CD2386G2H-IS2U/SL
- Resolution: 8MP, 3840 × 2160
- Lens: Fixed 2.8mm lens
- Video Compression: H.265+, H.265, H.264+, H.264
- Wide Dynamic Range: 120dB WDR
- Night Lighting: Smart Hybrid Light with infrared and white light
- Audio: Built-in microphone, speaker and two-way audio
- Security Functions: Human and vehicle classification using deep learning
- Storage: MicroSD card support up to 512GB
- Network Interface: Ethernet with PoE support
- Power: 12V DC or IEEE 802.3at PoE, maximum 18W via PoE
- Ingress Protection: IP67
- Housing Material: Metal cover and metal main body
- Operating Temperature: -30°C to 60°C
- EMC Compliance: RCM listed to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.78 kg
Key Features
- 8MP 4K imaging for detailed CCTV surveillance
- 2.8mm fixed lens for wide-area coverage
- AcuSense human and vehicle classification
- LiveGuard active white-light strobe and audible warning
- Built-in microphone and speaker for two-way audio
- Smart Hybrid Light combines infrared and white-light illumination
- 120dB WDR improves image quality in high-contrast scenes
- IP67-rated housing for outdoor installations
- MicroSD recording support up to 512GB
- PoE connectivity simplifies network camera installation
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Network configuration, PoE or 12V DC connection, weatherproof cable termination and camera positioning should follow the manufacturer's instructions and applicable electrical and communications requirements.
Applications
- Residential CCTV systems
- Commercial security installations
- Retail and warehouse surveillance
- Entry, driveway and perimeter monitoring
- Outdoor areas requiring active visual and audible deterrence
- IP surveillance systems with human and vehicle detection
Standards & Compliance
- AS/NZS CISPR 32:2015 for electromagnetic compatibility and RCM requirements, as listed for the camera
- AS/NZS 62368.1 for applicable audio, video and information technology equipment safety requirements; confirm the required edition and certification documentation for the installation
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- Metal construction and IP67 protection support extended service life and reduce premature replacement waste
- Manufacturer documentation lists RoHS and WEEE environmental compliance for the product family
Warranty Information
Hikvision's standard warranty policy lists a 36-month warranty for network cameras, subject to purchase through an authorised channel and the applicable regional terms. Certain Hikvision premium project-oriented series may qualify for a five-year warranty.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
