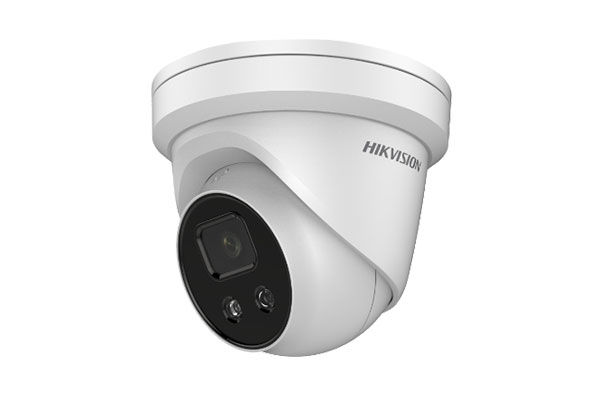

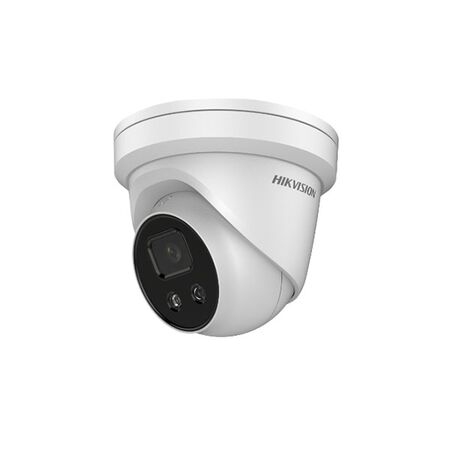

Turret Camera 8MP LiveGuard 4mm Hikvision
Hikvision turret camera features 8MP resolution, LiveGuard and a 4mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP LiveGuard Turret Camera, Hikvision ColorVu AcuSense Turret Camera, DS-2CD2387G2-LSU/SL 4mm
Technical Specifications
- Model: DS-2CD2387G2-LSU/SL(4mm)(C)
- Resolution: 8MP, 3840 × 2160
- Image Sensor: 1/1.2-inch progressive scan CMOS
- Lens: Fixed 4mm focal length, F1.0 aperture
- Field of View: 88° horizontal, 47° vertical, 104° diagonal
- Minimum Illumination: 0.0005 lux at F1.0, AGC on; 0 lux with white light
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Frame Rate: Up to 25 fps at 3840 × 2160 in 50 Hz mode
- Wide Dynamic Range: 130 dB
- Supplement Light: White light up to 30 metres
- Audio: Built-in microphone and speaker with two-way audio
- Alarm Interface: 1 input and 1 output
- Storage: MicroSD, microSDHC or microSDXC up to 256GB
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power: 12 VDC or PoE 802.3af Class 3
- Maximum Power Consumption: 8.5W via 12 VDC
- Ingress Protection: IP67
- Housing Material: Metal cover and metal main body
- Compliance Marking: RCM to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 120.1mm x 138.3mm x 138.3mm
- Weight: 0.9 kg
Key Features
- 8MP 4K UHD image resolution
- Hikvision ColorVu technology for 24/7 colour imaging
- LiveGuard active strobe light and audible warning
- AcuSense deep-learning classification for human and vehicle targets
- Built-in two-way audio
- 130 dB wide dynamic range for high-contrast scenes
- Smart white-light illumination up to 30 metres
- H.265+ compression for reduced bandwidth and storage requirements
- IP67 water and dust resistance
- Three-axis turret adjustment with 360° pan, 0° to 75° tilt and 360° rotation
- ONVIF Profile S, G and T support
Professional Installation Requirements
- Installation should be completed by a competent CCTV or security systems installer. Network cabling, PoE equipment, mounting and system configuration must be suitable for the installation environment; any mains-powered equipment must be connected in accordance with AS/NZS 3000 by a licensed electrician where required.
Applications
- Residential CCTV surveillance
- Commercial and retail security monitoring
- Warehouses, workshops and industrial sites
- Outdoor perimeter and entry-point monitoring
- Building entrances, car parks and loading areas
- Security systems requiring active audible and visual deterrence
Standards & Compliance
- RCM approval to AS/NZS CISPR 32:2015 for electromagnetic compatibility
- Applicable CCTV and video surveillance system guidance: AS/NZS 62676.1.1:2020
- Applicable video surveillance application guidance: AS/NZS 62676.4:2020
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- RoHS and WEEE environmental compliance declarations are specified by the manufacturer
- Metal housing and IP67 protection support extended service life and reduced replacement waste
- PoE operation can simplify cabling and reduce the need for separate local power supplies
Warranty Information
36-month manufacturer warranty for applicable Hikvision IP camera products, subject to Hikvision Australia warranty terms, authorised supply channels and model eligibility.
Available Now
Availability varies by model suffix and region; supplied through Hikvision and authorised Australian security distributors, subject to current stock and product lifecycle status.
