Trade Discount 25%

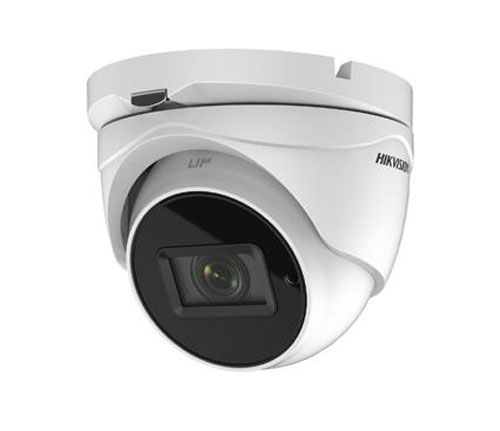

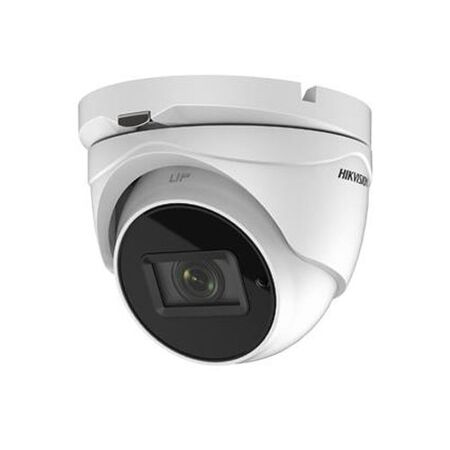

Turret Camera 8MP TVI 2.7-13.5mm Hikvision
Hikvision TVI turret camera features 8MP resolution and a 2.7-13.5mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP 4K TVI Turret Camera, Hikvision 4K Turbo HD Eyeball Camera, Hikvision DS-2CE79U1T-IT3ZF
Technical Specifications
- Resolution: 8.29 megapixel CMOS, 3840 × 2160
- Video Technology: TVI, AHD, CVI and CVBS switchable output
- Lens: 2.7–13.5mm motorised varifocal lens
- Horizontal Field of View: 108.1° to 45.6°
- Frame Rate: 8MP at 12.5fps or 15fps in TVI mode
- Infrared Range: Up to 60m
- Day/Night: Automatic, colour and black-and-white modes with IR cut filter
- Wide Dynamic Range: Digital WDR
- Video Processing: BLC, HLC and 2D DNR
- Power Supply: 9–15V DC
- Maximum Power Consumption: 8.6W
- Protection Rating: IP67
- Housing Material: Metal
- Operating Temperature: -40°C to 60°C
- Communication: HIKVISION-C up-the-coax protocol
- Manufacturer Dimensions and Weight: 134.3 × 123.86 × 110.24mm; approximately 580g ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000132/S000000146/S000000147/OFR000232/M000001832/Data_Sheet/DS-2CE79U1T-IT3ZF_Datasheet_20230630.pdf?utm_source=openai))
- Dimensions (H x L x W): 110.24mm x 134.3mm x 123.86mm
- Weight: 0.58 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- Motorised 2.7–13.5mm varifocal lens for adjustable viewing coverage
- Up to 60m infrared illumination for low-light monitoring
- Supports TVI, AHD, CVI and CVBS video formats
- IP67-rated housing for outdoor and exposed installations
- Digital WDR, backlight compensation and highlight compensation
- Three-axis adjustment with 360° pan, 0–75° tilt and 360° rotation
- Metal housing designed for commercial and residential CCTV installations
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or electrical installer. Configure the camera, low-voltage power supply, coaxial cabling and recorder in accordance with manufacturer instructions and applicable Australian requirements.
Applications
- Residential CCTV systems
- Commercial and retail security installations
- Industrial and warehouse surveillance
- Perimeter, driveway and entrance monitoring
- Outdoor building and car park surveillance
- Retrofit upgrades for compatible analogue HD DVR systems
Standards & Compliance
- Relevant CCTV system requirements: AS/NZS 62676.1.1:2020
- Relevant CCTV system application and installation guidance: AS/NZS 62676.4:2020
- AS/NZS 62676 is the applicable Australian/New Zealand series for video surveillance systems used in security applications ([intertekinform.com](https://www.intertekinform.com/en-au/standards/as-nzs-62676-1-1-2020-1185061_saig_as_as_2829754/?utm_source=openai))
Environmental Benefits
- IP67 protection and a metal housing can support longer service life in exposed installations, reducing premature replacement waste
- Adjustable varifocal coverage may allow one camera to cover an area that would otherwise require multiple fixed-lens cameras
- Low-voltage operation with a maximum rated consumption of 8.6W supports relatively low operating energy demand
- Durable CCTV equipment can reduce electronic waste when maintained and retained in service for its intended lifespan
Warranty Information
Hikvision's published RMA policy lists a 36-month default warranty for analogue cameras, subject to the applicable regional terms, purchase channel and product serial number. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model availability and distributor stock.
