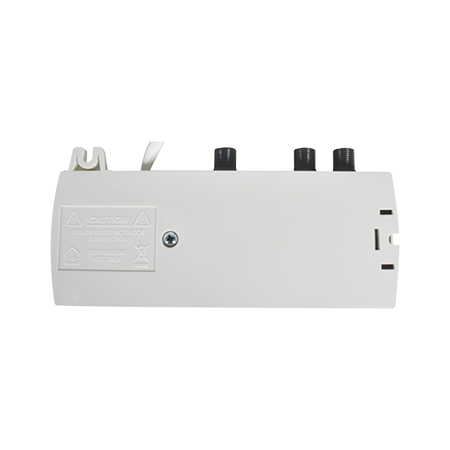

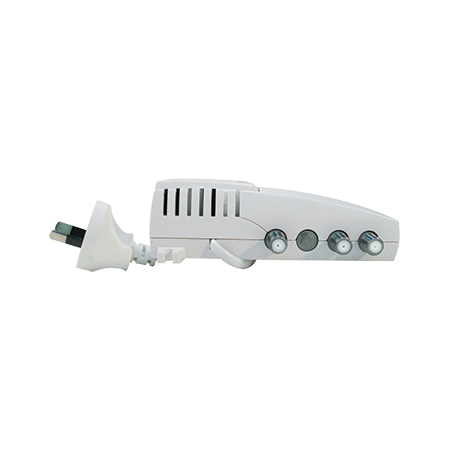

TV Amplifier 30dB 47-862MHz Matchmaster
Matchmaster TV Amplifier 30dB 47-862MHz. Ideal for boosting weak TV signals in fringe reception areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency Range: 47-862MHz
- Gain: 18-20/27-30dB (Fixed Slope Pre Correction)
- Gain Adjustment: 17dB
- Slope Adjustment: 17dB
- Flatness: ±0.75dB
- Input and Output Return Loss: >14dB at 40MHz; -1.5 dB/Oct, but not less than 10dB
- Output Level CTB, CSO (EN50083-3): 97dBµV
- Test Point: -30dB
- Noise Figure: 8.5dB
- Power Consumption: 230V ∼ 50Hz 3.5W
- Operating Temperature Range: -20° to +50°C
- Dimensions (H x L x W): 63mm x 39mm x 133mm
- Weight: 0.36 kg
Key Features
- Compact and reliable design suitable for indoor use
- Variable slope and gain control for greater adjustment
- Locally powered using 240V mains power
- F' connectors on all ports for easy connectivity
- External test port with passive return path built-in
- Switchable internal amplifier section for low and medium gain performance
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with electrical standards.
Applications
- VHF/UHF and combination mast head amplification
- House distribution amplification
- Indoor signal distribution enhancement
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces signal loss and interference, improving efficiency of signal distribution
- Low power consumption at 3.5W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster for specific warranty details.
Available Now
The Matchmaster TERRA Amplifier 30dB Gain is available now for immediate purchase. Ideal for enhancing VHF/UHF signal distribution in residential and commercial settings.
