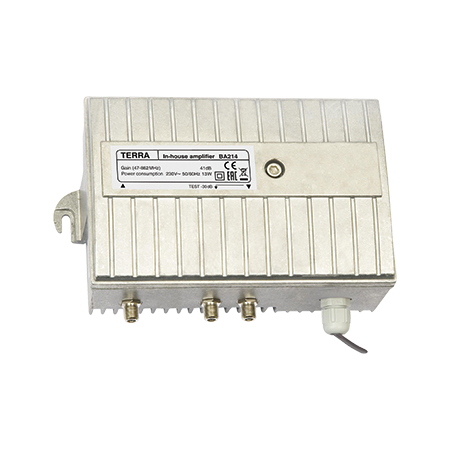

TV Signal Amplifier 41dB Gain | 47-862MHz | No Return Path | Compact by Matchmaster
TV signal amplifier with 41dB forward gain and 47-862MHz frequency range—ideal for residential and commercial broadcasting. Built for enhanced signal strength, with a no return path design for simplified setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 41dB Forward Gain 47-862MHz Amplifier (No Return Path)
Brand: Matchmaster
SKU: 14MM-BA214
Alternatively Known As: Forward Gain Amplifier, Outdoor Distribution Amplifier, RF Signal Amplifier, 47-862MHz Amplifier
Technical Specifications
- Frequency range: 47-862MHz
- Gain: 41dB
- Flatness: ±0.5dB
- Gain adjustment: 18dB
- Slope adjustment: 18dB
- Interstage attenuator: 0/3/6/9dB
- Interstage equalizer: 0/3/6/9dB
- Output level CTB, CSO (EN60728-3): 115dBμV (42 channels)
- Input and output return loss: ≥ 18dB at 40MHz - 1.5dB/octave
- Noise figure: <5dB
- Test point: -30dB
- Power consumption: 230V~ 50/60Hz 13W
- Operating temperature range: -20° to +50°C
- Dimensions (H x L x W): 76mm x 132mm x 180mm
- Weight: 1.4 kg
Key Features
- 41dB gain with downstream frequency range 47 to 862MHz
- GaAs push-pull output stage for high performance
- Interstage attenuator and slope pre-correction
- Adjustable gain and slope regulators
- Output level CTB, CSO (EN60728-3) 115 dBμV (42 channels)
- 18dB adjustment for both gain and slope

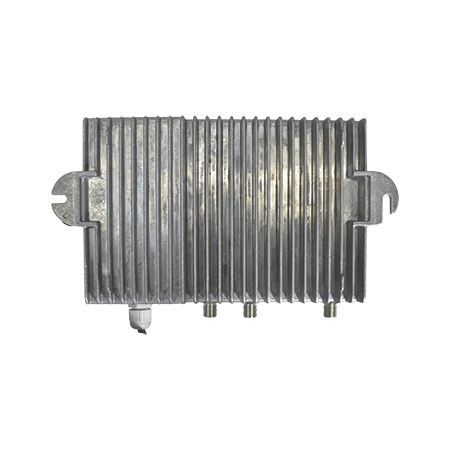

- Waterproof and RF-screened die-cast housing
- Operating temperature range -20° to +50°C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and harsh environment signal distribution
- Pedestal installations
- Outdoor enclosures requiring RF signal amplification
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable waterproof housing reduces need for frequent replacements
- Efficient power consumption at 13W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 41dB Forward Gain 47-862MHz Distribution Amplifier BA214 is available now for immediate purchase. Ideal for outdoor and harsh environment signal distribution applications.
