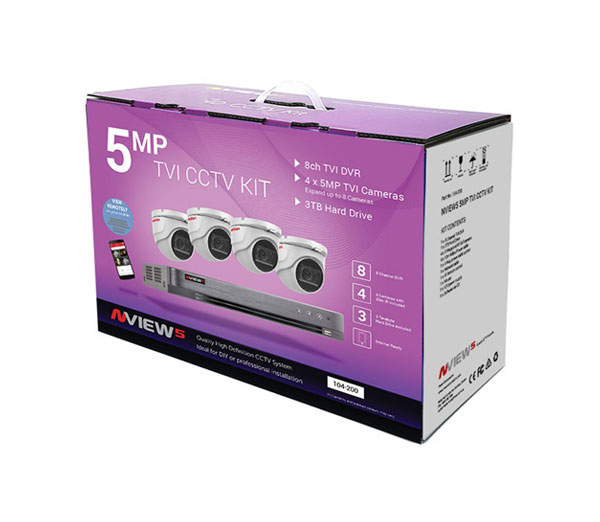

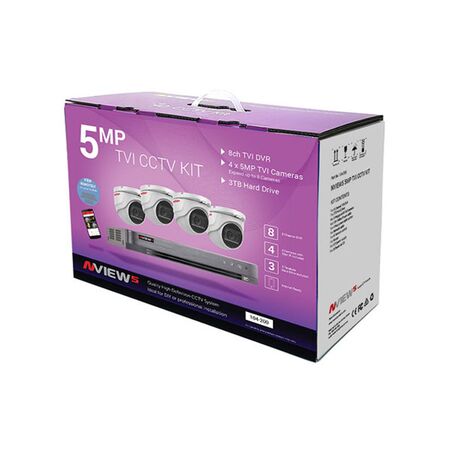

TVI CCTV Kit 8 Channel 5MP 3TB HDD IR up to 30m NVIEW Hikvision
Hikvision TVI CCTV kit features 8 channels, 5MP resolution, a 3TB HDD and IR up to 30m. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision TurboHD CCTV Kit, 8-Channel HD-TVI Security Camera Kit, NVIEW TVI Surveillance Kit
Technical Specifications
- System Type: HD-TVI analogue CCTV surveillance kit
- Recorder Channels: 8 TVI channels
- Camera Resolution: Up to 5 megapixels
- Storage: 3TB surveillance-rated hard drive
- Infrared Range: Up to 30m
- Video Compression: H.265/H.265 Pro+ dependent on recorder model
- Video Inputs: HDTVI, AHD, CVI, CVBS and IP support dependent on recorder model
- Remote Access: Smartphone and network viewing support
- Recorder Dimensions: 315 x 280 x 52mm, based on the matching Hikvision 8-channel recorder platform
- Dimensions (H x L x W): 52mm x 315mm x 280mm
- Weight: 4.5 kg
Key Features
- 8-channel TVI recorder for expandable surveillance installations
- 5MP high-definition video capability
- 3TB hard drive for local video recording
- Infrared night vision with coverage up to 30m
- Supports multiple analogue video formats for system flexibility
- H.265-series compression helps reduce storage and bandwidth requirements
- Suitable for residential, retail, office and light-commercial security monitoring
- Remote viewing capability through compatible Hikvision or Guarding Vision software
Professional Installation Requirements
- Suitable for DIY installation when using pre-terminated low-voltage cabling, but fixed 230V electrical work must be completed by a licensed electrician. CCTV installation and commissioning should follow the applicable AS/NZS 62676 requirements.
Applications
- Residential security surveillance
- Retail shops and commercial premises
- Office and warehouse monitoring
- Entry, driveway and perimeter observation
- Remote video monitoring and incident playback
- Replacement or expansion of compatible HD-TVI CCTV systems
Standards & Compliance
- Relevant system standard: AS/NZS 62676.1.1:2020 for video surveillance system requirements
- Relevant transmission standard: AS/NZS 62676.1.2:2020 for video transmission performance
- Installation and commissioning should follow the applicable AS/NZS 62676 series requirements; product-specific certification was not verified
Environmental Benefits
- H.265-series video compression can reduce storage requirements and network bandwidth compared with older compression formats
- Replaceable hard-drive architecture can extend system service life and reduce whole-system replacement waste
- Durable metal recorder and camera construction can support longer service intervals
- Local recording can reduce reliance on continuous cloud storage and associated data-transfer energy use
Warranty Information
Warranty support is subject to Hikvision Australia’s applicable product warranty and authorised-channel purchase terms. Hikvision publishes extended five-year coverage for selected premium project-oriented product lines; the exact warranty period for this NVIEW kit should be confirmed with the supplying distributor.
Available Now
Available through Hikvision-authorised Australian distributors and security-system suppliers, subject to distributor stock.
