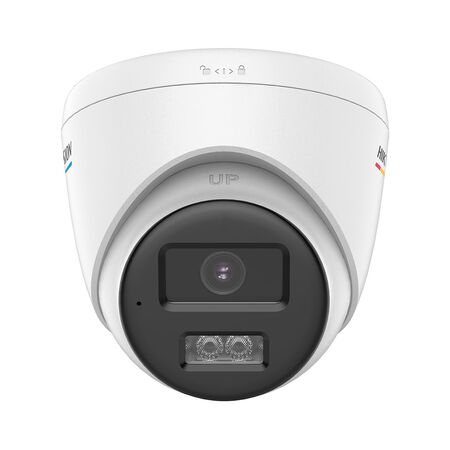

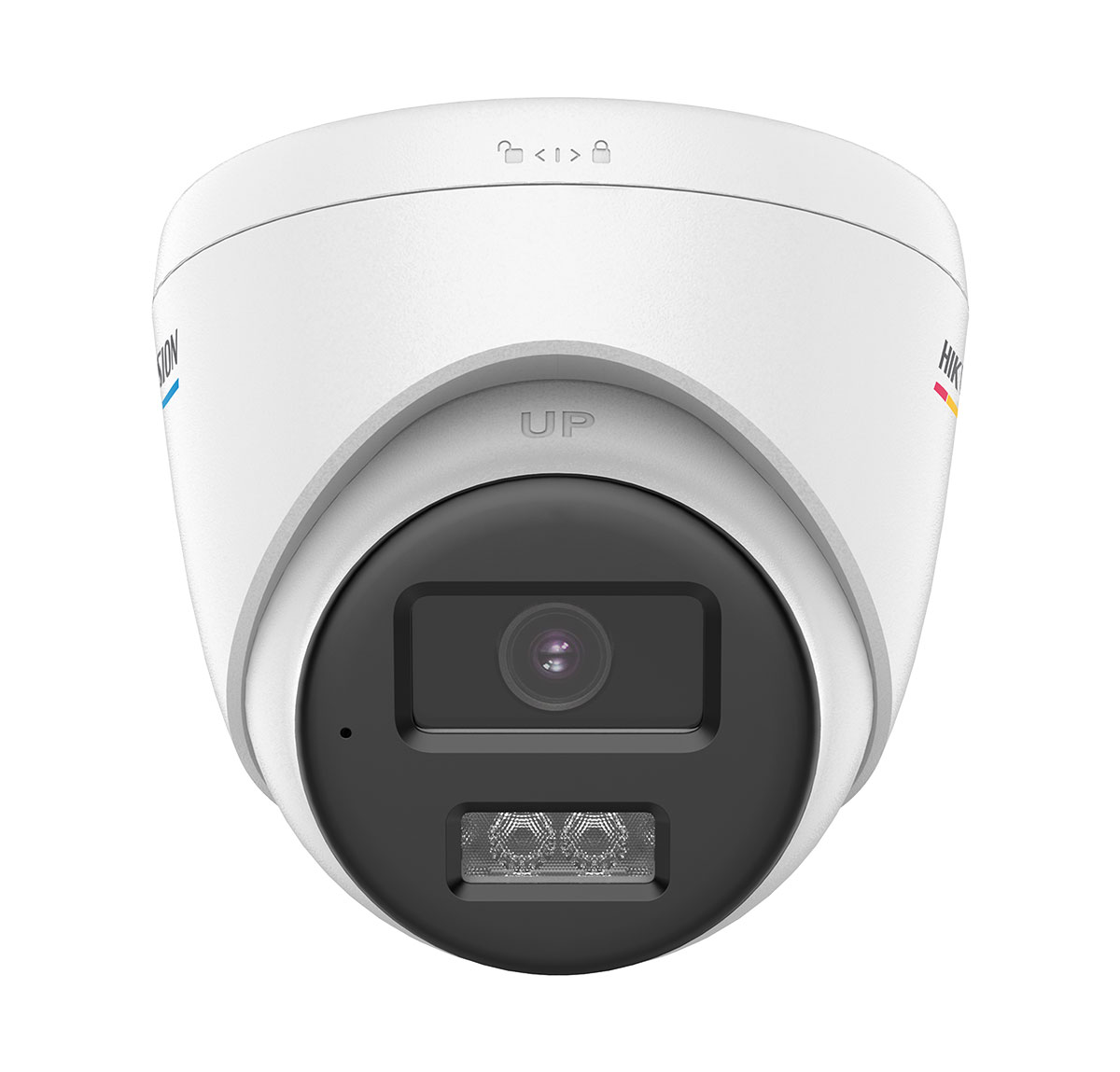

TVI Hybrid Turret Camera 5MP 2.8mm Hikvision
Hikvision TVI hybrid turret camera features 5MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 5MP TVI Turret Camera, Hikvision 3K Hybrid Turret Camera, Hikvision ColorVu Fixed Turret Camera
Technical Specifications
- Image Sensor: 3K CMOS
- Maximum Resolution: 2960 × 1665 pixels
- Lens: 2.8mm fixed focal lens
- Field of View: 112° horizontal, 60° vertical, 140° diagonal
- Video Output: Switchable TVI/AHD/CVI/CVBS analogue output
- Frame Rate: 3K at 20fps; 4MP and 1080p at up to 30fps
- Minimum Illumination: 0.0005 lux at F1.0; 0 lux with white light
- Supplementary Lighting: Smart IR and white light, up to 40m
- Wide Dynamic Range: 130dB true WDR
- Audio: Built-in microphone with audio over coaxial cable
- Power Supply: 12V DC ±25%
- Maximum Power Consumption: 5.7W
- Ingress Protection: IP67
- Operating Temperature: -40°C to 60°C
- Housing Material: Metal main body with plastic enclosure
- Dimensions (H x L x W): 102.7mm x 110mm x 110mm
- Weight: 0.37 kg
Key Features
- 3K high-definition analogue surveillance imaging
- 2.8mm wide-angle lens for broad scene coverage
- 24/7 colour imaging with F1.0 aperture
- Smart Hybrid Light switches between infrared and white-light illumination
- Up to 40m IR and 40m white-light range
- 130dB true WDR for high-contrast scenes
- Built-in microphone supporting audio over coaxial cable
- 3D digital noise reduction
- Compatible with TVI, AHD, CVI and CVBS systems
- IP67-rated housing for outdoor installations
Professional Installation Requirements
- Installation should be performed by a competent CCTV technician. Connect to a compatible hybrid DVR using suitable coaxial cabling and provide a correctly rated 12V DC power supply. Any 230V AC power connection must be completed by a licensed electrician.
Applications
- Residential CCTV systems
- Retail and commercial security installations
- Entryways, driveways and car parks
- Warehouses, workshops and industrial premises
- Outdoor perimeter, gate and pathway monitoring
- Analogue CCTV upgrades using existing coaxial cabling
Standards & Compliance
- AS/NZS 62368.1 is the relevant equipment safety standard category for audio, video and information and communication technology equipment; verify the supplied SKU's Australian compliance documentation before installation.
Environmental Benefits
- Can support CCTV upgrades using existing coaxial cabling, potentially reducing rewiring and associated material waste
- IP67-rated construction and durable metal housing can extend service life and reduce replacement frequency
- Smart Hybrid Light provides selectable IR or white-light operation according to site requirements
- Low-voltage 12V DC operation
Warranty Information
Hikvision's standard warranty policy lists 36 months for analogue cameras, subject to the applicable local terms, authorised supply channel and product serial number.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current model and regional stock.
