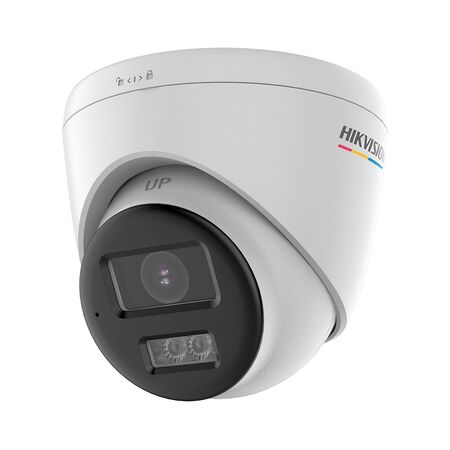

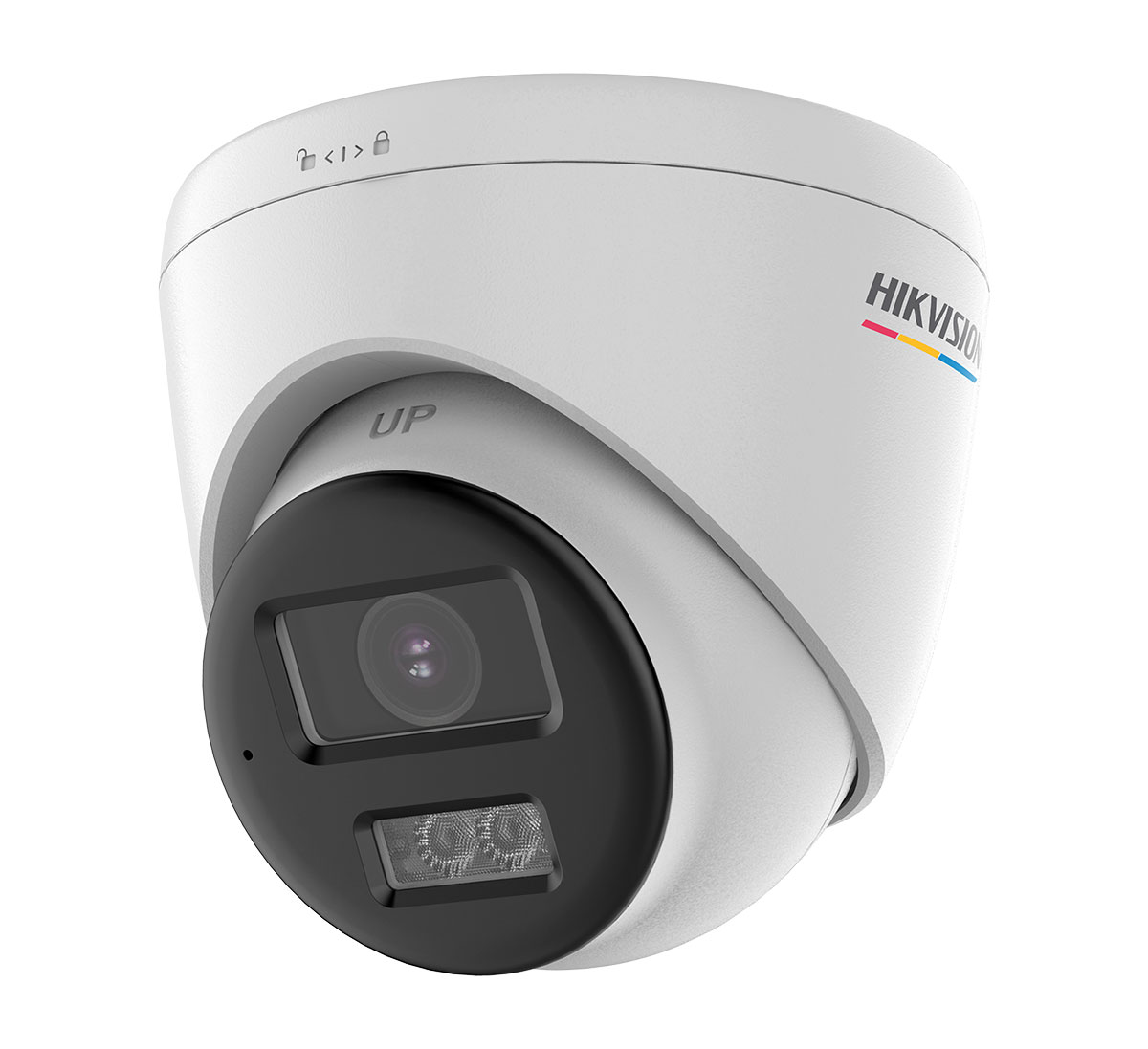

TVI Hybrid Turret Camera 8MP 2.8mm Hikvision
Hikvision TVI hybrid turret camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CE76U1T-ITMF, 8MP Turbo HD Turret Camera, 4-in-1 Analogue CCTV Turret Camera
Technical Specifications
- Image Sensor: 8.29 megapixel progressive-scan CMOS
- Maximum Resolution: 3840 × 2160 pixels
- Lens: 2.8mm fixed focal length
- Horizontal Field of View: 102.2°
- Video Output: Switchable TVI, AHD, CVI and CVBS
- TVI Frame Rate: 8MP at 12.5fps or 15fps
- Infrared Range: Up to 30m with EXIR 2.0 smart IR
- Minimum Illumination: 0.01 lux in colour; 0 lux with IR
- Wide Dynamic Range: Digital WDR
- Image Enhancement: BLC, HLC and 2D DNR
- Power Supply: 12V DC ±25%
- Maximum Power Consumption: 5.3W
- Housing Material: Metal
- Ingress Protection: IP67
- Operating Temperature: -40°C to 60°C
- Communication: HIKVISION-C up-the-coax control
- Dimensions (H x L x W): 79.37mm x 90mm x 90mm
- Weight: 0.31 kg
Key Features
- 8MP resolution for detailed CCTV surveillance footage
- 2.8mm wide-angle lens for broad scene coverage
- 4-in-1 hybrid analogue output supports TVI, AHD, CVI and CVBS systems
- Up to 30m infrared night vision with smart IR control
- IP67-rated housing for outdoor dust and water protection
- Metal construction for improved durability in security installations
- Compatible with existing coaxial CCTV cabling and suitable DVRs
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Provide a regulated 12V DC supply, correctly terminate coaxial cabling, configure the compatible DVR and install in accordance with applicable electrical, cabling and video surveillance requirements.
Applications
- Residential CCTV systems
- Commercial and retail security installations
- Industrial and warehouse surveillance
- Outdoor perimeter monitoring
- Replacement or upgrade of existing coaxial analogue cameras
- Security systems requiring TVI, AHD, CVI or CVBS compatibility
Standards & Compliance
- AS/NZS 62676.1.1:2020 — relevant general requirements for video surveillance systems used in security applications; confirm project-level compliance
- AS/NZS 62676.1.2:2020 — relevant video transmission performance requirements for CCTV systems; confirm product-specific documentation
Environmental Benefits
- Metal housing can be recovered through established metal recycling streams at end of service life
- Low maximum power consumption of 5.3W can help reduce operating energy use compared with higher-powered surveillance equipment
- Durable IP67 construction and infrared illumination support longer service life and reduced replacement waste
Warranty Information
Hikvision Australia’s standard warranty policy lists 36 months for analog cameras, calculated from the product shipment date according to the serial number. Confirm warranty eligibility with the authorised Australian distributor and product supply channel.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
