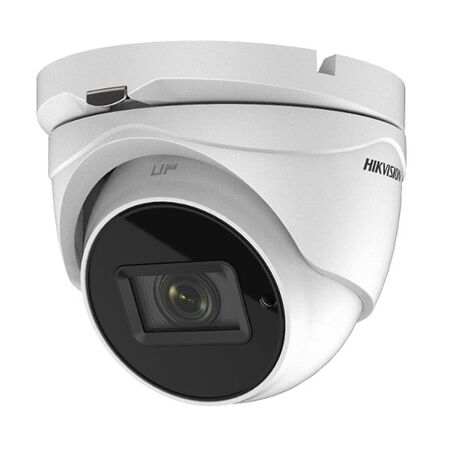

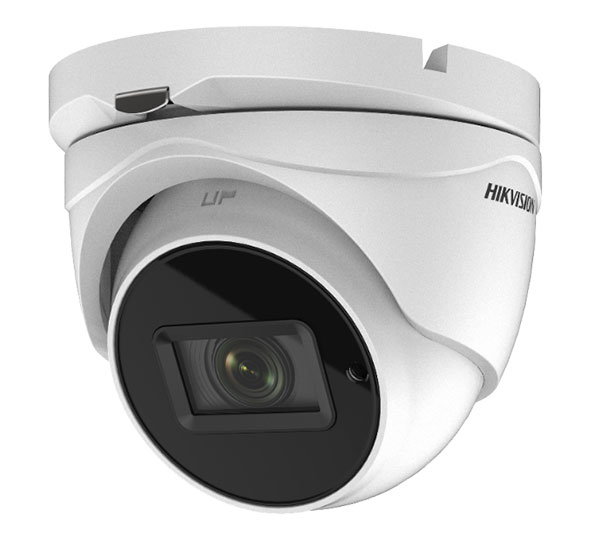

TVI Turret Camera 5MP 2.7-13.5mm Hikvision
Hikvision TVI turret camera features 5MP resolution and a 2.7-13.5mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision TurboHD Turret Camera, 5MP Analogue CCTV Camera, 4-in-1 TVI/AHD/CVI/CVBS Turret Camera
Technical Specifications
- Image Sensor: 5MP CMOS
- Maximum Resolution: 2560 × 1944 pixels
- Lens: 2.7–13.5mm motorised varifocal lens
- Field of View: Horizontal 95° to 26°; vertical 72° to 20°
- TVI Frame Rate: 5MP at 20fps
- Video Output: Switchable TVI, AHD, CVI and CVBS
- Minimum Illumination: 0.01 lux at F1.6, AGC on; 0 lux with IR
- Infrared Range: Up to 40m Smart IR
- Wide Dynamic Range: Digital WDR
- Noise Reduction: 2D DNR
- Power Supply: 12V DC ±15%
- Maximum Power Consumption: 6.2W
- Material: Metal
- Ingress Protection: IP67
- Operating Temperature: -40°C to 60°C
- Dimensions (H x L x W): 110.24mm x 134.3mm x 123.87mm
- Weight: 0.555 kg
Key Features
- 5MP high-definition analogue video capture
- Motorised 2.7–13.5mm varifocal lens for adjustable viewing angle
- Switchable TVI, AHD, CVI and CVBS video formats
- Smart IR illumination up to 40m for night-time monitoring
- Digital WDR, BLC and HLC image optimisation
- Three-axis camera adjustment with 360° pan, 75° tilt and 360° rotation
- IP67 weather-resistant housing for indoor and outdoor installations
- HIKVISION-C coaxial communication for remote configuration
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security-equipment installer. Any mains-powered equipment, fixed wiring or associated electrical work must comply with applicable Australian electrical requirements and be completed by a licensed electrician where required.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Warehouses, workshops and industrial sites
- Perimeter, entry and vehicle monitoring
- Replacement or expansion of compatible Hikvision TurboHD systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
Environmental Benefits
- Metal housing components are recyclable at end of service life
- IP67 protection and durable construction can extend product service life and reduce replacement waste
- Low maximum power consumption of 6.2W supports efficient continuous surveillance operation
Warranty Information
Hikvision Australia’s standard warranty policy lists 36 months for analogue cameras, subject to the applicable purchase channel, serial number and warranty terms.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current product range and distributor stock.
