Twilight Switch 1 Channel | Wall Mounted | DIN Rail Compatible by Hager
Twilight switch with 1 channel and wall-mounted design—ideal for outdoor lighting automation. Built for energy efficiency, with DIN rail compatibility and robust temperature range for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

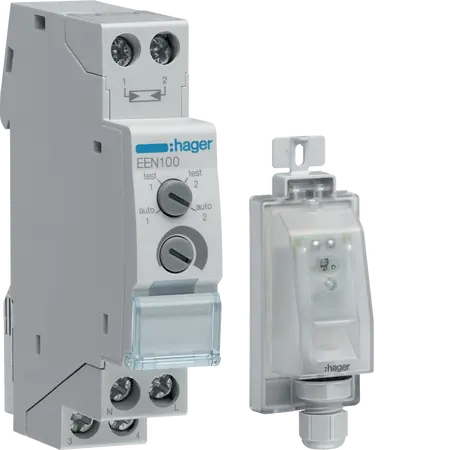

Product Name/Title: Twilight switch 1 channel, 1M, wall mounted cell
Brand: Hager
SKU: EEN100
Alternatively Known As: Single Channel Twilight Sensor Switch
Technical Specifications
- Frequency: 50 - 60 Hz
- Rated operational voltage Ue: 230 - 230 V
- Switch on delay time: 60 s
- Operating temperature: -5 - +45 °C
- Storage/transport temperature: -25 - +70 °C
- Cross-section flexible conductor: 1.5 - 6 mm²
- Cross-section rigid conductor: 1.5 - 6 mm²
- Number of modules: 1
- Installation mode: For mounting on DIN rail, Extension sensor for wall and ceiling mounting
- Type of connection: With screw terminals
- Switching current: 10 A
- Dimensions (H x L x W): 83mm x 65mm x 17.80mm
- Weight: 0.1 kg
Key Features
- 1 channel twilight switch for efficient light management
- Screw terminals for secure connections
- DIN rail compatible for easy integration
- Robust temperature range, suited for various environments
Professional Installation Requirements
- Professional installation by a qualified electrician is highly recommended to ensure optimal performance and safety.
Applications
- Outdoor lighting automation
- Parking lot lighting control
- Security lighting systems
Standards & Compliance
- Meets AS/NZS electrical and safety standards
Environmental Benefits
- Reduces energy consumption by ensuring lights are on only when necessary
- Supports smart building solutions
Warranty Information
Standard 2-year warranty against defects from the date of purchase.
Available Now
The Twilight switch 1 channel, 1M, wall mounted cell is available now for immediate purchase. Ideal for outdoor lighting and energy-efficient solutions.
