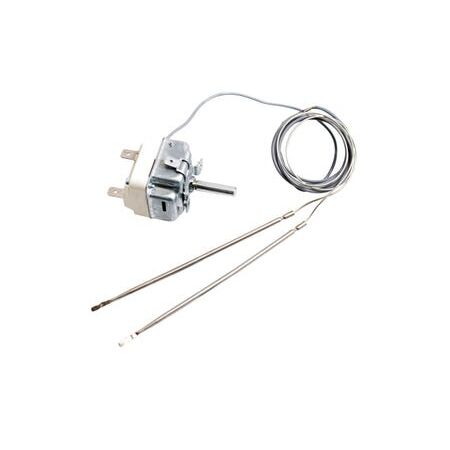

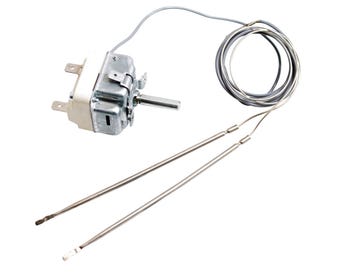

TWIN SEN Thermostat 64-280°C SPST | 1085mm Length | Precision Control by Cabac

BRAND: CABAC
SKU: EF55.19059.835
$421.80 List price: $510.60
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
TWIN SEN thermostat with a temperature range of 64-280°C and SPST configuration—ideal for industrial applications. Built for precise temperature control, with a long 1085mm length for versatile installation.

Product Name/Title: Thermostat TWIN SEN 64-280°C SPST | 1085mm Length | Precision Control by Matchmaster

Brand: Cabac

SKU: EF55.19059.835

Alternatively Known As: Twin Sensor Thermostat, Cooking Thermostat, SPST Thermostat, Capillary Thermostat

Technical Specifications
  • Temperature range: 64-280°C
  • Switch type: SPST (Single Pole Single Throw)
  • Capillary length: 1085mm
  • Sensor size: 124 x 3mm
  • Start angle: 65°
  • Rotation: 270°
  • Electrical rating: 16A, 240V
  • Breaks circuit on temperature rise
  • Dimensions (H x L x W): n/a mm x 1085mm x n/a mm
  • Weight: 0.3 kg
Key Features
  • Twin sensor thermostat with temperature range 64-280°C
  • Single pole single throw (SPST) switch
  • Capillary length: 1085mm
  • Sensor dimensions: 124 x 3mm
  • Start angle: 65 degrees
  • Rotation angle: 270 degrees
  • Breaks circuit on temperature rise
  • Rated for 16A at 240V
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper operation and safety.
Applications
  • Cooking appliances requiring temperature control
  • Replacement part for ovens, cooktops, and other cooking equipment
Standards & Compliance
  • Complies with AS/NZS 60335 for safety of household and similar electrical appliances
Environmental Benefits
  • Helps maintain efficient appliance operation reducing energy waste
  • Durable design reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms.

Available Now

The Cabac Thermostat TWIN SEN 64-280 DEG C SPST 1085MM is available for immediate purchase, ideal for cooking appliance repairs and replacements.
