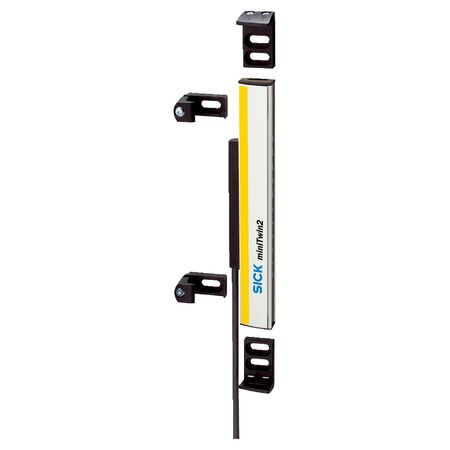

Twin-Stick Safety Light Curtain | 14 mm Resolution | 0-8 m Scanning Range | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of up to 8 m. Ideal for machine safeguarding, this sensor ensures reliable presence detection with a response time of ≤ 14 ms and optical synchronization, making it perfect for manufacturing and automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Scanning range minimum: 0 m to 6 m
- Scanning range typical: 0 m to 8 m
- Protective field height: 480 mm
- Response time: ≤ 14 ms
- Synchronization: Optical, no separate synchronization needed
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal): 58 per second
- Maximum demand rate: 34 per minute (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- System connection: Male M12, 5-pin connector
- Cable length: 350 mm
- Conductor cross section: 0.34 mm²
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- OSSD output: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS - 2.25 V to VS)
- OFF state voltage: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 175 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 350mm x 15mm
- Weight: 0.175 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usage as standalone or last guest in cascades
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height of 480 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Use as standalone device or in 2- or 3-device cascades
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-04814BBC03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase. Ideal for industrial safety and machine safeguarding applications.
