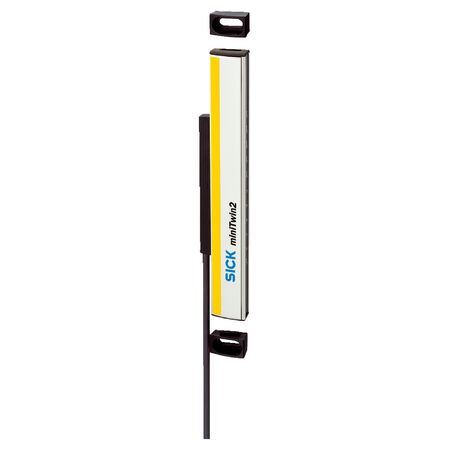

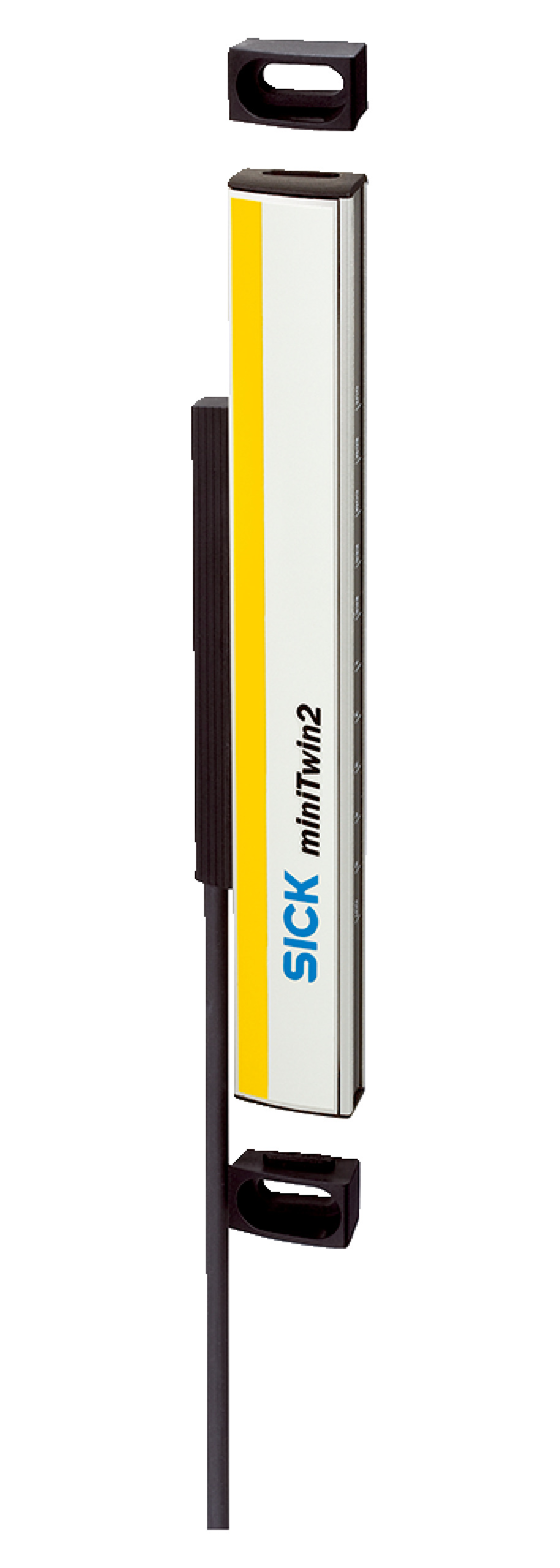

Twin-Stick Safety Light Curtain | 14 mm Resolution | 0-8 m Scanning Range | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety monitoring, featuring a 14 mm resolution and a scanning range of up to 8 m. With a protective field height of 120 mm and a fast response time of ≤ 14 ms, it ensures reliable operation in automation and manufacturing safety systems. Built with an IP65 rated enclosure, this durable sensor is perfect for harsh environments, providing peace of mind for machinery safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 120 mm
- Response time: ≤ 14 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 160mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part for miniTwin2 standalone device
- O-fix bracket mounting system
- 14 mm resolution with scanning range 0 m to 8 m typical
- Protective field height of 120 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety monitoring for machinery
- Stand-alone safety light curtain applications
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing for long product life
- IP65 rated enclosure for protection against dust and water
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C2MT-01214BBC03BB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
