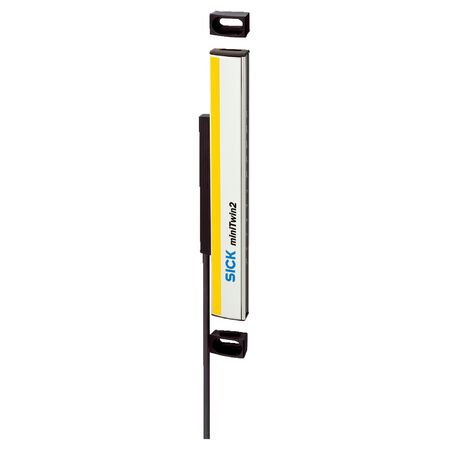

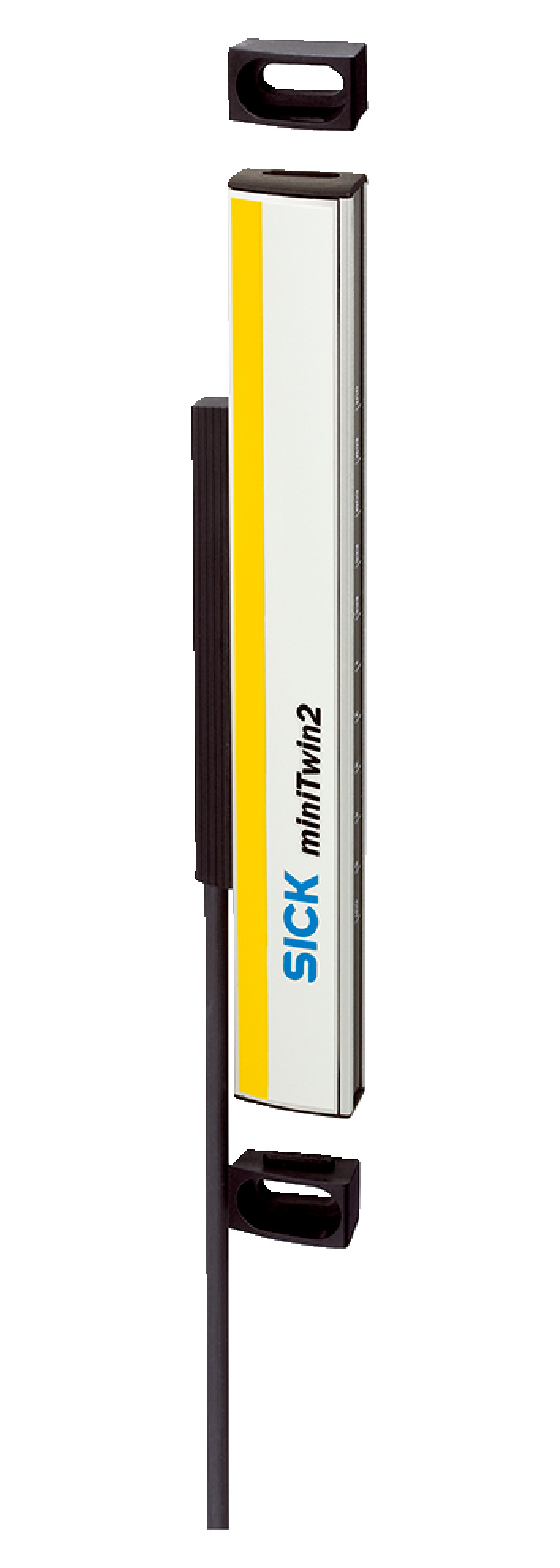

Twin-Stick Safety Light Curtain | 14 mm Resolution | 0-8 m Scanning Range | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 14 mm resolution and a scanning range of up to 8 m. With a protective field height of 1,020 mm and a fast response time of ≤ 17 ms, it ensures reliable personnel protection in hazardous areas. Built for automation systems, this safety device offers optical synchronization and is IP65 rated for durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 1,020 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, no separate synchronization required
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58 per second
- Performance level: PL c (EN ISO 13849)
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Protection class: III (EN 61140)
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Cable length: 700 mm
- Permitted cable length: ≤ 20 m
- Dimensions (H x L x W): 1020mm x 32mm x 15mm
- Weight: 0.36 kg
Key Features
- Twin-Stick system part for miniTwin2 standalone device
- O-fix bracket mounting system
- 14 mm resolution with scanning range from 0 m to 8 m typical
- Protective field height of 1,020 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signal switching devices (OSSDs)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use as a standalone safety device in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing extends product life reducing waste
- IP65 rated enclosure protects against dust and water ingress, enhancing longevity
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C2MT-10214BBC03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
