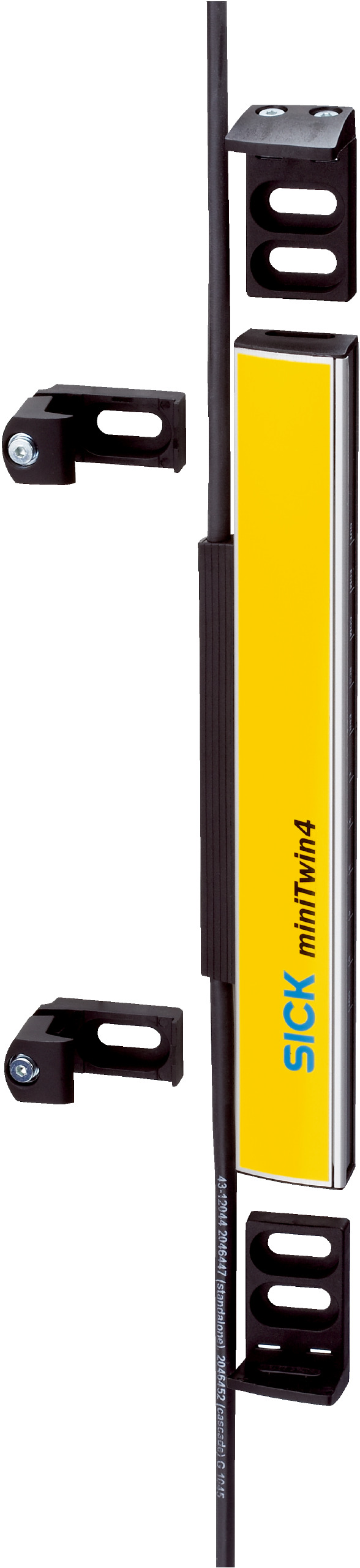

Twin-Stick Safety Light Curtain | 14 mm Resolution | 720 mm Protective Field Height | Type 4 Safety | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial automation safety, featuring a 14 mm resolution and a protective field height of 720 mm. Ideal for machine safeguarding and cascade systems, it offers optical synchronization and a response time of ≤ 14 ms, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range minimum: 0 m to 4 m
- Scanning range typical: 0 m to 5 m
- Protective field height: 720 mm
- Response time: ≤ 14 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock: Yes
- External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin, 700 mm cable
- Extension connection: Female connector M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 255 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 720mm x 15mm
- Weight: 0.255 kg
Key Features
- Twin-Stick system part for 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range typical 0 m to 5 m
- Protective field height of 720 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Type 4 safety (IEC 61496-1)
- SIL 3 safety integrity level (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level e
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male and female M12 5-pin connectors with 700 mm cable length
- Hard wired configuration with LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signals, short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- IP65 rated enclosure
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial automation safety
- Machine safeguarding
- Cascade systems for multi-device safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Long mission time of 20 years reduces replacement frequency
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4MT-07214ABB04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase. Ideal for industrial safety and machine safeguarding applications.
