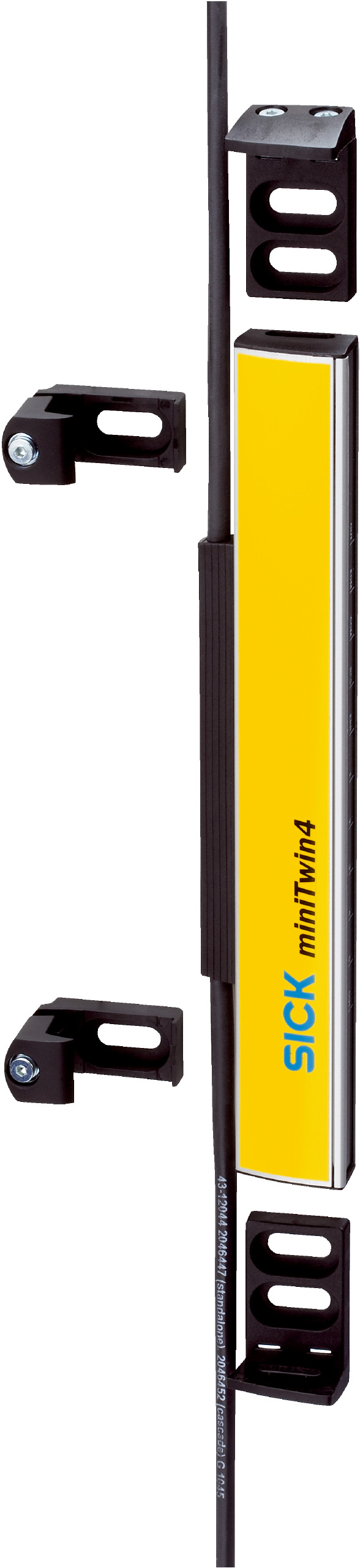

Twin-Stick Safety Light Curtain | 14 mm Resolution | 900 mm Protective Height | Type 4 Safety | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 14 mm resolution and a protective field height of 900 mm. With a scanning range of up to 5 m and a response time of ≤ 17 ms, it ensures reliable safety monitoring in machinery and automation systems. Built for durability with an IP65-rated aluminum housing, this light curtain is perfect for use in manufacturing and processing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, or middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 900 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Restart interlock and external device monitoring included
- System connection: Male M12, 5-pin, 700 mm cable
- Extension connection: Female M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal: PNP semiconductors, short-circuit and cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS - 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 320 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 900mm x 32mm x 15mm
- Weight: 0.32 kg
Key Features
- Twin-Stick system part for miniTwin4 cascades
- Mounting with C-fix or L-fix bracket
- 14 mm resolution with scanning range 0 m to 5 m
- Protective field height of 900 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization
- Type 4 safety (IEC 61496-1) with SIL 3 and Category 4 safety integrity
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male and female M12 5-pin connectors with 700 mm cable length
- Protection class III (EN 61140)
- Supply voltage 24 V DC with ≤ 3 A power consumption
- PNP semiconductor output signals with short-circuit and cross-circuit monitoring
- Aluminum alloy housing with IP65 rating
- Operating temperature range -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety for machinery and automation systems
- Use as host or middle guest in 2- or 3-device cascade miniTwin4 systems
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4MT-09014ABB04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
