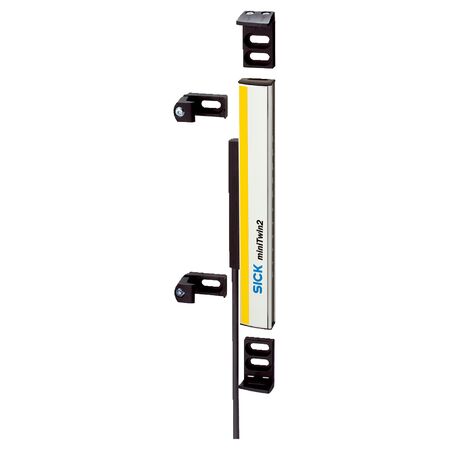

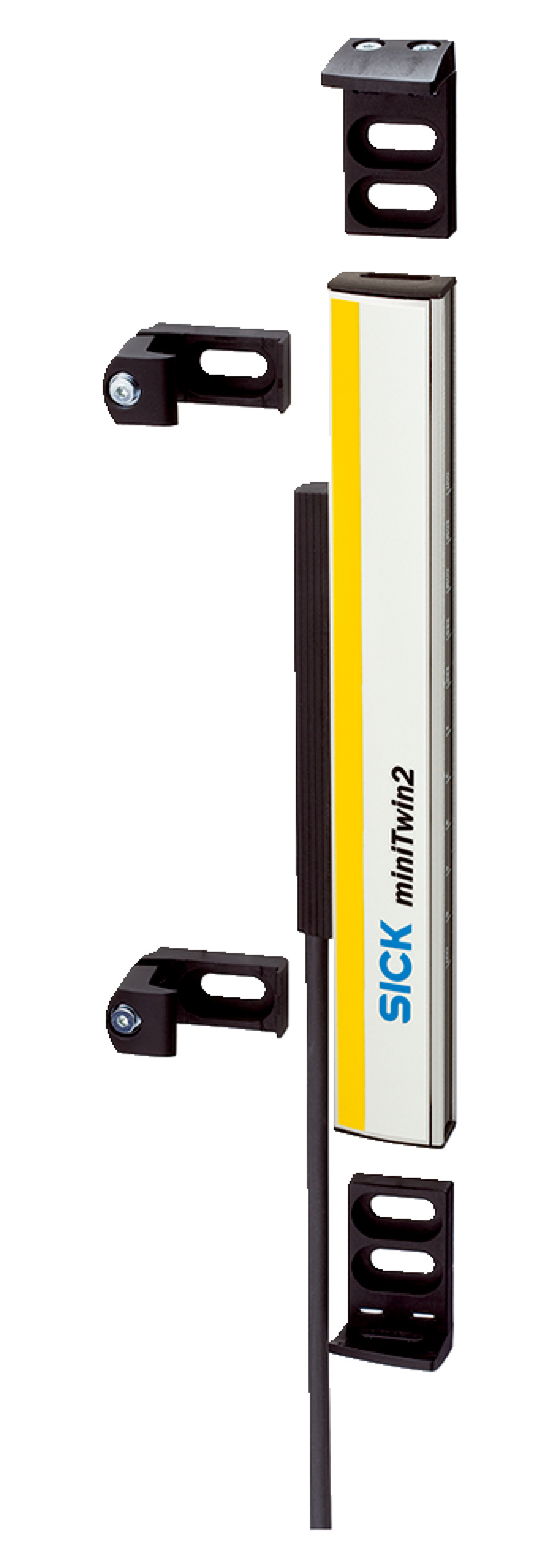

Twin-Stick Safety Light Curtain | 14 mm Resolution | 0-8 m Scanning Range | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety, featuring a scanning range of 0 to 8 m and a protective field height of 780 mm. With a response time of ≤ 17 ms and optical synchronization, it ensures reliable protection for personnel in hazardous areas. Ideal for machinery and automation applications, this safety light curtain meets Type 2 safety standards and offers robust performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Mounting system type: C-fix or L-fix bracket
- Scanning range minimum: 0 m to 6 m
- Scanning range typical: 0 m to 8 m
- Protective field height: 780 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 58 /s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- Restart interlock: Yes
- External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Conductor cross section: 0.34 mm²
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 280 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Class: 3M4 (IEC TR 60721-4-3)
- Wave length: 850 nm
- Dimensions (H x L x W): 780mm x 32mm x 15mm
- Weight: 0.28 kg
Key Features
- Twin-Stick system with 14 mm resolution
- Scanning range from 0 m to 8 m typical
- Protective field height of 780 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Type 2 safety light curtain compliant with IEC 61496-1
- Safety integrity level SIL 1 (IEC 61508)
- Category 2 (EN ISO 13849) with Performance Level PL c
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male M12 5-pin connector with 700 mm cable length
- Power supply 24 V DC with ≤ 3 A consumption
- Output signal switching devices (OSSDs) with PNP semiconductors, short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption (≤ 3 A) supports energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK C2MT-07814BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
