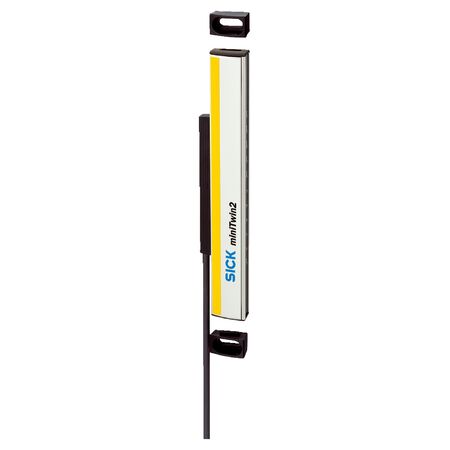

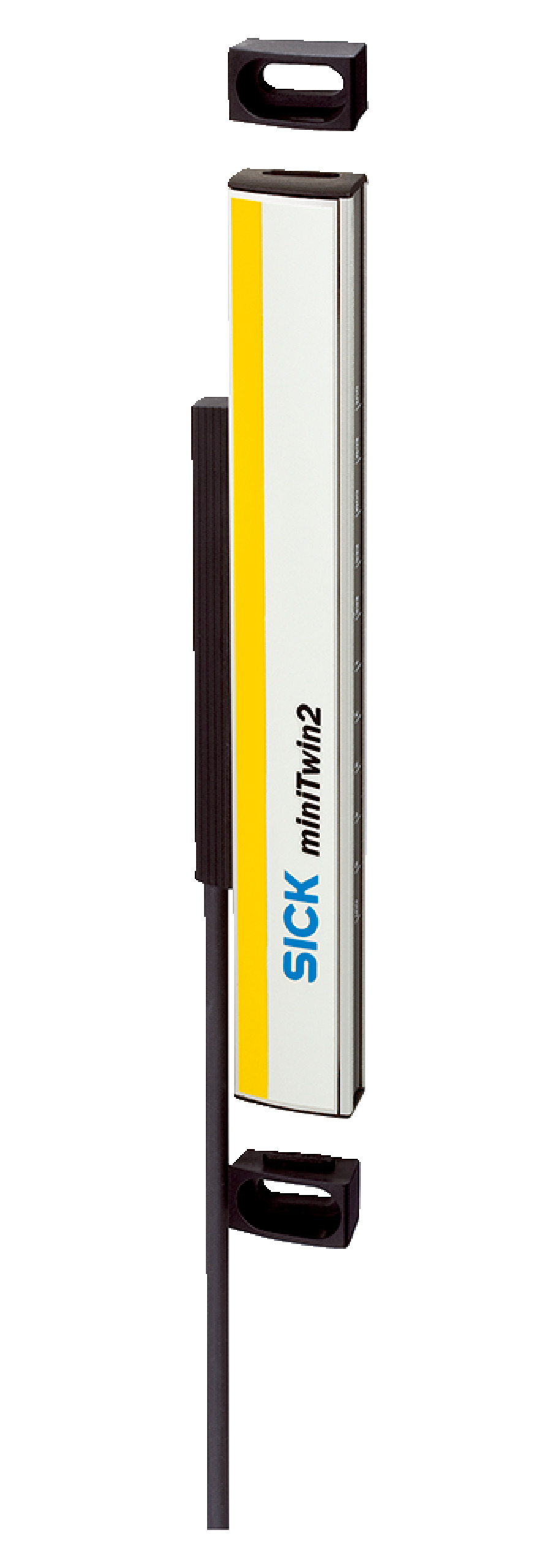

Twin-Stick Safety Light Curtain | 14mm Resolution | 660mm Protective Field | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety, featuring a 14mm resolution and a protective field height of 660mm. Ideal for safeguarding personnel in hazardous areas, this device operates with a scanning range of up to 8m and includes advanced features like optical synchronization and automatic beam coding. Built with durable aluminum housing, it ensures long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 32mm x 700mm x 15mm
- Weight: 0.235 kg
Key Features
- Twin-Stick system part with O-fix bracket mounting
- Resolution of 14 mm with scanning range 0 m to 8 m typical
- Protective field height of 660 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection with 700 mm cable
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use as a standalone miniTwin2 safety device
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-06614BBC03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
