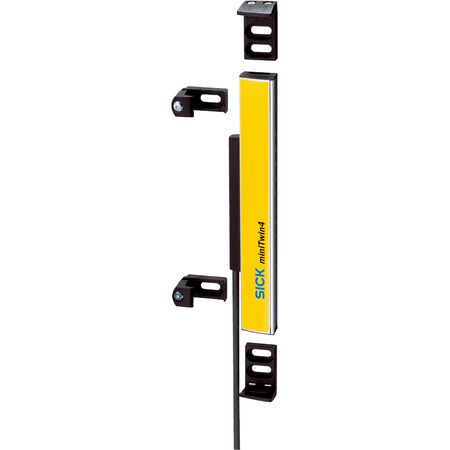

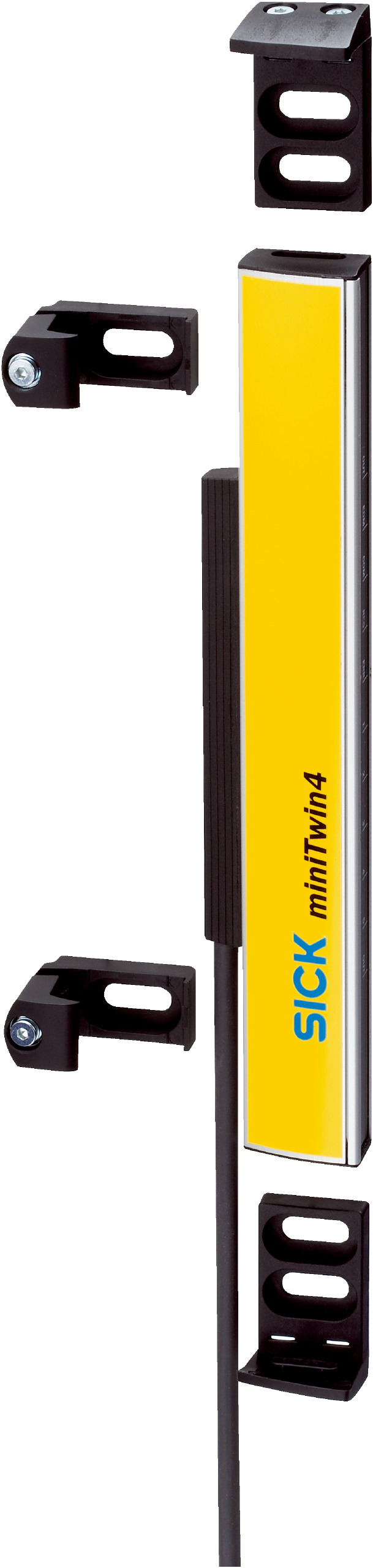

Twin-Stick Safety Light Curtain | 14 mm Resolution | Type 4 Safety | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 14 mm resolution and a protective field height of 240 mm. With a response time of ≤ 14 ms and Type 4 safety classification, it ensures reliable protection for personnel in hazardous areas. Built for durability with an IP65-rated aluminum housing, this light curtain is perfect for manufacturing plants and assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Protective field height: 240 mm
- Response time: ≤ 14 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Output type: PNP semiconductors, short-circuit protected
- Operating voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20°C to +55°C
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 95 g
- Dimensions (H x L x W): 32mm x 350mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin4 usable as standalone or in 2- or 3-device cascades
- Mounting options with C-fix or L-fix brackets
- 14 mm resolution with protective field height of 240 mm
- Response time ≤ 14 ms with optical synchronization
- Type 4 safety classification with SIL 3 and Category 4 compliance
- Restart interlock and external device monitoring included
- Automatic beam coding for secure operation
- Male M12 5-pin connector with 350 mm cable length
- Power supply 24 V DC with short-circuit protected PNP outputs
- Housing made of aluminum alloy with IP65 rating
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing plants and assembly lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Low power consumption enhances energy efficiency in industrial safety systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4MT-02414ABB03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and fast response.
