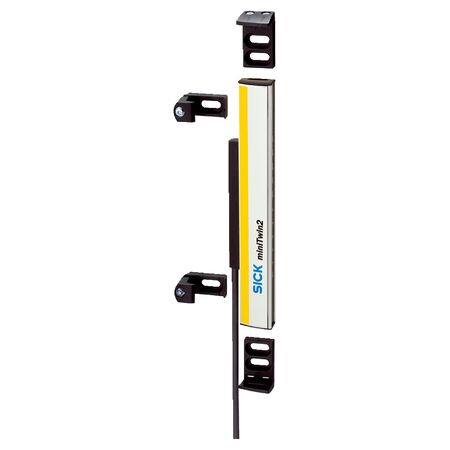

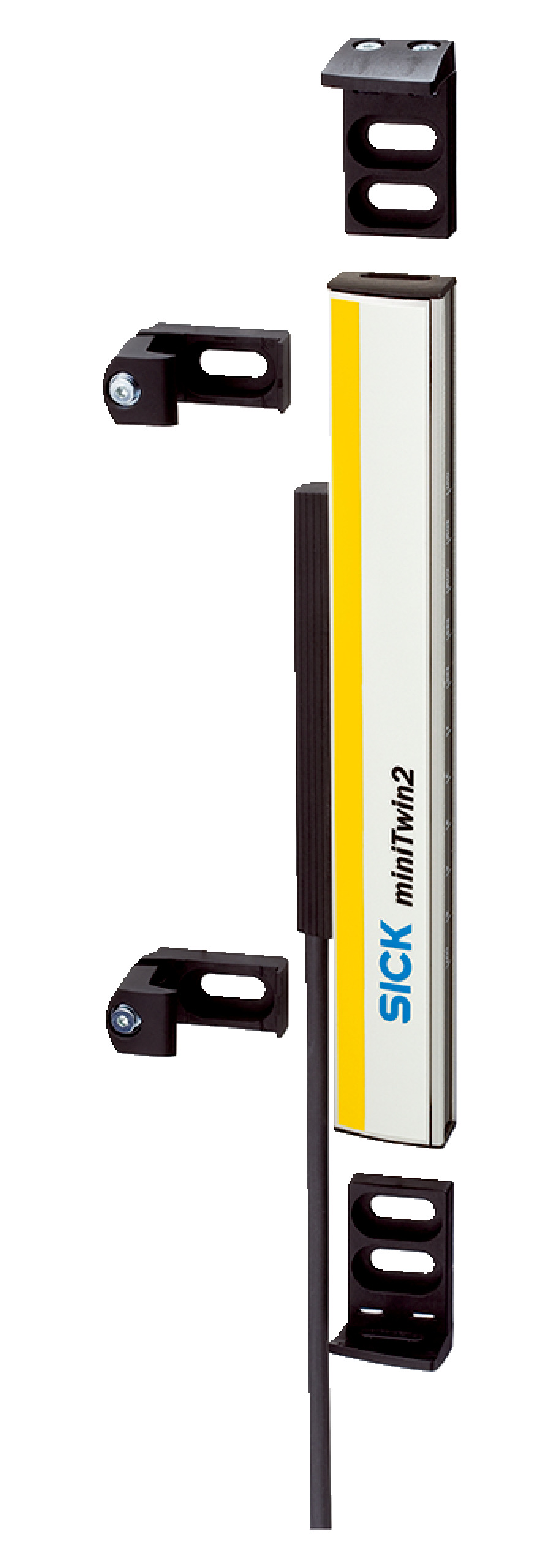

Twin-Stick Safety Light Curtain | 24 mm Resolution | 480 mm Protective Field Height | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 24 mm resolution and a protective field height of 480 mm. With a scanning range of up to 8 m and an impressive response time of ≤ 13 ms, it ensures reliable presence detection and machine safeguarding. Ideal for manufacturing and processing plants, this safety light curtain is built to meet stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 480 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 480mm x 32mm x 15mm
- Weight: 0.175 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usage as standalone or cascade device
- Mounting with C-fix or L-fix bracket
- 24 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height of 480 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Use as standalone device or in 2- or 3-device cascades
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C2MT-04824BBC03DE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring reliable presence detection and machine safeguarding.
