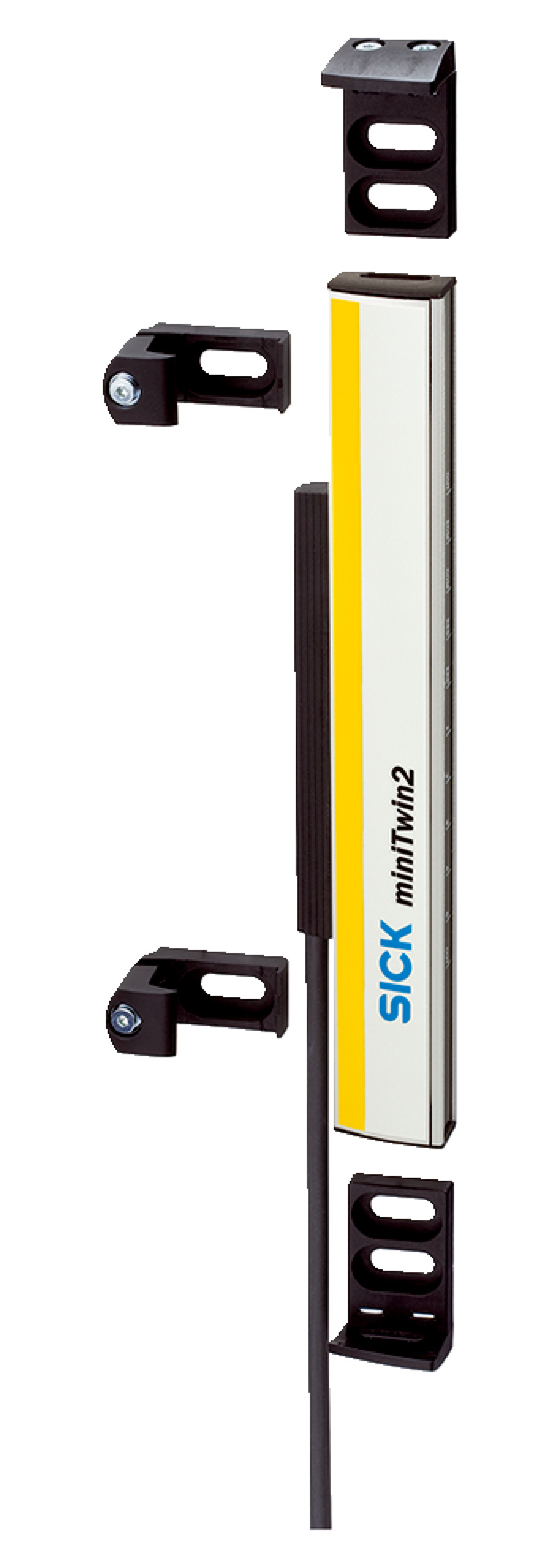

Twin-Stick Safety Light Curtain | 24 mm Resolution | 660 mm Protective Field Height | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 24 mm resolution and a protective field height of 660 mm. With a scanning range of up to 8 m and an impressive response time of ≤ 13 ms, it ensures reliable presence detection and machine safeguarding. Built for durability with an IP65 rating, this safety sensor is ideal for manufacturing and processing plants, providing essential monitoring and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 660 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, no separate synchronization needed
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 660mm x 32mm x 15mm
- Weight: 0.235 kg
Key Features
- Twin-Stick system with 24 mm resolution
- Scanning range typical 0 m to 8 m, minimum 0 m to 6 m
- Protective field height of 660 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male M12 5-pin connector with 700 mm cable length
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices (OSSDs), short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation
- Use as standalone device or in 2- or 3-device cascades
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Non-contact sensing reduces mechanical wear and maintenance
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

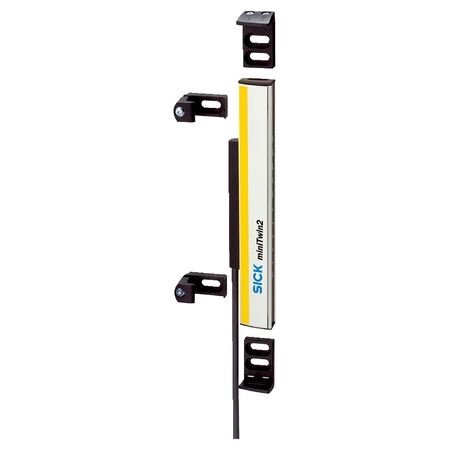

The SICK C2MT-06624BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring reliable presence detection and machine safeguarding.
