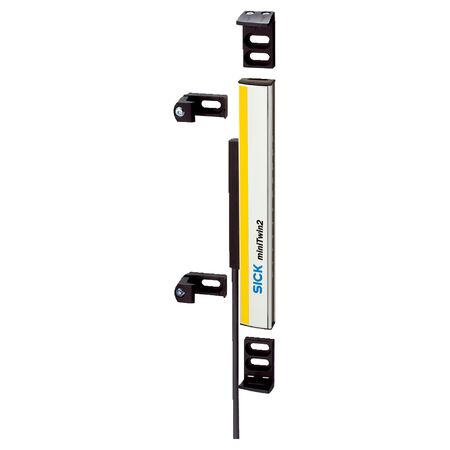

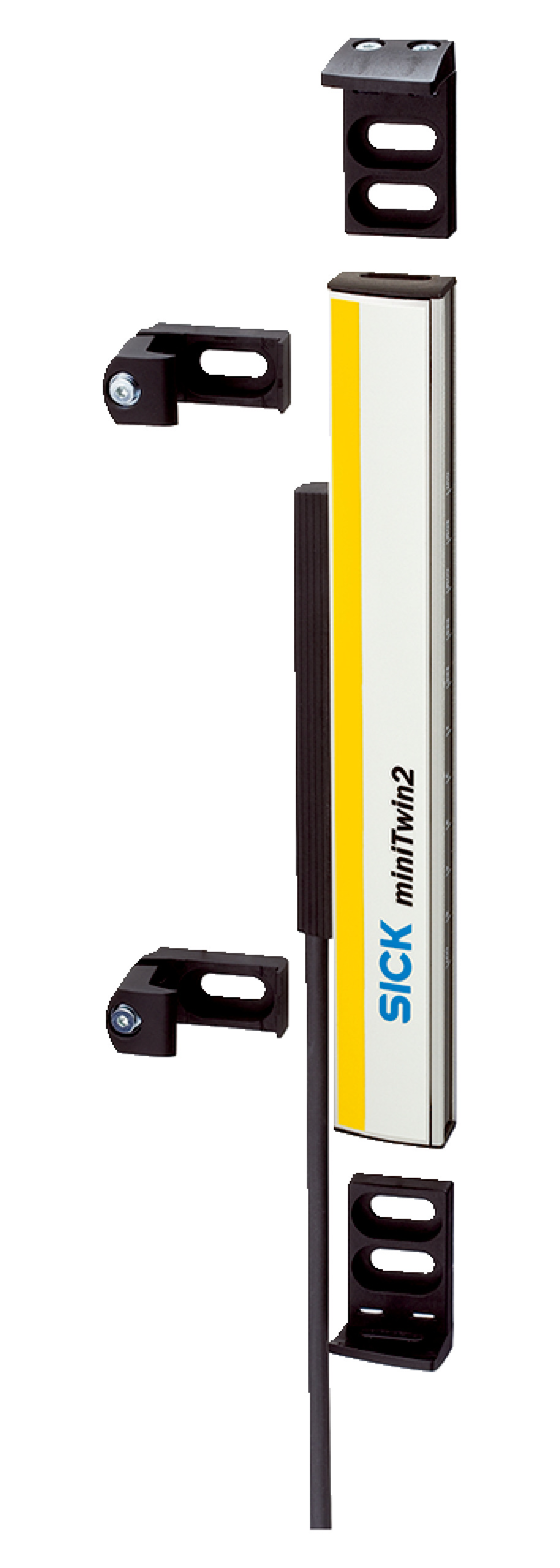

Twin-Stick Safety Light Curtain | 24 mm Resolution | 8 m Scanning Range | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 24 mm resolution and a scanning range of up to 8 m. Ideal for protecting personnel in hazardous areas, this safety sensor operates with a response time of ≤ 13 ms and offers flexible mounting options. Built for durability with an IP65 rating, it ensures reliable performance in manufacturing and automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 180 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58 per second
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 32mm x 160mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin2 usable as standalone or in 2- or 3-device cascades
- Mounting options with C-fix or L-fix brackets
- Resolution of 24 mm with scanning range up to 8 m
- Protective field height of 180 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signal switching devices (OSSDs)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtains and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing plants and automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum housing reduces material waste and extends product life
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK C2MT-01824BBC03BE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
