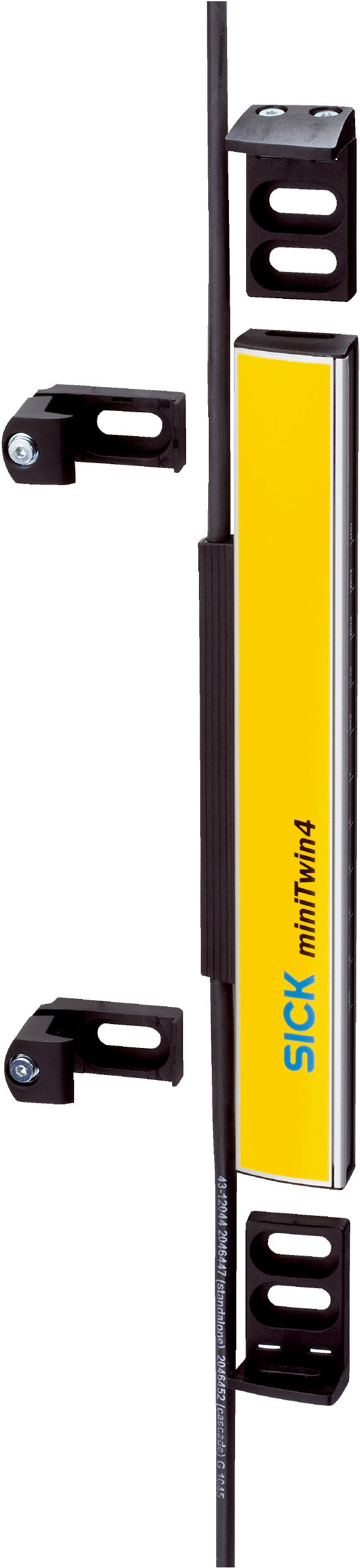

Twin-Stick Safety Light Curtain | 24 mm Resolution | 1200 mm Protective Height | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 24 mm resolution and a protective field height of 1200 mm. With a rapid response time of ≤ 13 ms and optical synchronization, it ensures reliable protection for personnel in hazardous areas. Ideal for manufacturing and automation, this safety light barrier is built to withstand harsh environments with an IP65 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as host for 2- or 3-device cascade, miniTwin4 as middle guest for 3-device cascade
- Resolution: 24 mm
- Scanning range minimum: 0 m to 4 m, typical 0 m to 5 m
- Protective field height: 1,200 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Extension connection: Female connector M12, 5-pin, 700 mm cable length
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section (incl. system connection): 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 420 g
- Enclosure rating: IP65 (EN 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 1200mm x 32mm x 15mm
- Weight: 0.42 kg
Key Features
- Twin-Stick system part for 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 24 mm
- Protective field height of 1,200 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male and female M12, 5-pin connectors with 700 mm cable length
- Hard wired configuration with LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signals, short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65 (EN 60529)
- Operating temperature range -20 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4MT-12024ABB04FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
