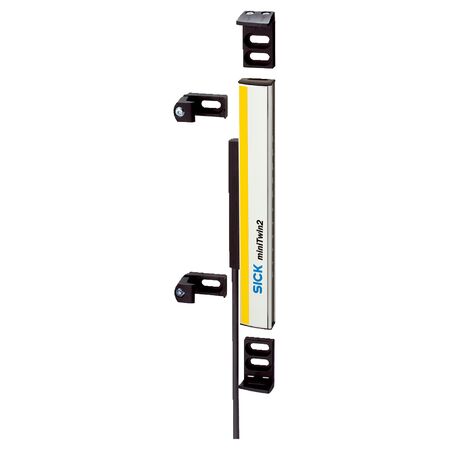

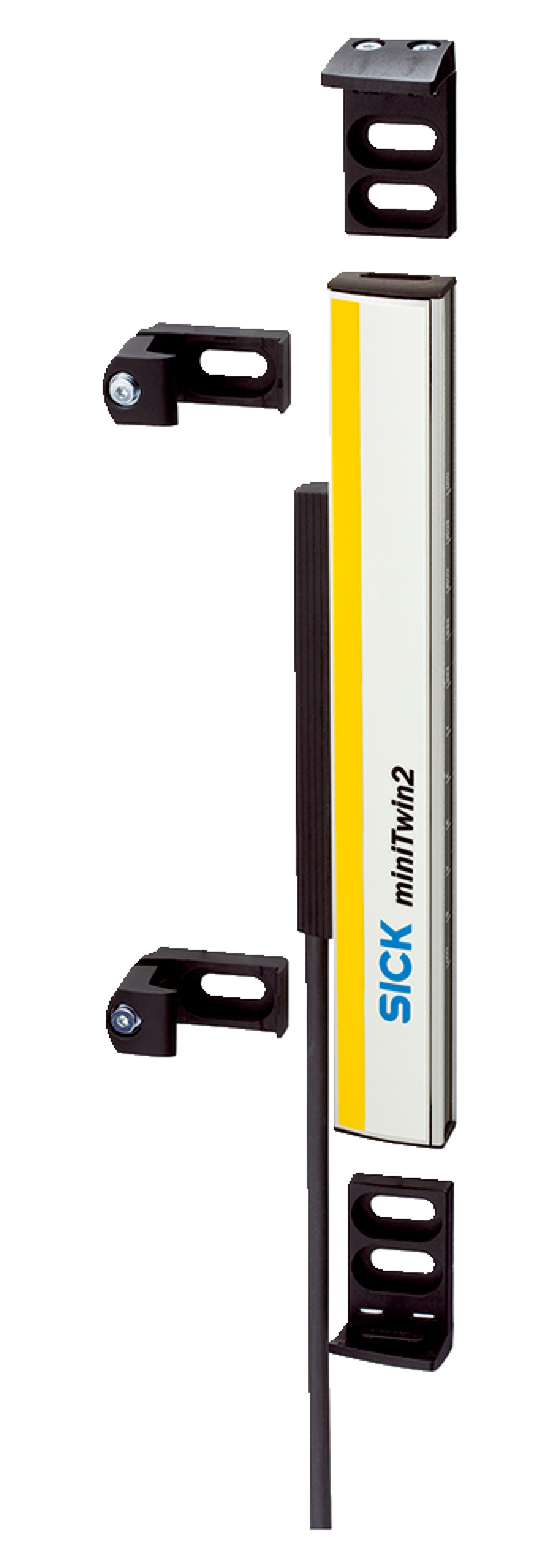

Twin-Stick Safety Light Curtain | 24mm Resolution | 1200mm Protective Height | IP65 Rated | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety applications, featuring a 24mm resolution and a protective field height of 1200mm. With a scanning range of up to 8m and an optical synchronization system, it ensures reliable personnel protection in hazardous areas. Ideal for manufacturing and automation, this safety light curtain is built to withstand tough environments with its IP65 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or cascade with 2-3 devices
- Mounting system: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 1,200 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate device
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Switching voltage ON: 24 V DC (VS – 2.25 V DC ... VS)
- Switching voltage OFF: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Weight: 420 g
- Housing material: Aluminum alloy ALMGSI 0.5
- Cable length: 700 mm
- Permitted cable length: ≤ 20 m
- LED display elements for status indication
- Dimensions (H x L x W): 1200mm x 32mm x 15mm
- Weight: 0.42 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin2 usable as standalone or in 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- Resolution of 24 mm with scanning range from 0 m to 8 m
- Protective field height of 1,200 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- Operating voltage 24 V DC with low ripple
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics reduces energy use
- Durable aluminum alloy housing extends product life and reduces waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C2MT-12024BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
