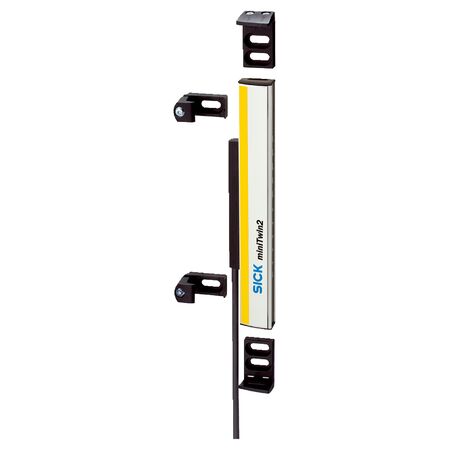

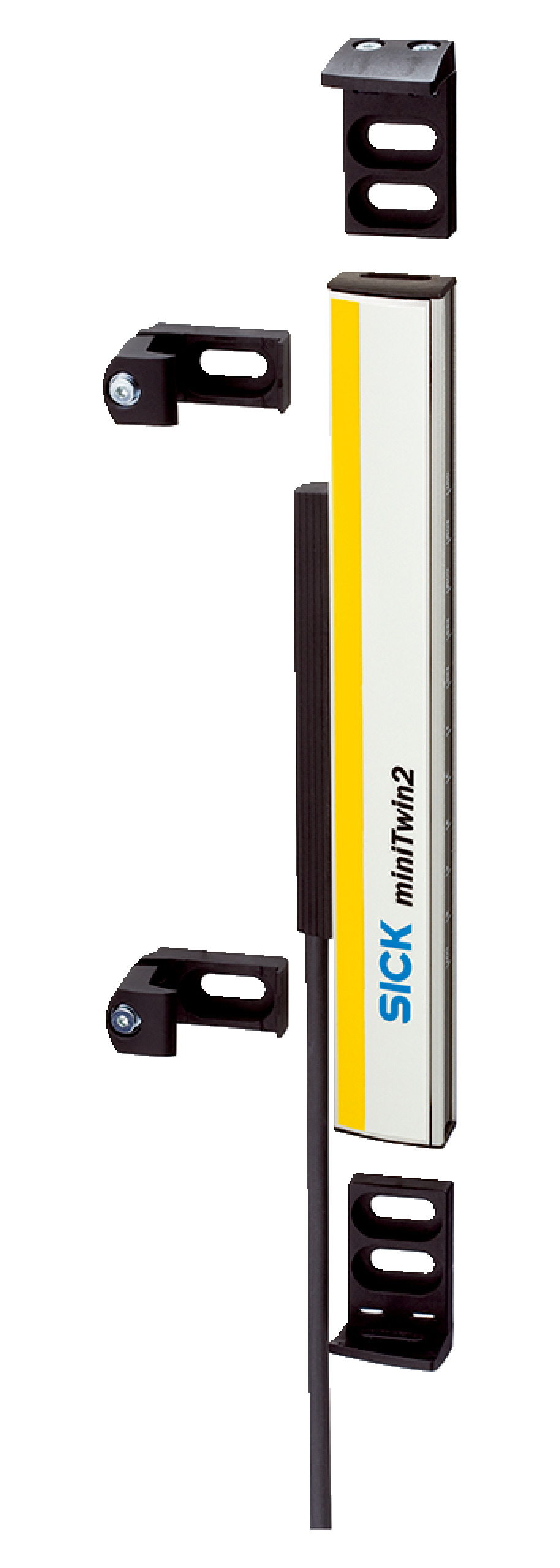

Twin-Stick Safety Light Curtain | 34 mm Resolution | 660 mm Protective Field Height | Optical Synchronization | by SICK
The Twin-Stick Safety Light Curtain is designed for industrial safety, featuring a 34 mm resolution and a protective field height of 660 mm. With a scanning range of up to 8 m and an impressive response time of ≤ 13 ms, it ensures optimal protection for personnel in hazardous areas. Ideal for standalone or cascade configurations, this safety solution is built for reliability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 660 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Male M12, 5-pin connector
- Cable length: 700 mm
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 660mm x 32mm x 15mm
- Weight: 0.235 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin2 usable as standalone or in 2- or 3-device cascades
- Mounting options with C-fix or L-fix brackets
- Resolution of 34 mm with scanning range up to 8 m
- Protective field height of 660 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signal switching devices (OSSDs)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in standalone or cascade device configurations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing extends product life reducing waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C2MT-06634BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
